Cellular communicator G16¶

1. Description¶

Cellular communicator G16 directly connects to supported DSC, Paradox, UTC Interlogix (CADDX), Innerrange, Texecom, Honeywell, Crow and Pyronix alarm panels.

Communicator transmits full event information to the Central Monitoring Station.

Communicator also works with Protegus application. With Protegus users can control their alarm system remotely and get notifications about security system events. Protegus app is compatible with all security alarm panels from various manufacturers that are supported by the G16 communicator. Communicator can transmit event notifications to the Central Monitoring Station and work with Protegus simultaneously.

Communicator G16 can connect directly to DSC®, Paradox®, UTC Interlogix® (CADDX), Innerrange®, Texecom®, Honeywell®, Crow® and Pyronix® control panels. For panels from other manufacturers use the G16T communicator.

1.1 Features¶

Sends events to monitoring station receiver:

• Sends events to TRIKDIS software or hardware receivers that work with any monitoring software.

• Can send event messages to SIA DC-09 receivers.

• Can send event messages to SUR-GARD receivers. The annex has a table for converting Contact ID codes to SIA codes.

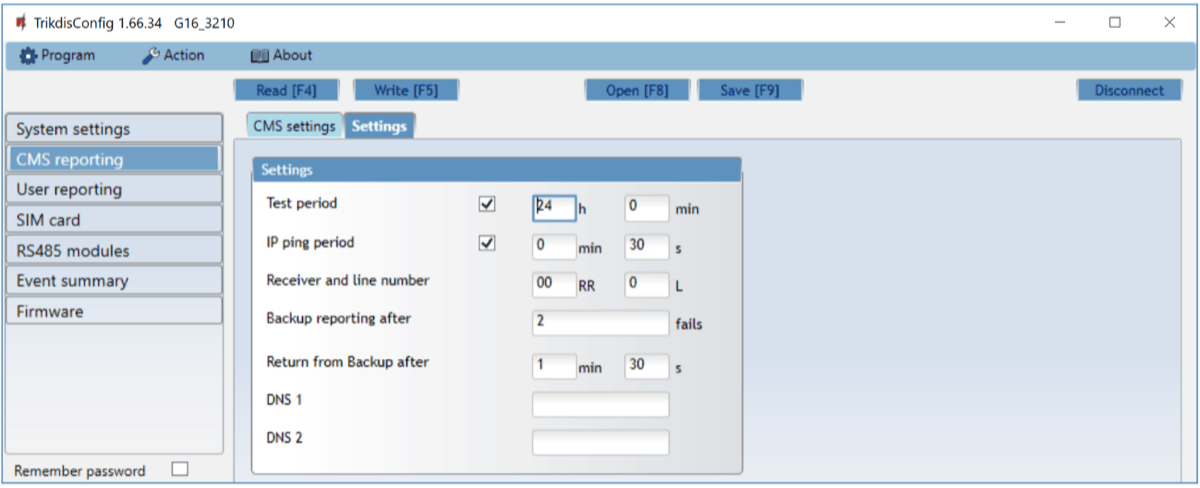

• Connection supervision by polling to IP receiver every 30 seconds (or by user defined period).

• Backup channel, that will be used if connection with the primary channel is lost.

• Events can be reported to CMS with SMS messages. SMS will be sent even if data connection stops working in the mobile operator network.

• With parallel communication channels events can be sent to two receivers at same time.

• When Protegus service is enabled, events are first delivered to CMS, and only then are sent to app users.

Works with Protegus app:

• “Push” and special sound notifications informing about events.

• Remote system Arm/Disarm.

• Remote control of connected devices (lights, gates, ventilation systems, heating, sprinklers, etc.).

• Remote temperature monitoring (with iO or iO-WL expanders).

• Different user rights for administrator, installer and user.

• Users can also be informed about events with SMS messages and phone calls.

Notifies users:

• Users can be notified about events not only with Protegus app, but also with SMS messages and a call.

Controllable outputs and inputs:

• 1 output, controlled via:

• Protegus app.

• SMS message.

• 2 inputs, selectable type: NC; NO; NC/EOL; NO/EOL; NC/DEOL; NO/DEOL.

• Add additional inputs and controllable outputs with wired and wireless iO expanders.

Quick setup:

• Settings can be saved to file and quickly written to other communicators.

• Two access levels for configuring the device for CMS administrator and for installer.

• Remote configuration and firmware updates.

1.2 List of compatible control panels¶

*Underlined - Control panels directly controlled by G16. Firmware PARADOX security panels, which are directly controlled, must be V.4 or higher.

*Connect control panels from other manufacturers to the G16T communicator.

1.3 Communicator model types¶

This manual applies to these G16 models:

• G16_321x – 3 version, 1 SIM, 2G modem

• G16_331x – 3 version, 1 SIM, 3G modem

• G16_341x – 3 version, 1 SIM, 4G modem

• G16_3M10 – 3 version, 1 SIM, LTE CatM1 & EGPRS modem.

1.4 Specifications¶

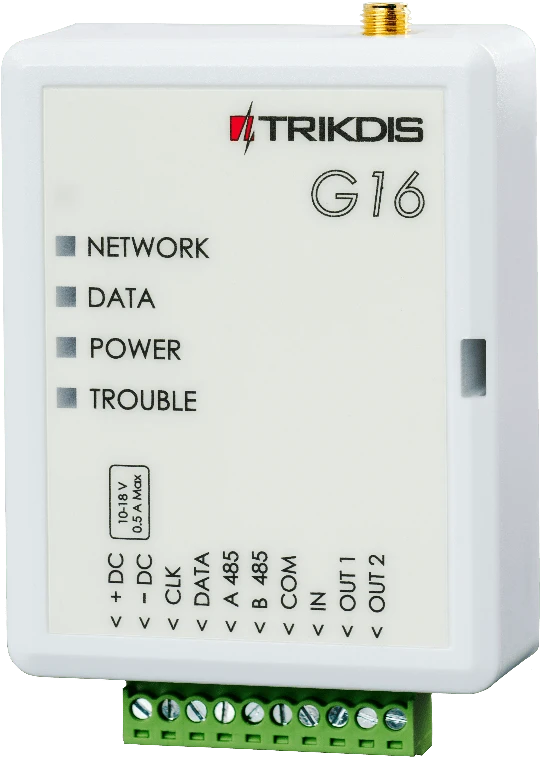

1.5 Communicator elements¶

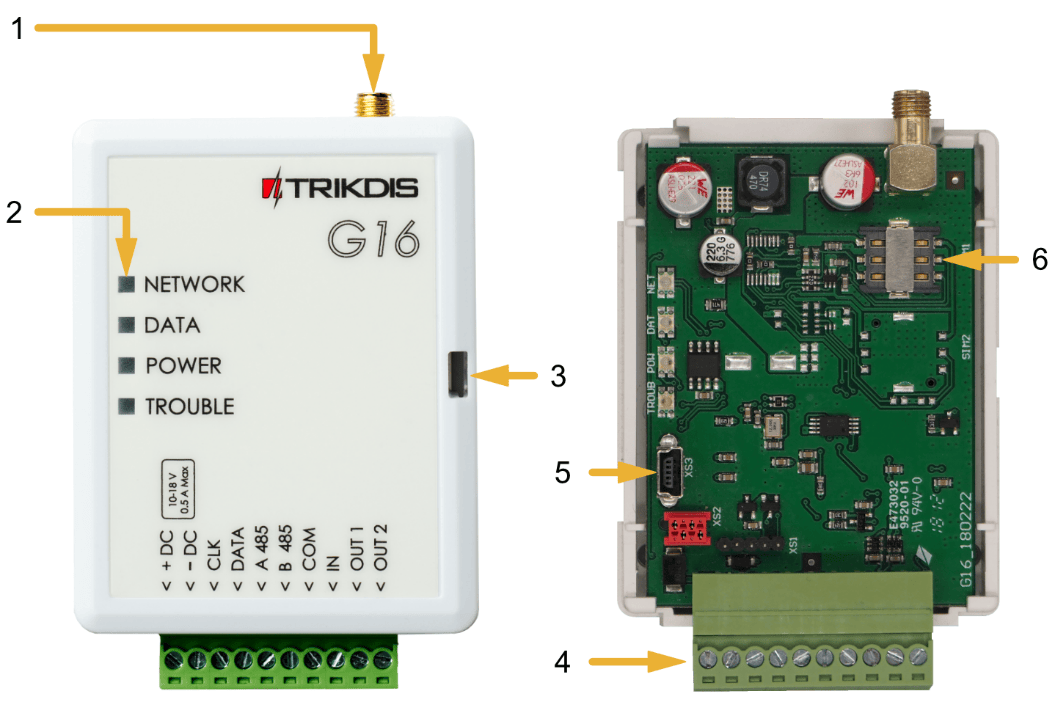

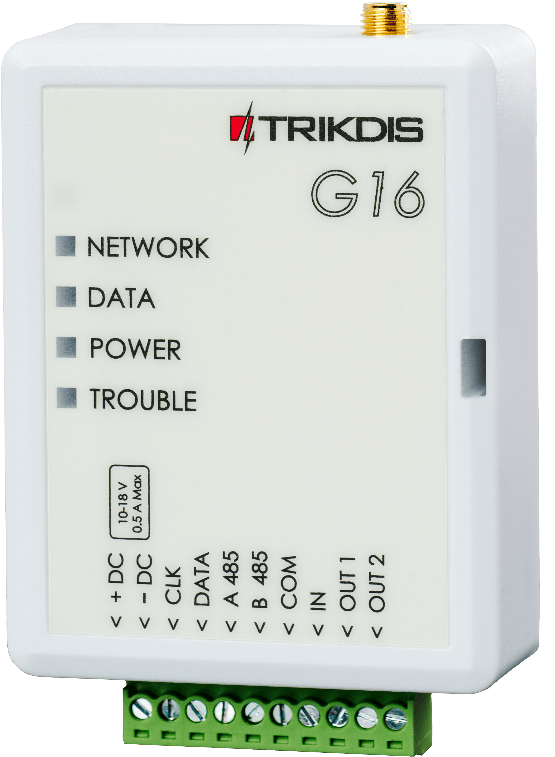

1. Cellular antenna SMA connector

2. Light indicators

3. Frontal case opening slot

4. Terminal for external connections

5. USB Mini-B port for communicator programming

6. SIM card slot

1.6 Purpose of terminals¶

1.7 LED indication of operation¶

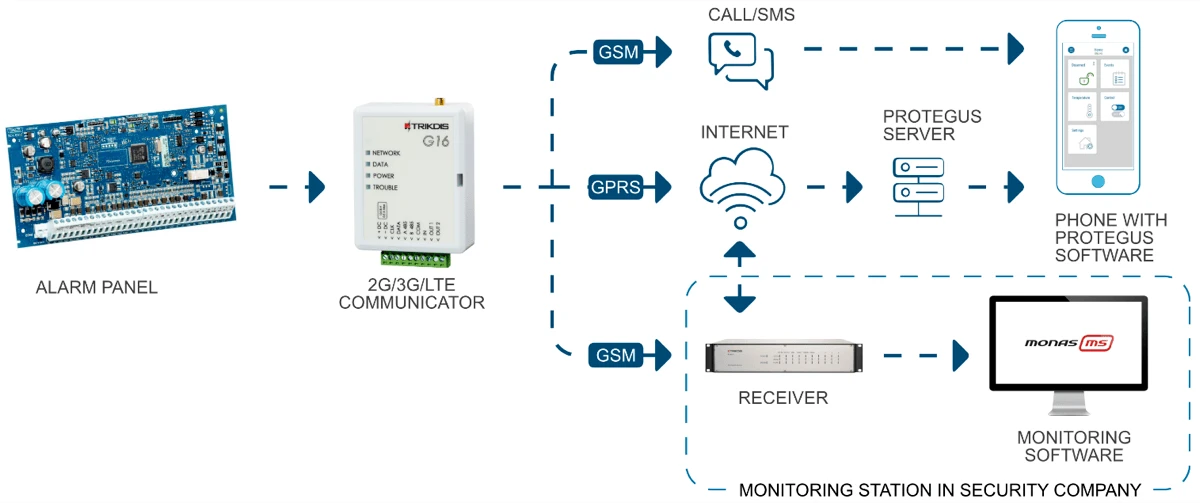

1.8 Structural schematic with G16 usage¶

2. Quick configuration with TrikdisConfig software¶

1. Download TrikdisConfig configuration software from www.trikdis.com (type “TrikdisConfig” in the search field) and install it.

2. Open the casing of the G16 with a flat-head screwdriver as shown below:



3. Using a USB Mini-B cable connect the G16 to the computer.

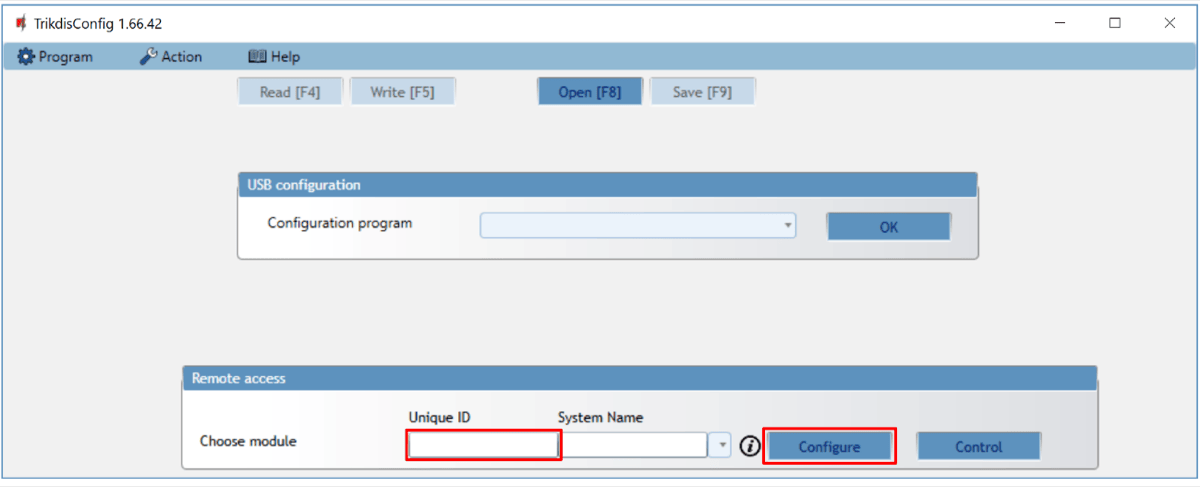

4. Run TrikdisConfig. The software will automatically recognize the connected communicator and will open a window for configuration.

5. Click Read [F4] to read the communicator’s settings. If requested, enter the Administrator or Installer 6-digit code in the pop-up window.

Below we describe what settings need to be set for the communicator to begin sending events to the Alarm Receiving Center and to allow the security system to be controlled with the Protegus app.

2.1 Settings for connection with Protegus app¶

In “System settings” window:

1. Select Panel type that will be connected to the communicator.

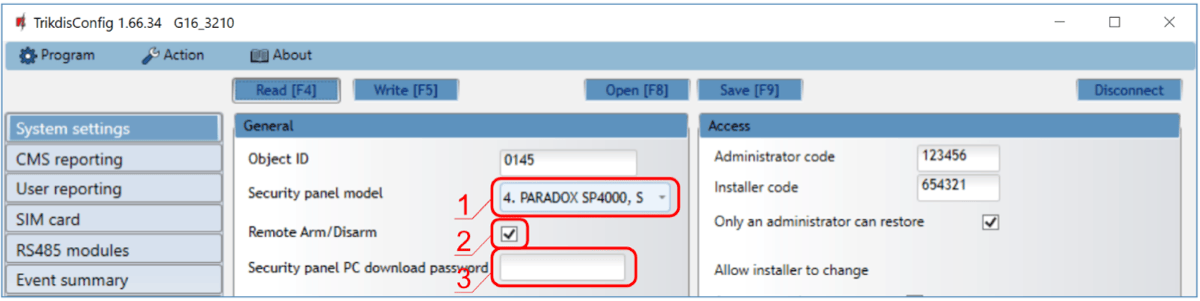

2. Select Remote Arm/Disarm if you want users to be able to control the panel in Protegus app with their keypad code. This setting is only shown for directly controlled panels.

3. For the direct control of Paradox and Texecom panels enter Panel PC download password. It must match the password that is entered in the control panel.

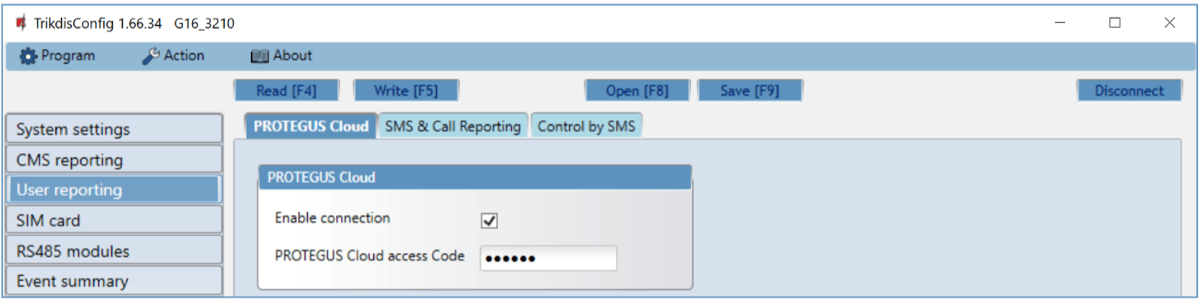

In “User reporting” window, “PROTEGUS Cloud” tab:

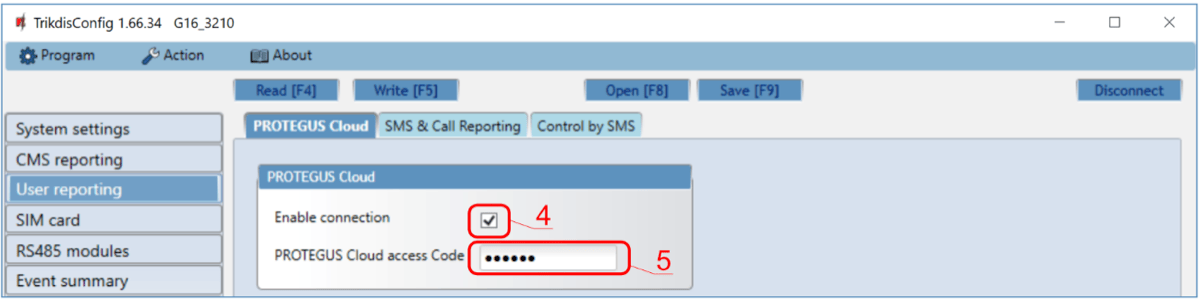

4. Tick the checkbox Enable connection to the Protegus Cloud.

5. Change the Protegus Cloud access Code for logging in to Protegus if you want users to be asked to enter it when adding the system to Protegus app (default password – 123456).

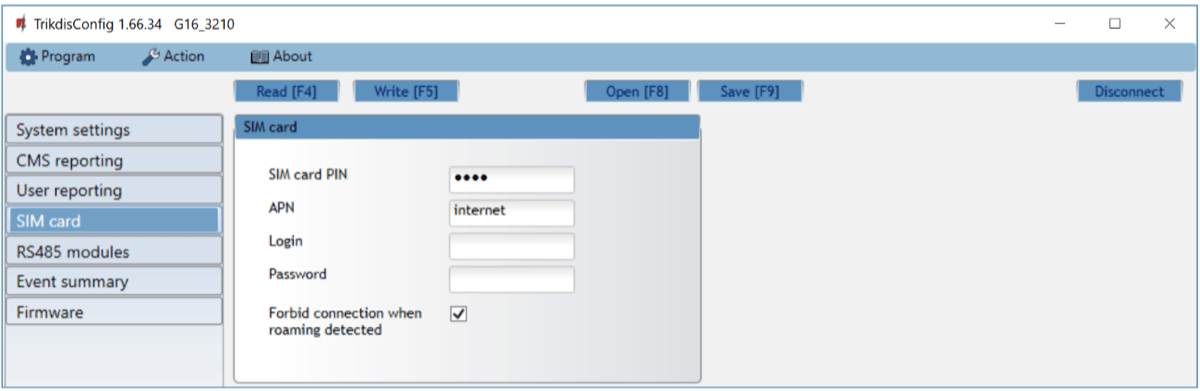

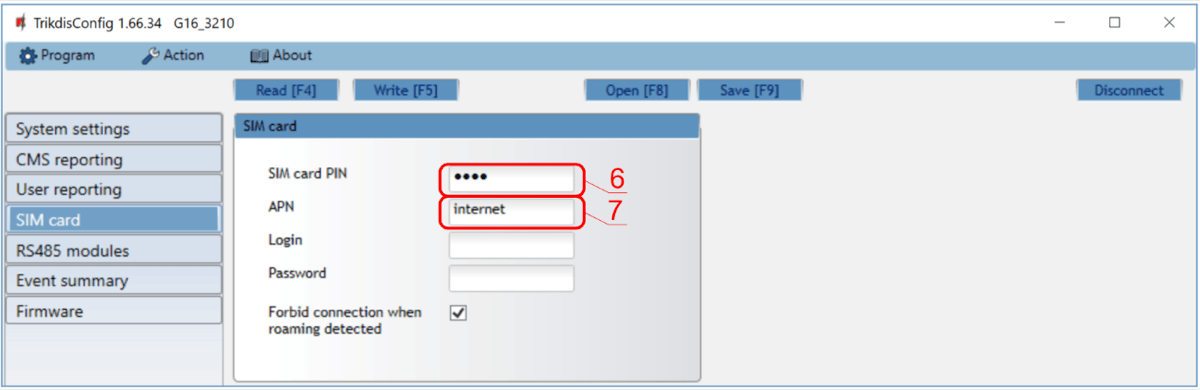

In “SIM card” window:

3. Enter SIM card PIN code.

4. Change APN name. APN can be found on the website of the SIM card operator (“internet” is universal and works in many operator networks).

After finishing configuration, click the button Write [F5] and disconnect the USB cable.

2.2 Settings for connection with Central Monitoring Station¶

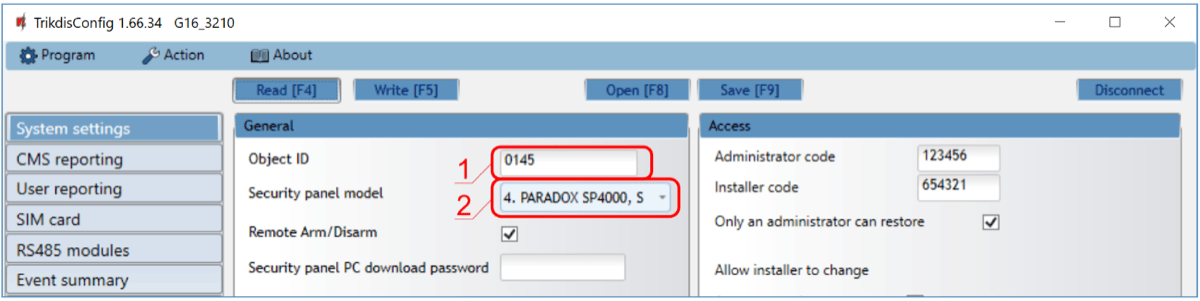

In “System settings” window:

1. Enter Object ID (account) number provided by the Central Monitoring Station (4 characters, 0-9, A-F. Do not use FFFE, FFFF Object ID).

2. Select Panel type that will be connected to the communicator.

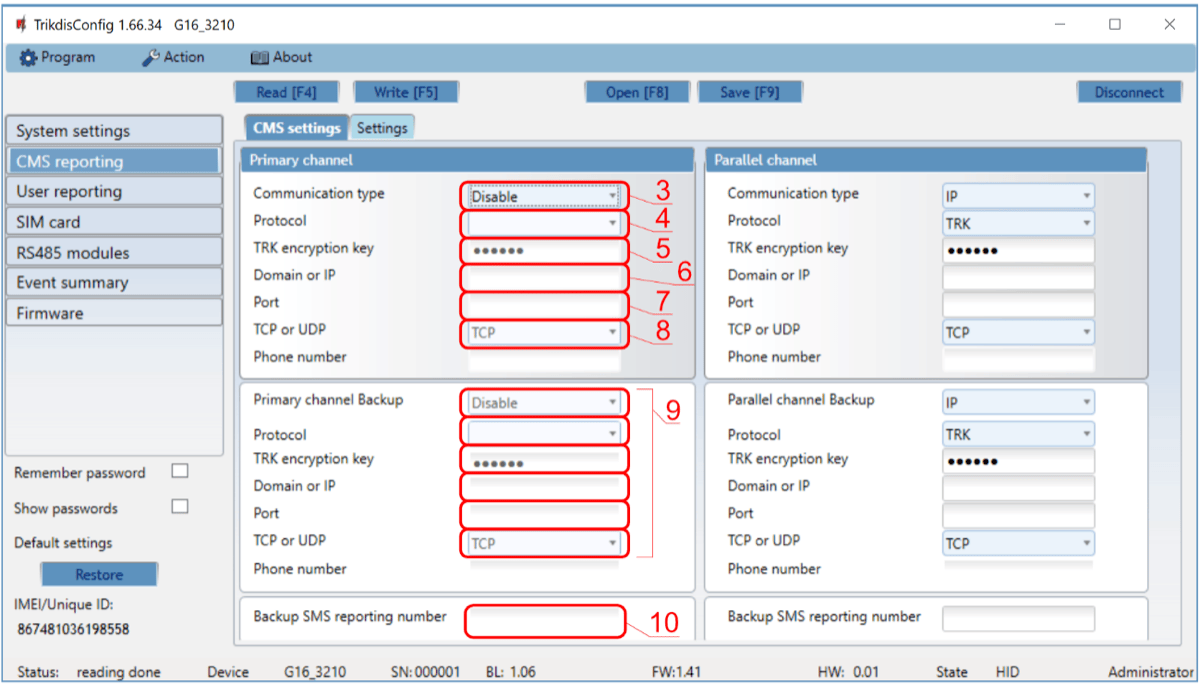

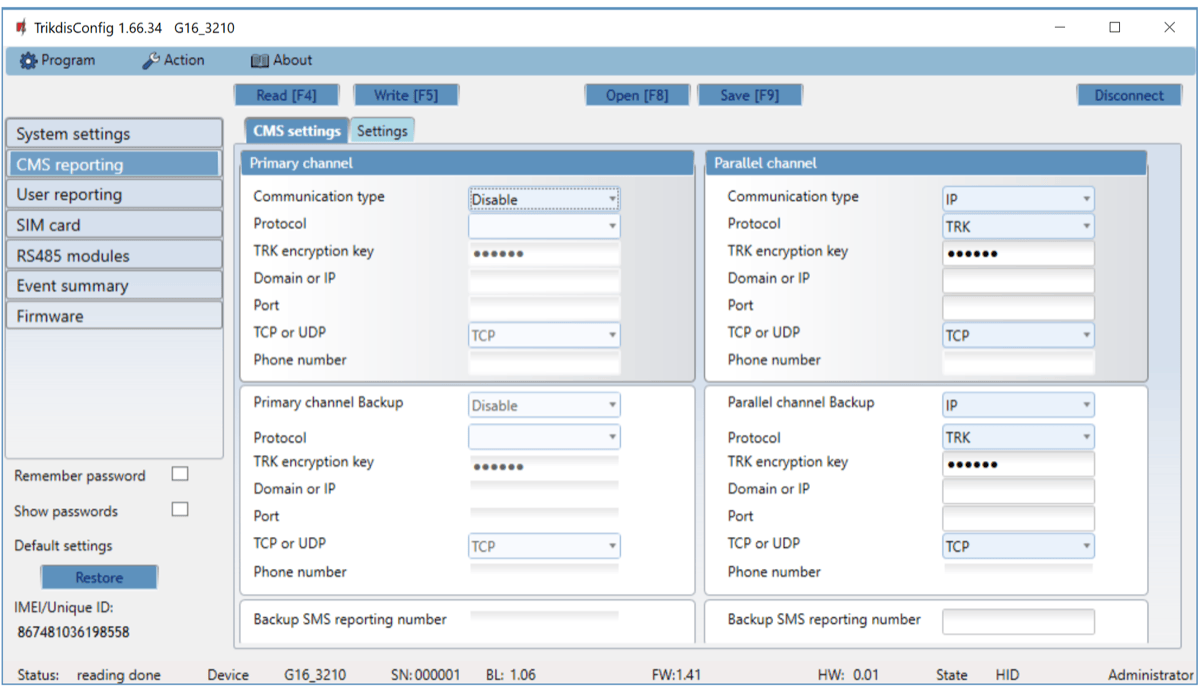

In “CMS reporting” window settings for “Primary channel”:

3. Communication type - select the IP connection method (We do not recommend SMS as the primary channel).

4. Protocol - select the protocol type for event messages: TRK (to TRIKDIS receivers), DC-09_2007 or DC-09_2012 (to universal receivers), TL150 (to SUR-GARD receivers).

5. TRK encryption key - enter the encryption key that is set in the receiver.

6. Domain or IP - enter the receiver’s Domain or IP address.

7. Port - enter receiver’s network port number.

8. TCP or UDP - choose event transmission protocol (TCP or UDP) in which events should be sent.

7. (Recommended) Configure Primary channel Backup settings.

8. (Recommended) Enter Backup SMS reporting number.

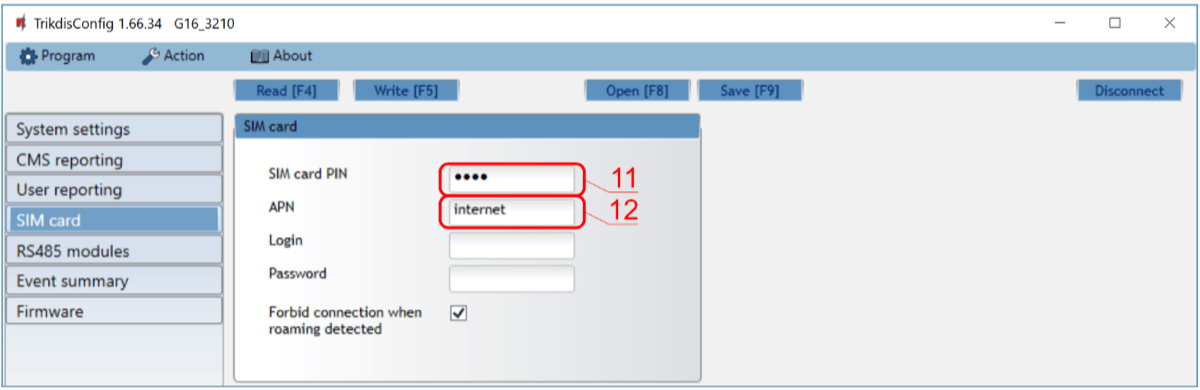

In “SIM card” window:

11. Enter SIM card PIN code.

12. Change the APN name. APN can be found on the website of the SIM card operator (“internet” is universal and works in many operator networks).

After finishing configuration, click Write [F5] and disconnect the USB cable.

3. Installation and wiring¶

3.1 Installation process¶

1. Remove the top cover and pull out the contact terminal.

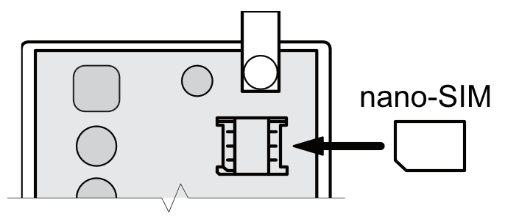

2. Insert SIM card into the holder

3. Remove the PCB board from the bottom part of the case.

4. Fix the bottom part to a suitable place with screws.

5. Place the PCB board back into case, insert contact terminal.

6. Screw cellular antenna on.

7. Close the top cover

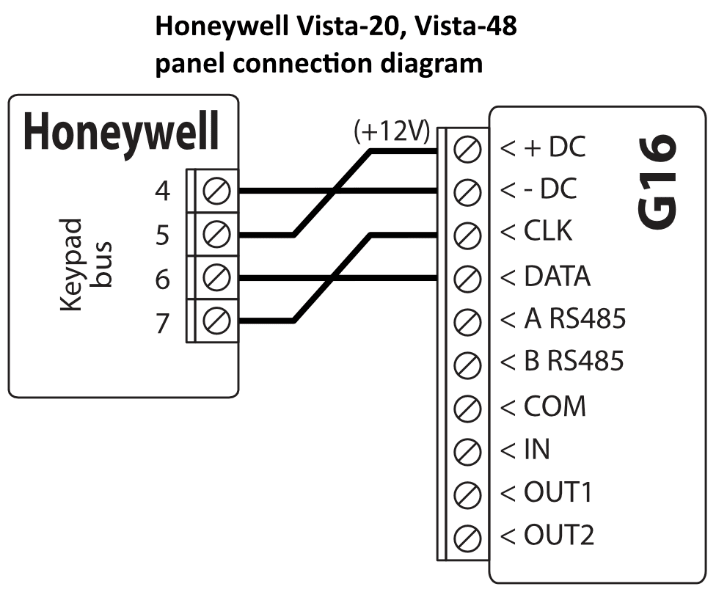

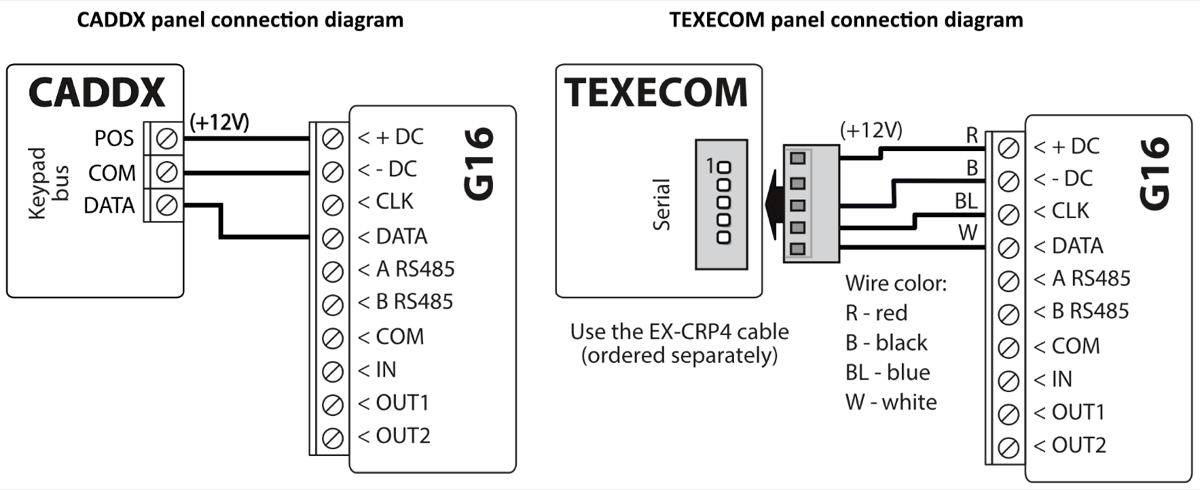

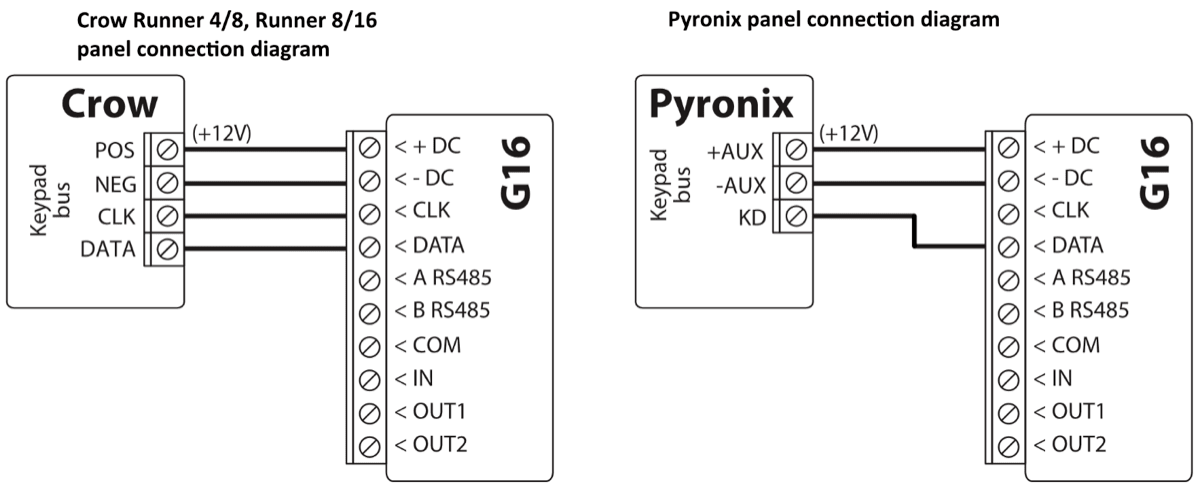

3.2 Schematics for wiring the communicator to a security control panel¶

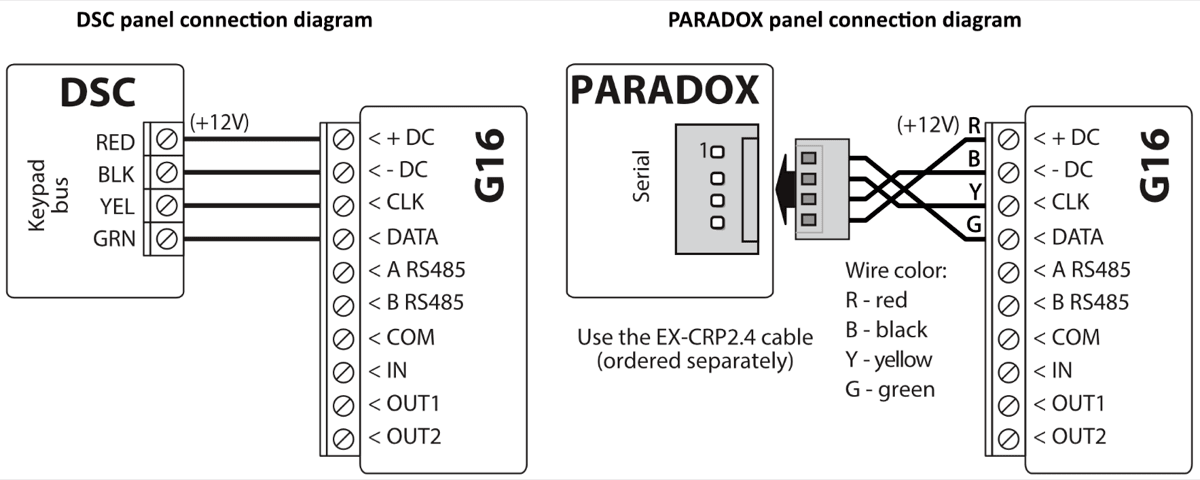

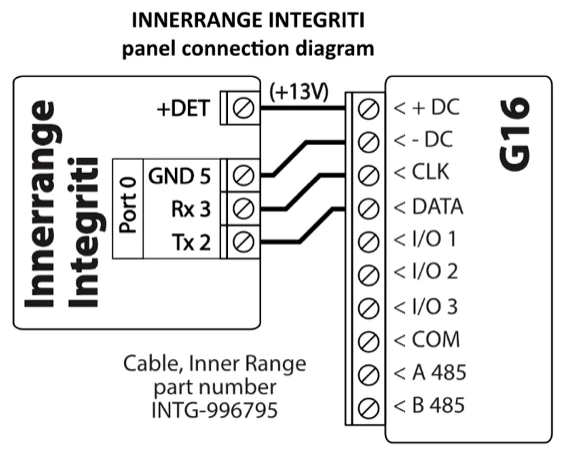

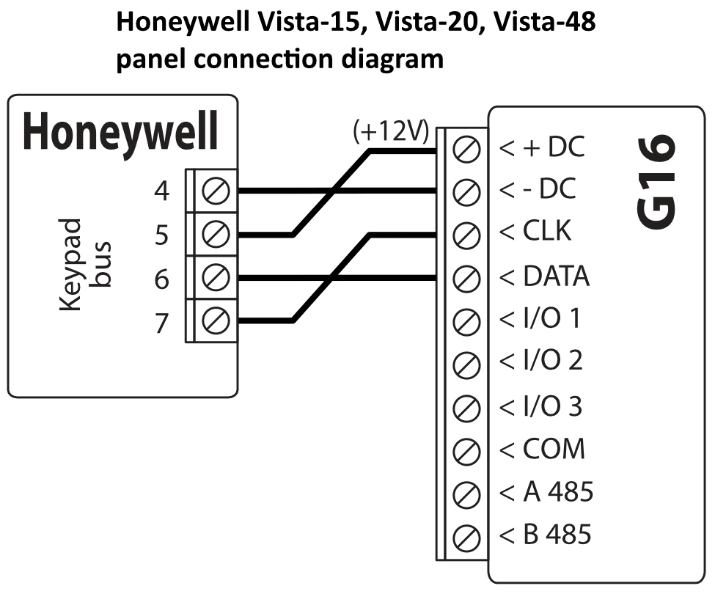

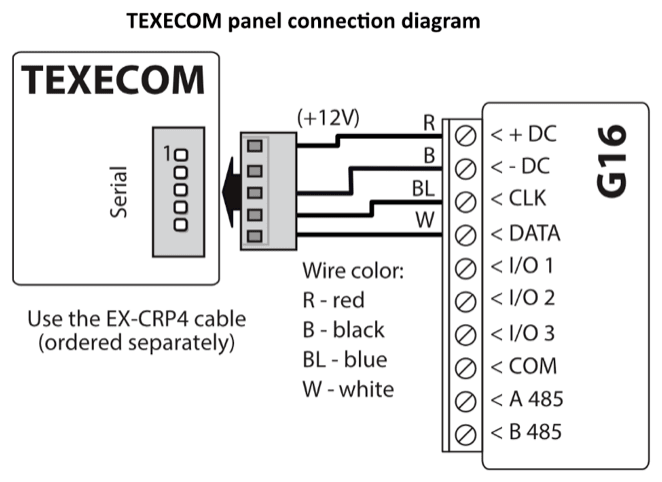

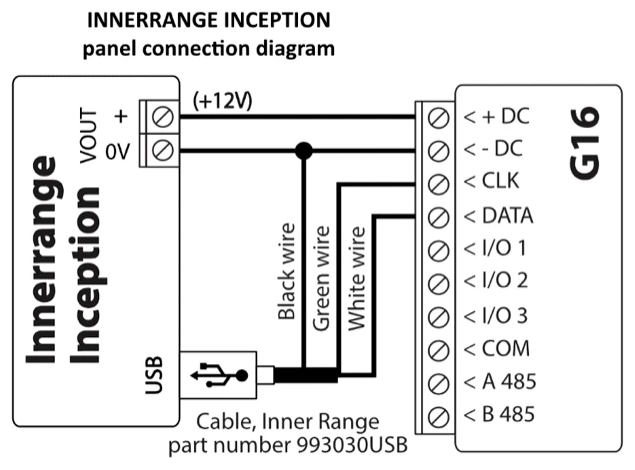

Following one of the schematics provided below, connect communicator to the control panel.

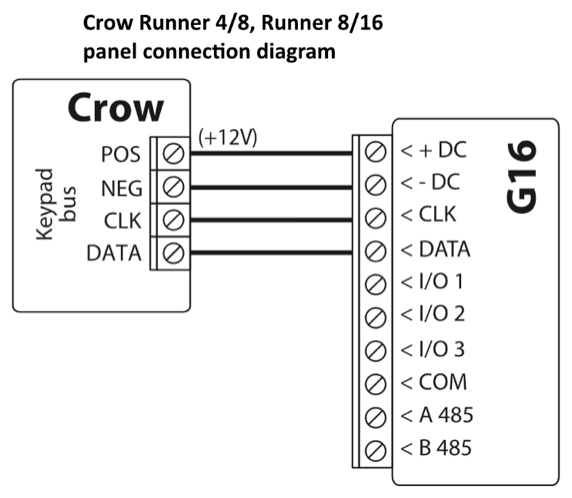

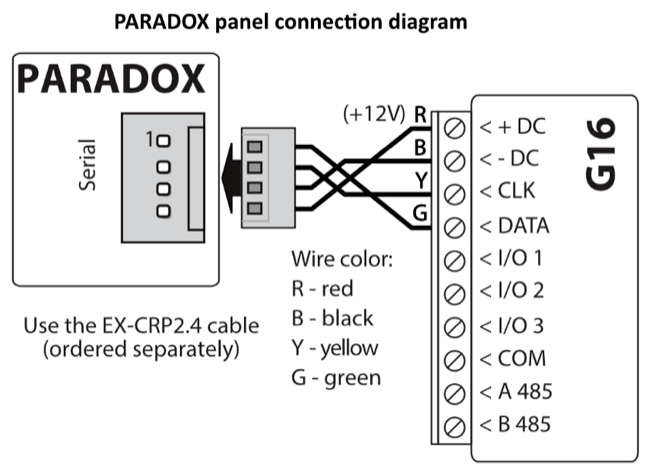

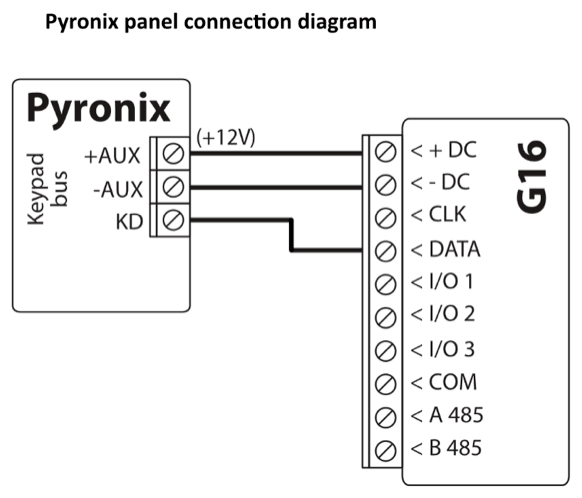

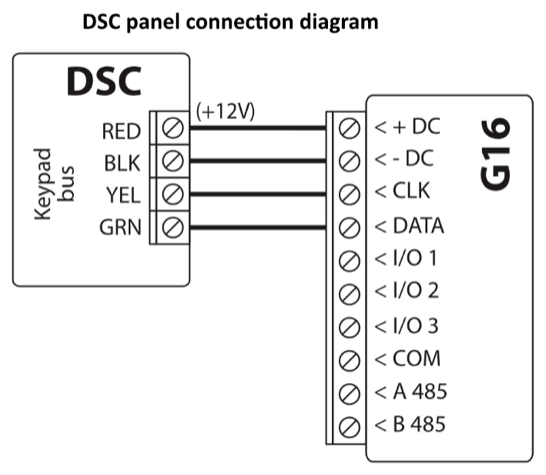

1. Schemes for connecting to the security control panels:

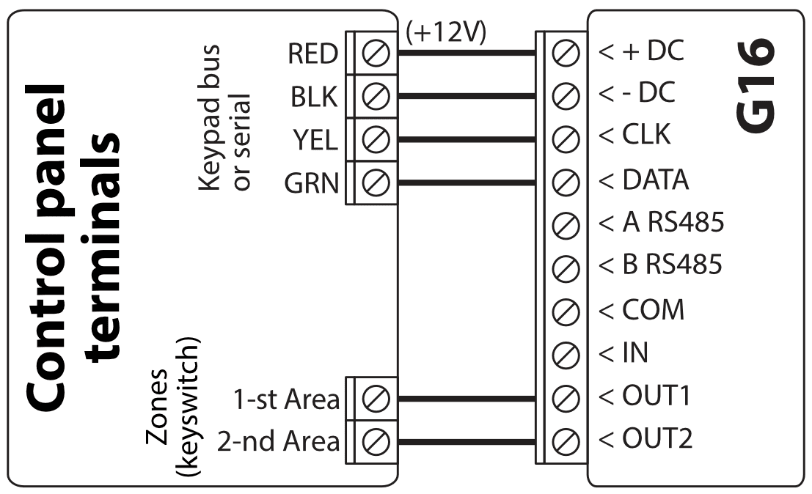

3.3 Schematic for connecting to panel keyswitch zone¶

Follow this schematic if the control panel will be armed/disarmed with a G16 PGM output turning on/off the panel’s keyswitch zone.

3.4 Schematics for input connection¶

The communicator has one input terminal (IN1) for connecting NO, NC, NO/EOL, NC/EOL, NO/DEOL, NC/DEOL type circuits. Default input setting - NO. The input type can be changed in the TrikdisConfig window System settings -> Input IN1 type.

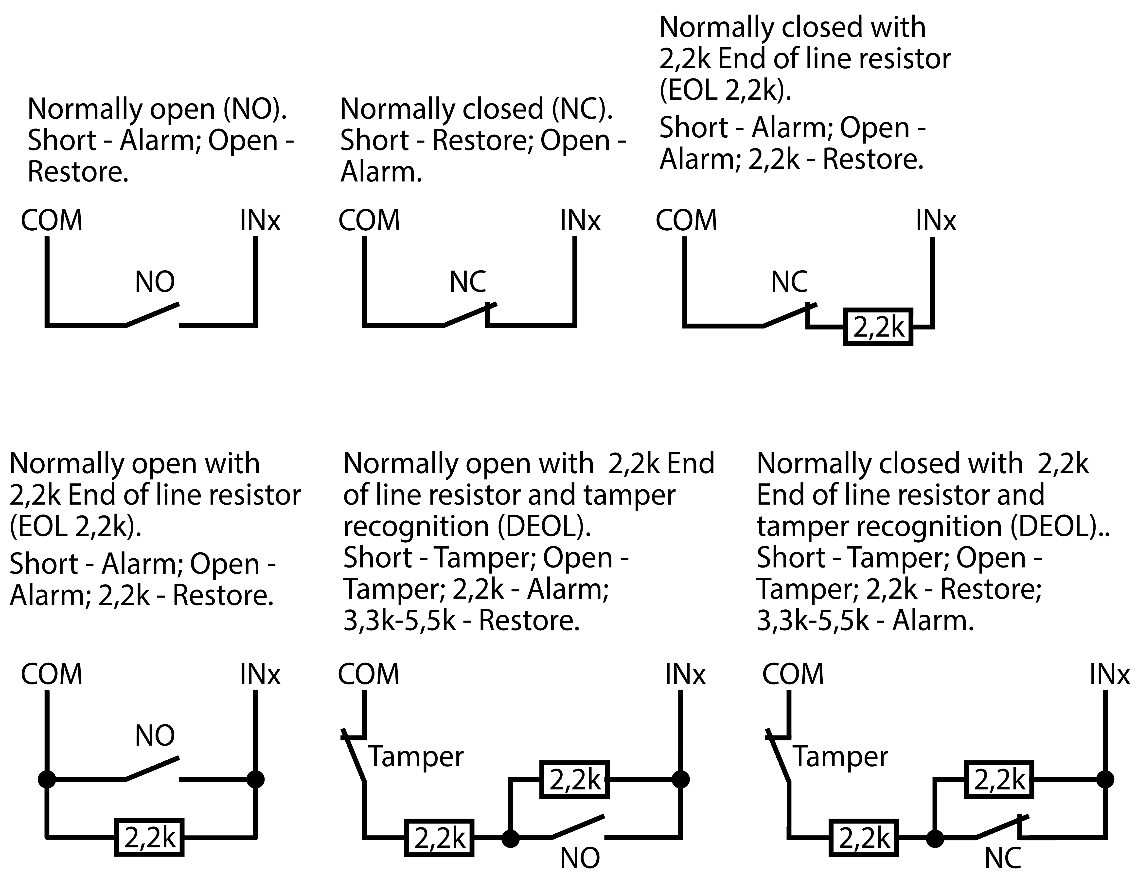

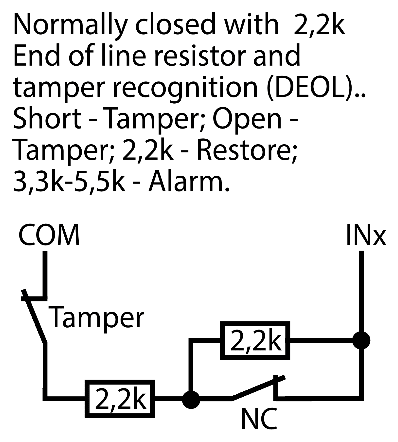

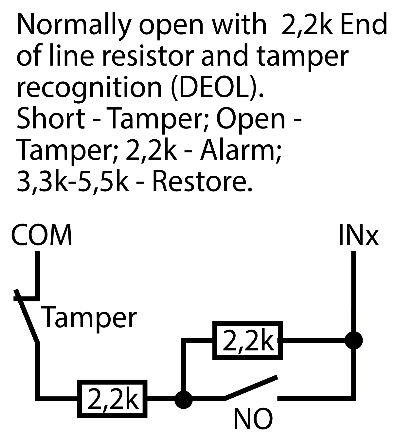

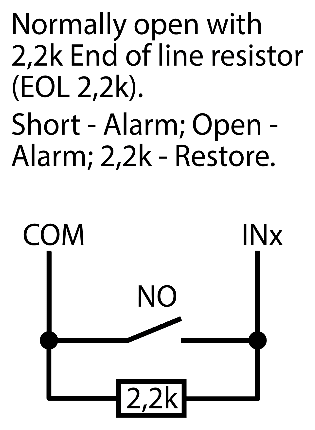

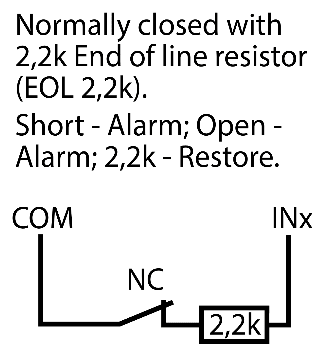

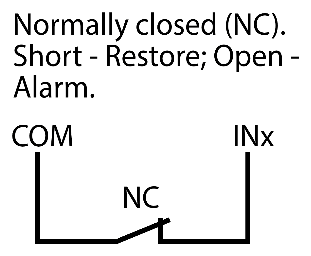

Connect the input according to the selected input type (NO, NC, NC/EOL, NO/EOL, NO/DEOL, NC/DEOL), as shown in the schemes below:

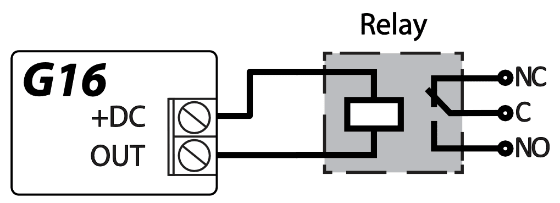

3.5 Schematics for wiring a relay¶

With relay contacts you can control (turn on/off) various electronic appliances.

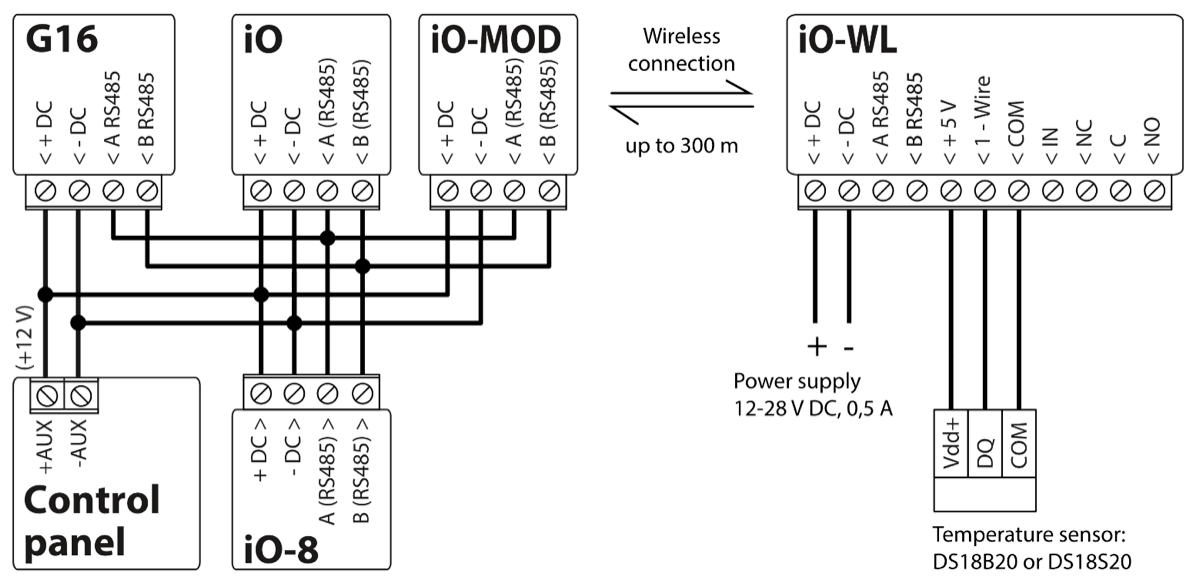

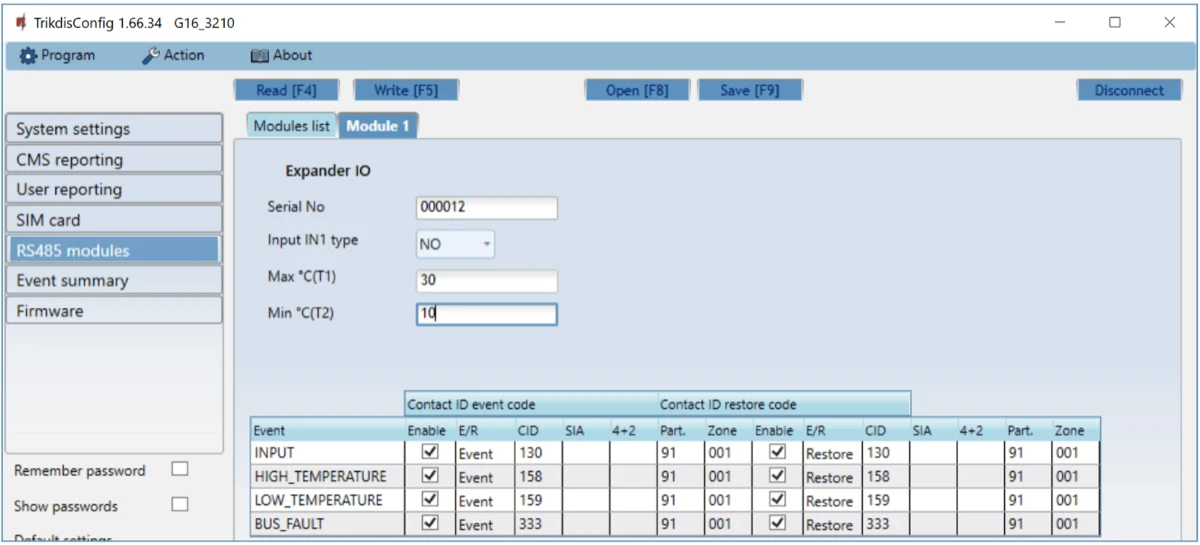

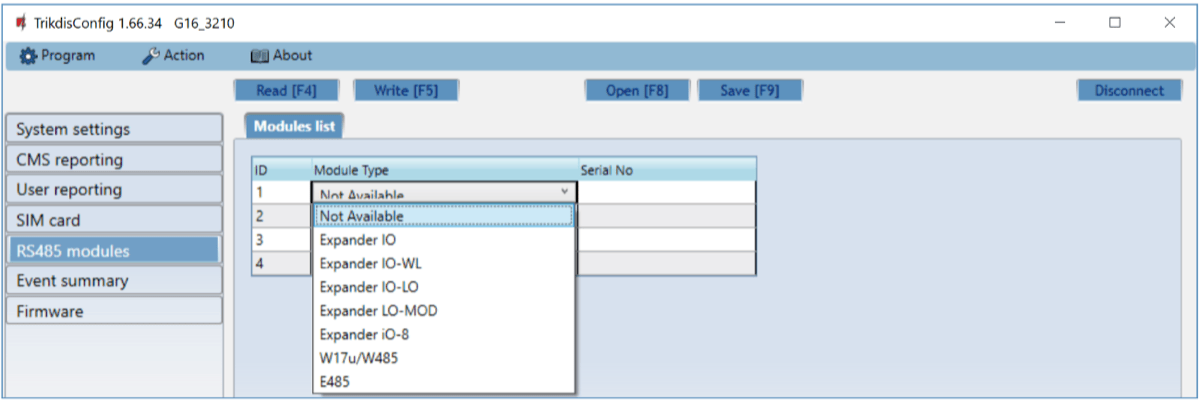

3.6 Schematics for connecting iO series expansion modules¶

If more inputs or outputs need to be connected to the communicator, or if you want to connect a temperature sensor, connect the TRIKDIS iO series wired or wireless output expander. Configuration of expander modules connected to the G16 is described in chapter 6.6. ““RS485 modules” window”.

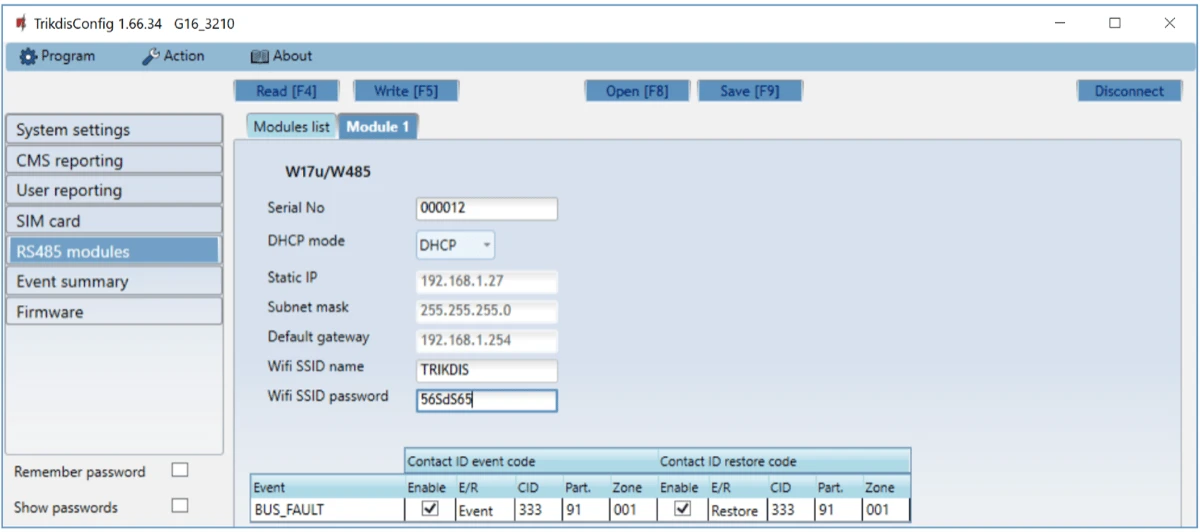

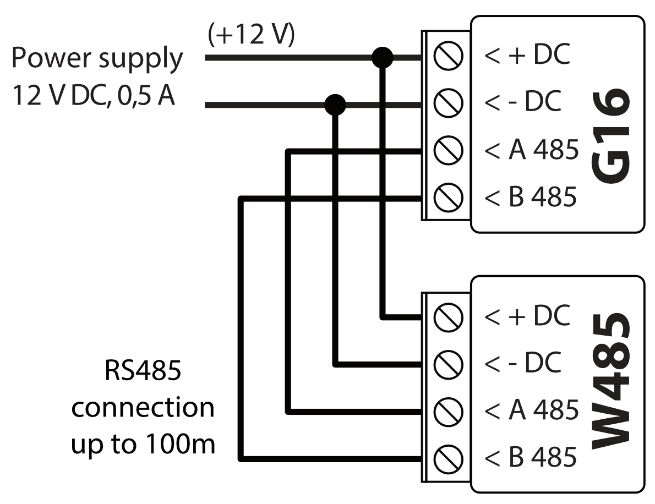

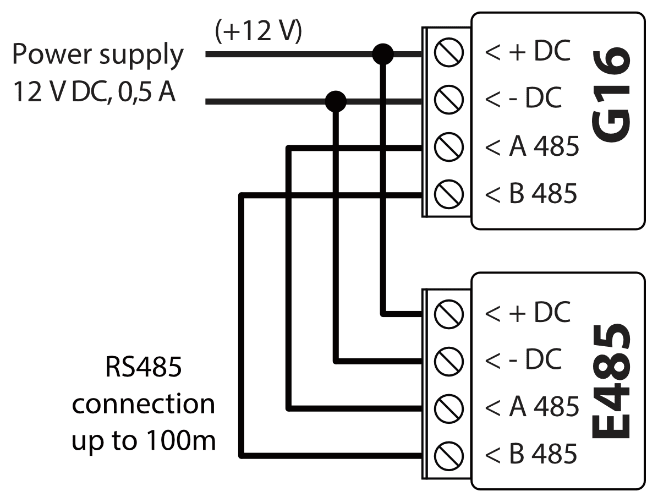

3.7 Schematic for connecting the W485 WiFi module¶

The W485 module sends messages to the CMS (Central Monitoring Station) and to Protegus using a WiFi internet router. When WiFi connectivity is available, the G16 sends event messages via the W485 module. When WiFi connectivity is disrupted, the G16 sends messages via GPRS. When WiFi connectivity is re-established, the G16 returns to sending messages via W485. / Configuration of the W485 WiFi module to work with the G16 is described in chapter 6.6. „„RS485 modules” window”. / Insert SIM card into the communicator G16 for W485 to work.

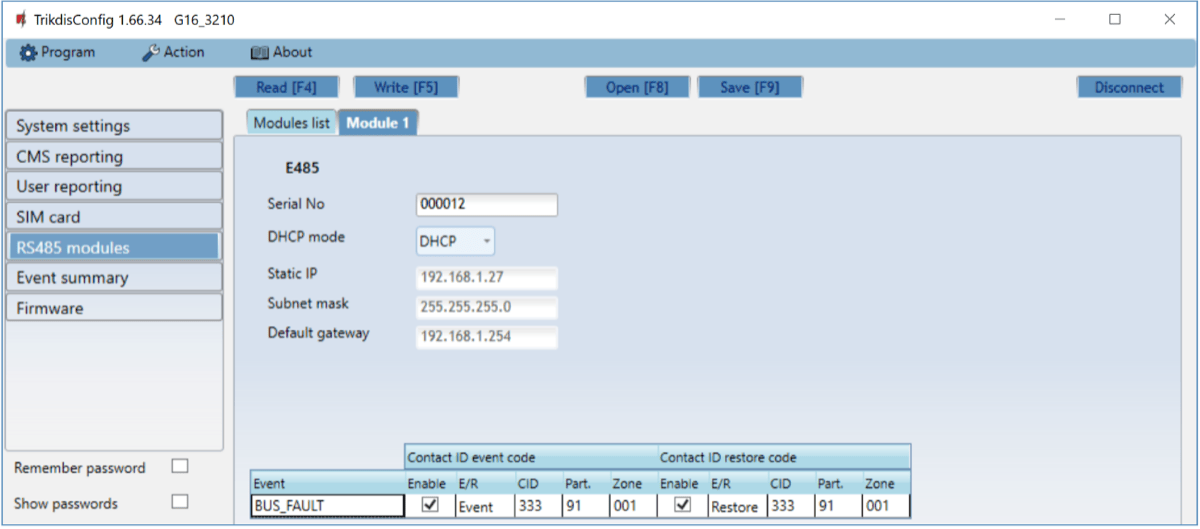

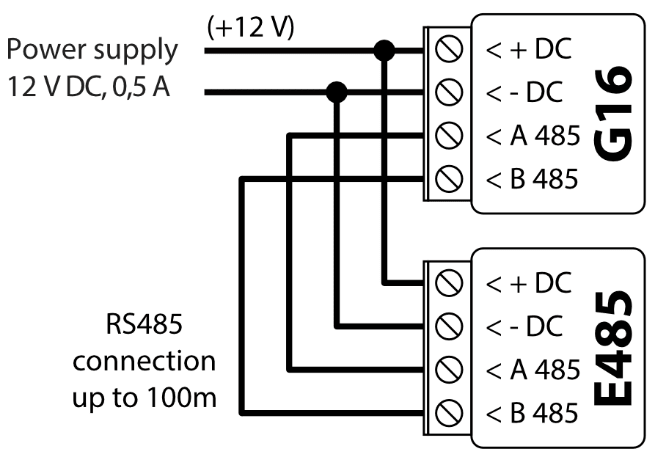

3.8 Schematic for connecting the E485 „Ethernet“ module¶

The E485 sends messages to the CMS (Central Monitoring Station) and to Protegus using a wired internet connection. Using the E485 with G16, CSP and Protegus messages are sent over wired Internet and mobile Internet is not used. If a wired internet connectivity is disrupted, the G16 sends messages via the mobile Internet. When the wired Internet connectivity is re-established, G16 starts sending messages via E485. / Configuration of the E485 WiFi module to work with the G16 is described in chapter 6.6. „„RS485 modules” window”. / Insert SIM card into the communicator G16 for E485 to work.

3.9 Turn on the communicator¶

To start the communicator, turn on the security control panel’s power supply. This LED indication on the G16 communicator must show:

• “POWER” LED illuminates green when the power is on;

• “NETWORK” LED illuminates green and blinks yellow when the communicator is registered to the network.

4. Programming the control panel¶

Below it is described how to program the security control panel so that the G16 communicator could read events from the panel and control it remotely.

To enable remote control of the security panel, make sure that the checkbox Remote Arm/Disarm is selected in the TrikdisConfig window “System settings”.

4.1 DSC¶

DSC panels do not need to be programmed.

4.2 PARADOX¶

Paradox control panels need to be programmed only for direct control with Protegus. You do not need to program Paradox panels for reading events.

For remote control of Paradox panels, you need to set up a PC download password. This password must match the password which was set in the TrikdisConfig window “System settings”, when the checkbox next to Remote Arm/Disarm was selected.

To set this password, with the keyboard connected to the security control panel:

• For MAGELLAN, SPECTRA series: go to cell 911 and enter 4-digit PC download password.

• For DIGIPLEX EVO series: go to cell 3012 and enter 4-digit PC download password.

4.3 TEXECOM¶

Texecom control panels need to be programmed for both reading events and remote control.

You need to set the Texecom panel’s UDL passcode. This password must match the password which was set in the TrikdisConfig window “System settings”, when the box next to Remote Arm/Disarm was selected.

The security control panel can be programmed with Texecom software - Wintex. Enter UDL passcode (4-digit code) in the Communication Options window, Options tab.

Also, you can program with a keypad connected to the security control panel:

1) Enter the 4-digit installer’s code and press the [Menu] button to enter the programming menu.

2) Press the [9] key immediately afterwards.

3) Press [7][6], and then [2]. Enter the 4-digit UDL passcode (UDL passcode must match the G16 communicator’s PC login password).

4) Press [Yes] and leave the programming mode by pressing [Menu].

4.4 UTC INTERLOGIX (CADDX)¶

With the keyboard connected to the security control panel:

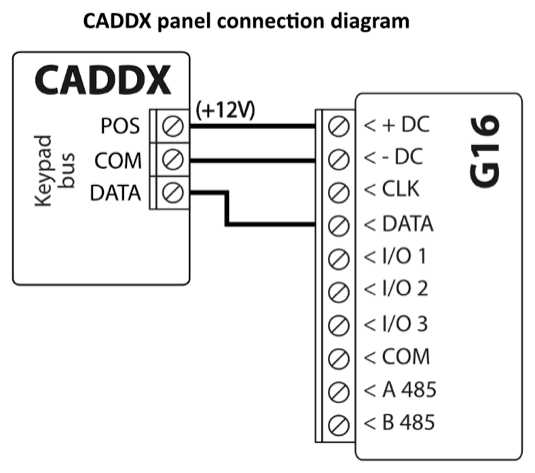

1) Press [*][8] and enter the installer’s code (default - 9713).

2) Enter the device number assigned to the connected communicator (default - 0).

3) Set the settings below for each row. In sequence, enter the position, segment number and the required setting. Clicking [*] (asterisk) will return you to the local input field.

After having programmed all the fields listed, press [Exit] twice to exit the programming mode.

4.5 INNERRANGE¶

Innerrange Inception security control panel version must be 2.3.0.3507-r0 or higher.

The control panel must be connected to the internet. Connect to Innerrange Inception by entering: https://skytunnel.com.au/inception/SERIALNUMBER, where SERIALNUMBER is the number of the controller that you can find on the panel’s enclosure.

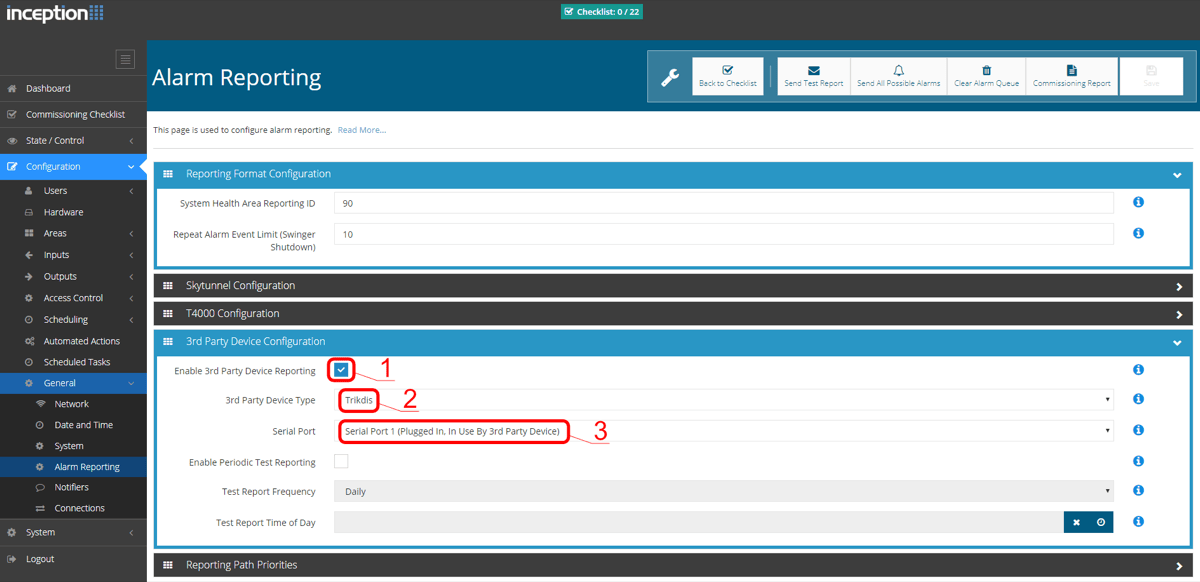

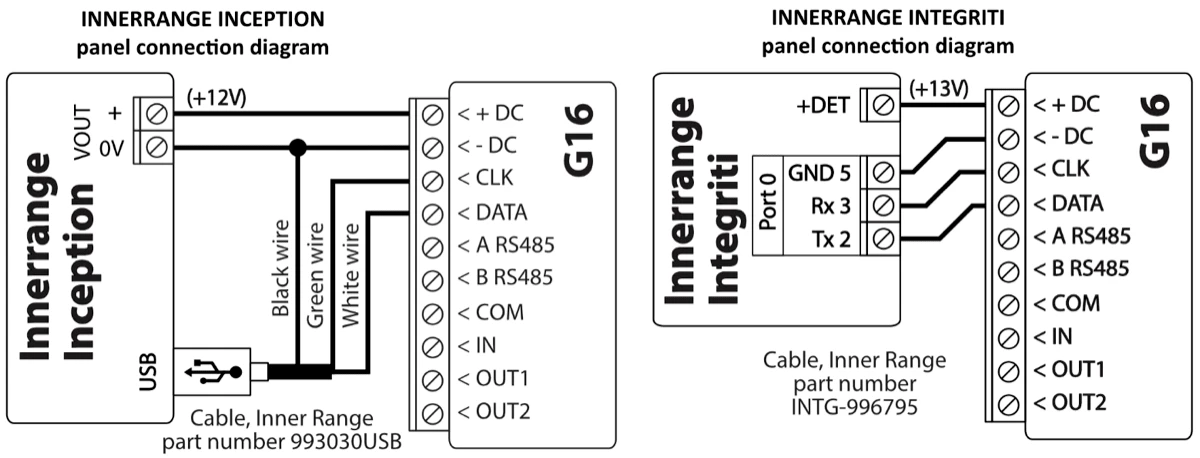

Open Configuration > General > Alarm Reporting. In the 3rd Party Device Configuration settings group you need to enter:

1. Enable 3rd Party Device Reporting - select this checkbox.

2. 3rd Party Device Type - set “Trikdis”.

3. Serial port - set “Serial Port 1 (Plugged In, In Use By 3rd Party Device)”.

4. Save settings and exit the application.

Innerrange Integriti security control panel version must be 19.1.0.36608 or higher, the professional software version 19.1.0.15396 or higher.

Specify the Trikdis communication protocol in the control panel configuration program. Contact ID data format. The port (TTL Port-0) of the security panel, to which the G16 communicator is connected, has the settings 19200, 8, N, 1. Save the settings and exit the program.

4.6 Honeywell Ademco Vista¶

Follow these steps for Honeywell Ademco Vista-20 and Honeywell Ademco Vista-48 panels. The panel’s firmware version must be V5.3 or higher. With a keypad that is connected to the panel:

1. Enter the programming mode. Enter the installer code 4][1][1][2] and after that [8][0][0] . Alternatively, turn on the panel‘s power supply. In 50 seconds after the power supply is turned on, press the buttons [*] and [#] at the same time (this method can be used when programming mode was exited by pressing in keypad [*][9][8] ).

2. Turn on the sending of Contact ID events via LRR. Press [*][2][9][1][#] in keypad.

3. When using the „Remote Arm/Disarm“ function, allow to use the 2nd AUI address. In keypad press [*][1][8][9][1][1][#] .

Exit the programming mode. In keypad press [*][9][9]

Crow

There is no need to program Crow Runner 4/8 and Runner 8/16 panels.

5. Remote control¶

5.1 Adding the security system to Protegus app¶

With Protegus users will be able to control their alarm system remotely. They will see the status of the system and receive notifications about system events.

1. Download and launch the Protegus application or use the browser version: www.protegus.app.



2. Log in with your user name and password or register and create new account.

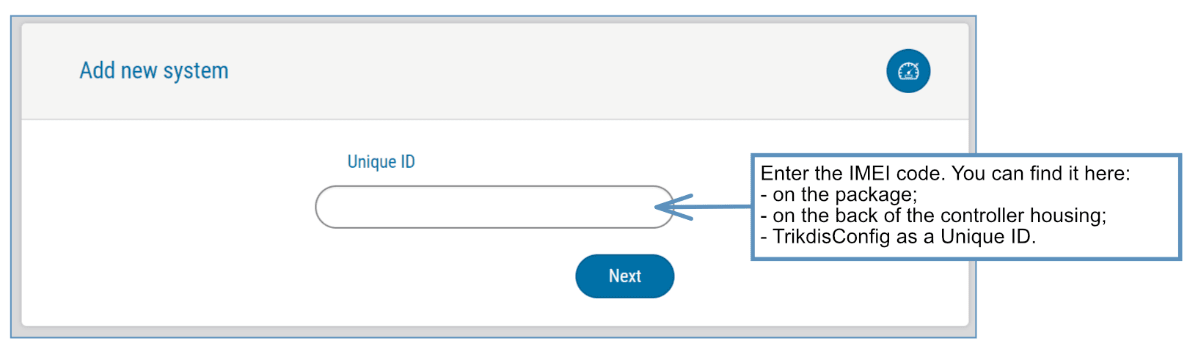

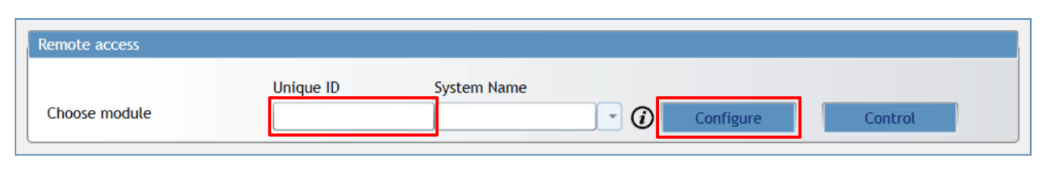

3. Click Add new system and enter the G16’s “IMEI/Unique ID” number. This number can be found on the device and the packaging sticker. Click Next.



5.2 Additional settings to arm/disarm the system using the control panel’s keyswitch zone¶

Follow the instructions below if the security control panel will be controlled with a G16 PGM output, turning on/off the control panel keyswitch zone.

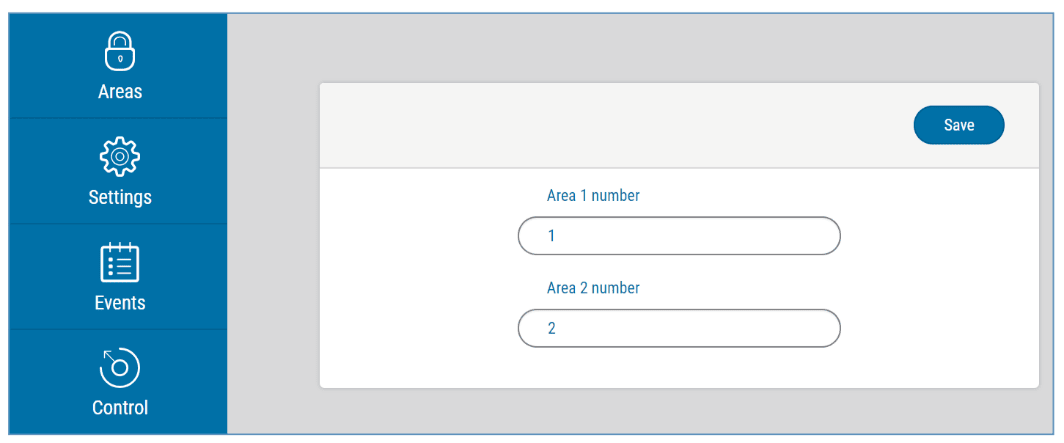

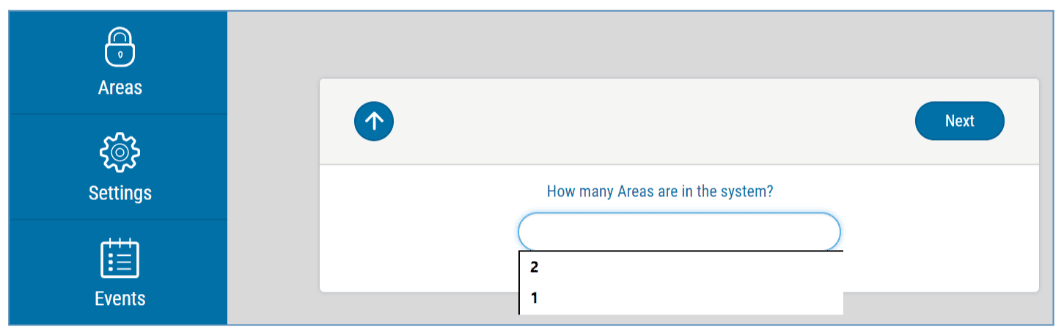

1. In the new window, click Areas in the side menu. In the next window, specify how many alarm system areas (1 or 2) are in the system and press Next.



2. In the new window, identify what is the number for each of the specified areas in the security system and press Save.

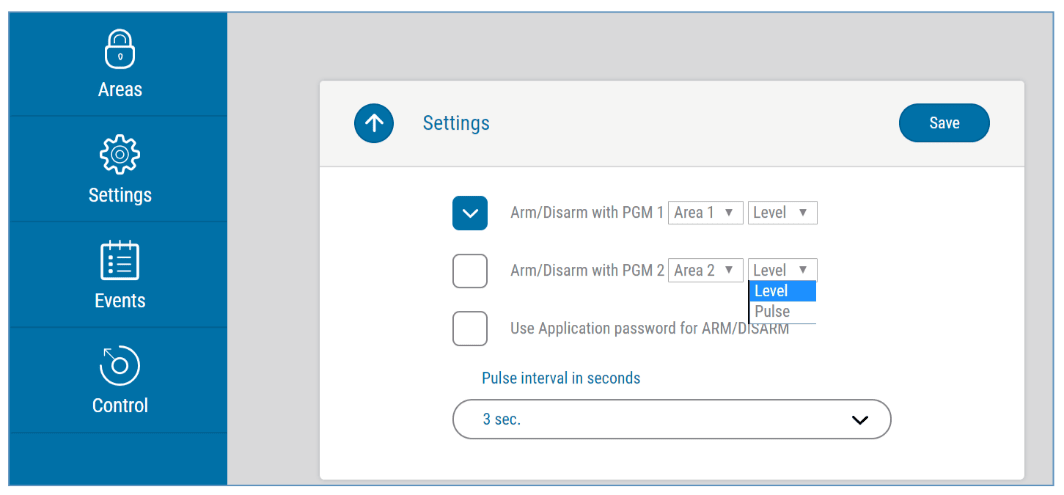

3. In the side menu press Settings and in the newly opened window press Settings. Select the box Arm/Disarm with PGM and specify which area the output will control. One PGM output can control only one area.



4. Select Level or Pulse, depending on the type of control panel keyswitch zone. You can also change the duration of the pulse interval if it is required for the connected control panel.

5. For additional security, you can select Use Application password for ARM/DISARM. Then after pressing the button to arm/disarm the alarm system, a window for entering the app password will open.

5.3 Arming/disarming the alarm system with Protegus¶

1. To control the system, open the Areas window.

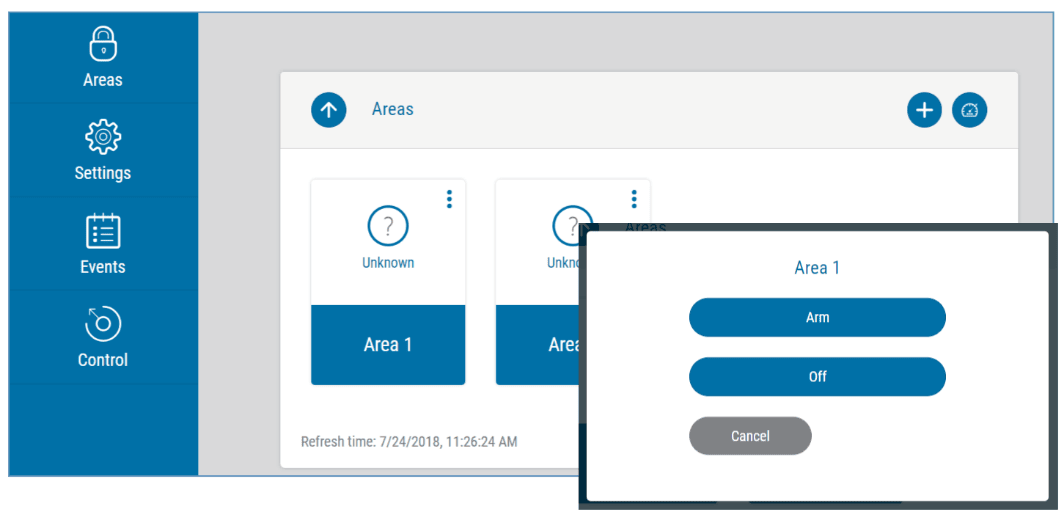

2. In the Areas window click the Area button. In the pop-up window select the action (arm or disarm the security system area).

3. If requested, enter the user code or Protegus password.

5.4 Configuration and control with SMS messages¶

You can remotely configure and control the communicator with SMS messages.

Message structure is: Password [space] Command [space] Data

For password use the Administrator code for INFO, RESET, OUTPUTx, CONNECT commands, and Installer code for INFO, RESET, OUTPUTx commands.

5.4.1 SMS command list¶

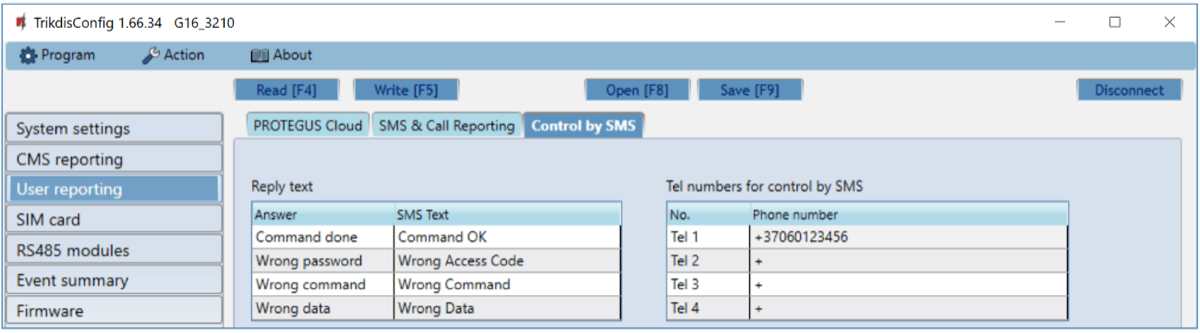

You can restrict the phone numbers from which the communicator will accept the commands. See chapter 6.4 “User reporting” window, “Control by SMS” tab.

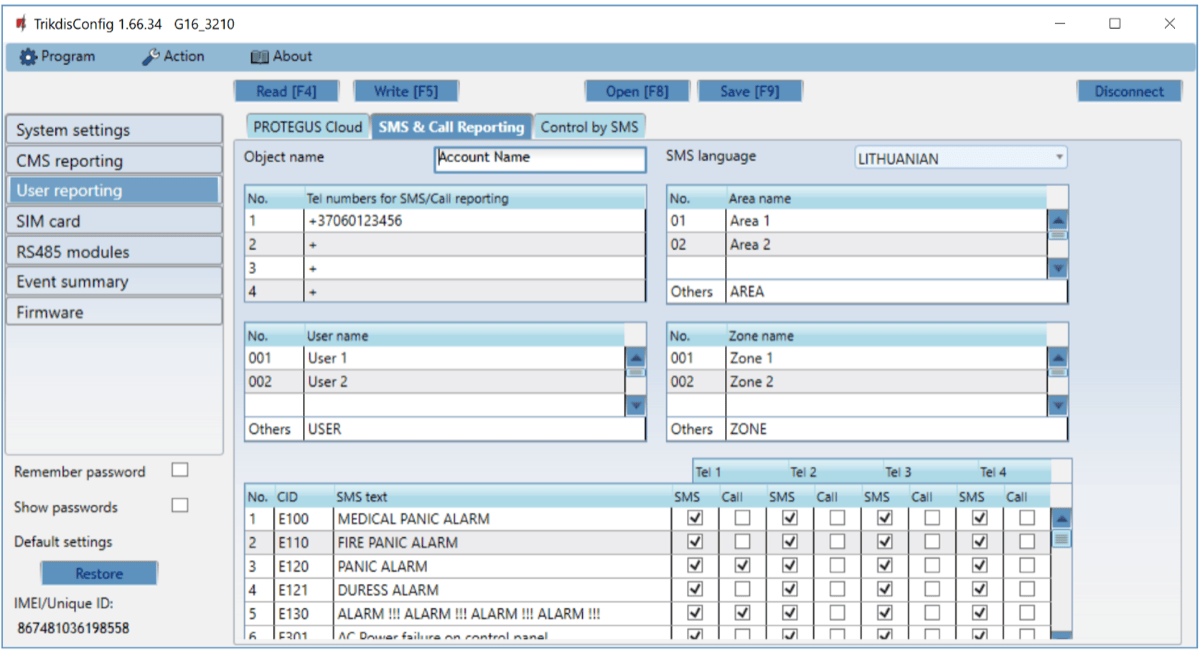

6. TrikdisConfig window description¶

6.1 TrikdisConfig status bar description¶

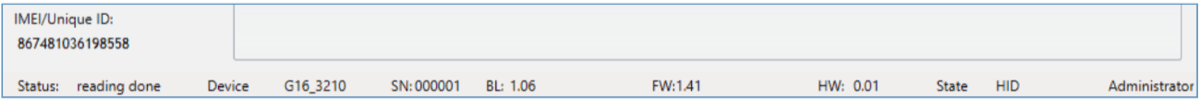

After connecting the G16 and clicking Read [F4], TrikdisConfig will provide information about the connected device in the status bar:

After pressing Read [F4], the program will read and show the settings which are set in the G16. Set the necessary settings according to the TrikdisConfig window descriptions given below.

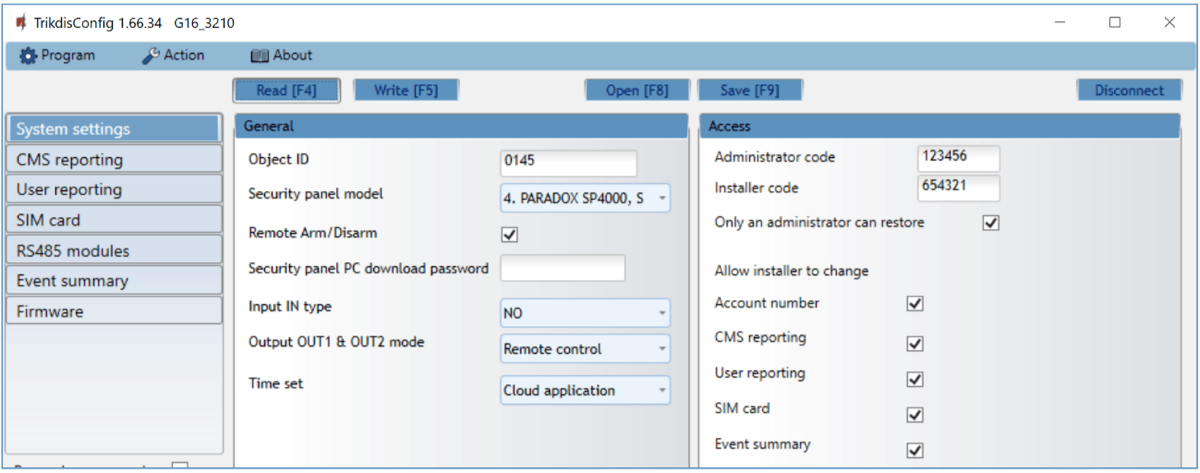

6.2 “System settings” window¶

“General” settings group

• Object ID – if the events will be sent to the CMS (Central Monitoring Station), enter the account number provided by the CMS (4 characters hexadecimal number, 0-9, A-F. Do not use FFFE, FFFF Object ID).

• Select the Security panel model that will be connected to the communicator.

• Remote Arm/Disarm - when the checkbox is selected, the G16 will directly control the control panel remotely. This setting will be visible only for directly controlled panels. For direct control of the control panels you need to change the panel settings, as described in section 4 “Programming the control panel”.

• Security panel PC download/UDL password - for the direct control of Paradox and Texecom control panels you need to enter the PC/UDL password. It must match the password that was entered in the control panel. How to change this password is described in section 4 “Programming the control panel”.

• Input IN type - select the input type from the list (NO, NC, NO/EOL, NC/EOL, NO/DEOL, NC/DEOL).

• Output OUT1 & OUT2 mode - select the output operation mode from the list.

• Time set - select which server to use for time synchronization.

“Access” settings group

When setting up the communicator G16 there are two levels of access for, the administrator and the installer:

• Administrator code - allows you to access all configuration fields (default code - 123456).

• Installer code - limited access for configuring the communicator (default code - 654321).

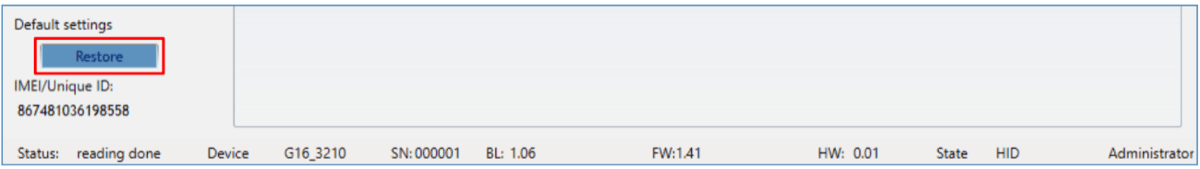

• Only an administrator can restore - if the box is checked, factory settings can be restored only by entering the administrator code.

• Allow installer to change – the administrator can specify which settings can be changed by the installer.

6.3 “CMS reporting” window¶

“CMS settings” tab

The communicator sends events to the monitoring station via cellular internet (IP) or with SMS messages.

Events can be sent over several channels of communication. The primary and parallel communication channels can operate simultaneously, this way the communicator can send events to two receivers at the same time. Backup channels can be assigned for both primary and parallel channels, which will be used when the connection via the primary or parallel channel is interrupted.

Communication is encoded and password protected. A TRIKDIS receiver is required for receiving and sending event information to the monitoring programs:

• For connection over IP - software receiver IPcom Windows/Linux, hardware IP/SMS receiver RL14 or multichannel receiver RM14.

• To receive SMS messages - hardware IP/SMS receiver RL14, multichannel receiver RM14 or SMS receiver GM14.

SMS communication is particularly useful as a backup channel, because it works even when there is no mobile internet connection. We do not recommend SMS as a primary channel.

“Primary channel” settings group

• Communication type - select which method for connecting to the monitoring station receiver will be used: IP or SMS.

• Protocol - select in which coding the events should be sent: TRK (to TRIKDIS receivers), DC-09_2007 or DC-09_2012 (to universal receivers), TL150 (to SUR-GARD receivers).

• TRK encryption key - 6-digit message encryption key. The key written to the communicator must match the receiver’s key.

• Domain or IP - enter the domain or IP address of the receiver.

• Port - enter the network port number of the receiver.

• TCP or UDP - select in which protocol (TCP or UDP) the events should be sent.

• Phone number (only for SMS messages) - enter the telephone number of a TRIKDIS SMS receiver. The phone number must begin with the country code (e.g., 370xxxxxxxx).

“Primary channel Backup” settings group

Enable the backup channel mode to send events via backup channel if connection via primary channel is lost. Backup channel settings are same as described above.

“Parallel channel” settings group

Events are transmitted in parallel with the first channel through this channel. When the second channel is enabled, events can be sent simultaneously to two receivers (e.g., local and centralized monitoring stations). Parallel channel settings are the same as described above.

Backup SMS reporting number

Backup SMS messages are sent when they cannot be transmitted via the primary, parallel and backup channels. It is especially useful because it works even when there is no IP connection in the mobile operator network.

This channel is operational only when IP mode is set for the first channel and its backup channel.

SMS notifications will be sent to the Central Monitoring Station SMS receiver: 1) immediately after the first time when communicator starts operating; and 2) if the TCP / IP or UDP / IP connection is interrupted in the first channel and its backup channel.

• Backup SMS reporting number - enter the phone number for TRIKDIS alarm receiving center’s SMS receiver. Phone number must begin with the country code (e.g., 370xxxxxxxx).

*“Settings” tab* “Settings” settings group

• Test period - TEST event period for testing the connection. Test events are sent as Contact ID messages and forwarded to the monitoring software.

• IP ping period – period for sending internal PING heartbeats. These messages are only sent via IP channel. The receiver will not forward PING messages to the monitoring software to avoid overloading it. Notifications will only be sent to the monitoring software if the receiver fails to receive PING messages from the device within the set time.

By default, the “Connection lost” notification will be transmitted to the monitoring software if the PING message is not received by the receiver over a time period three times longer than set in the device. E.g. if the PING period is set for 3 minutes, the receiver will transfer the “Connection lost” notification if a PING message is not received within 9 minutes.

PING heartbeats keep the active communication session between the device and the receiver. An active session is required for remote connection, control and configuration of the device. We recommend setting the PING period for no more than 5 minutes.

• Backup reporting after - indicates the number of unsuccessful attempts to send the message via Primary channel. If device fails to transmit specified number of times, the device will connect to transmit the messages via Backup channel.

• Return from backup after - time after which the G16 will attempt to reconnect and transmit messages via the Primary channel.

• DNS1, DNS2 - (Domain Name System) identifies the server that specifies the IP address of the domain. Used when domain is set in the communication channel Domain or IP field (not IP address). Google DNS server is set by default.

“DC-09 parameters” settings group

The settings are displayed when the DC-09_2007 or DC-09_2012 protocol is set in the communication channel Protocol field for sending events to universal receivers.

• Object ID in DC-09 - enter the object number. The object number entered in this field will be used if DC-09 encoding is selected. A hexadecimal number from 3 to 16 characters can be entered. This Number is provided by the Alarm Receiving Center.

• DC-09-line No. - enter line number of the receiver.

• DC-09 receiver No. - enter the receiver number.

6.4 “User reporting” window¶

“PROTEGUS cloud” tab

Protegus service allows users to remotely monitor and control the communicator. For more information about Protegus service, visit www.protegus.app.

“Protegus Cloud” settings group

• Enable connection – enable the Protegus service, the G16 will be able to exchange data with Protegus app and to be remotely configured via TrikdisConfig.

• Protegus Cloud access Code - 6-digit code for connecting to the Protegus app (default - 123456).

“SMS & Call Reporting“ tab

Notifications about system events can be transmitted to users’ mobile phones via SMS messages or phone calls.

• Object name - name the system to which the communicator is connected. Every SMS notification will include the name of the object.

• SMS language - choose the language for SMS messages (SMS messages can be sent with language-specific characters).

• Tel numbers for SMS/Call reporting - enter up to 4 user phone numbers that will receive event SMS messages or calls. Phone numbers must begin with the country code, for example +370xxxxxxxx, 00370xxxxxxxx or 370xxxxxxxx.

• Area name, User name, Zone name tables - each area, user and zone may have a name that will be used in SMS event messages. Enter the area, user or zone number in the appropriate table and enter the name next to the number.

• CID event table - you can change which phone numbers receive SMS messages or phone calls notifying about the events on the list.

You can change the texts for SMS messages of default events, change the contact ID (CID) codes and enter new events with descriptions.

“Control by SMS” tab

You can send SMS commands to the communicator that will control the basic functions of the device. Find the control commands in chapter 5.4 Configuration and control with SMS messages.

• Reply text - SMS text that the user receives after sending an SMS command. SMS text can be edited.

• Tel numbers for control by SMS - you can enter phone numbers from which the communicator will accept commands.

6.5 “SIM card” window¶

“SIM card” settings group

• SIM card PIN - enter the SIM card PIN code. This code can be disabled by inserting the SIM card into a mobile phone and disabling the request. If you disabled the SIM card PIN request, leave the default value in this field.

• APN - enter APN (Access Point Name). It is required for connecting the communicator to the internet. APN can be found on the website of the SIM card operator (“internet” is universal and works in the networks of many operators).

• Login, Password - if required, enter the user name (login) and password for connection to the internet.

• Forbid connection when roaming detected - you can use this function when the security system is installed near the country border. This function prevents the communicator from operating in the other country’s mobile network.

6.6 “RS485 modules” window¶

“Modules list” tab

iO series expanders can be connected to the communicator to add additional inputs, outputs and serial buses for temperature sensors. Connected expanders must be added to the Modules list table.

• Module type – select the module that is connected to the communicator via RS485 from the list.

• Serial No – enter the module serial number (6 digits), which is indicated on stickers on the module’s case and packaging.

After selecting the connected module and entering its serial number, press the Write [F5] button. When the change is written, disconnect the USB Mini-B cable from the communicator. Wait one minute (the communicator has to register the connected module). Connect the USB Mini-B cable to the communicator. Click the Read [F4] button. Go to RS485 modules → Module.

“Module” tabs

After adding the expander to the communicator as described above, in the RS485 modules window a new tab will appear with this module’s settings. The tab will be given a number. Bellow we describe the settings for iO-8 and iO series expanders, for the WiFi module W485, for the „Ethernet“ module E485.

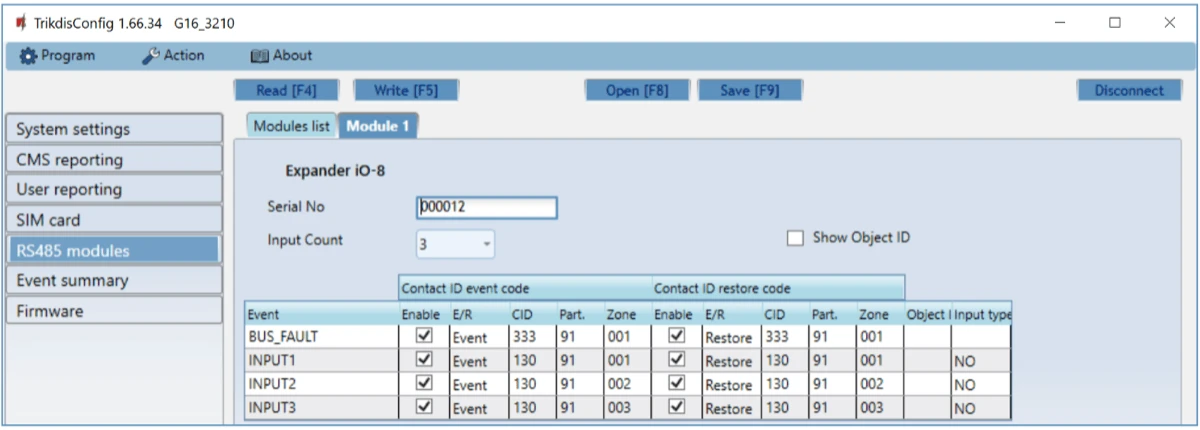

iO-8 expander settings window

Expander iO-8 has 8 universal (input/output) terminal contacts. Up to four iO-8 expanders can be connected.

• Input Count – select what number of terminal contacts should be set to input (IN) mode. The rest of the terminal contacts will become outputs (OUT).

Settings for controllable outputs are set directly in Protegus app. There you can assign an output for arming/disarming the alarm system or for remote control of devices.

In the table inputs can be assigned Contact ID event and restore codes. After input is triggered, the communicator will send an event with set event code to monitoring station receiver, Protegus app and SMS (to user telephone number).

Contact ID event code:

• Enable – allow message transmission, when the input is triggered.

• E/R – choose what type of event will be sent when input is triggered – Event or Restore.

• CID – assign a Contact ID event code to the input.

• Part. – assign the partition (area) to the input. It is set automatically: if the module no. is 1, then the area is 91; if the module no. is 4, then the area is 94.

• Zone – set the zone number for the input.

*Contact ID restore code*:

• Enable – allow message transmission when the input is restored.

• E/R – choose what type of event will be sent when input is restored – Restore or Event.

• CID – assign the Contact ID restore code to the input.

• Part. – assign the partition (area) to the input. It is set automatically: if the module no. is 1, then the area is 91; if the module no. is 4, then the area is 94.

• Zone – set the zone number for the input.

• Object ID - the input (IN) can be assigned an Object ID, which will differ from the Object ID of the communicator G16.

• Input type – select the type of the input (NO or NC).

For customers to receive SMS messages or calls about input triggers, enter the Contact ID event code that is assigned to the input to the table in “SMS & Call Reporting” tab.

iO expander settings window

Expander iO has: terminals for 1 input, 1 output (relay contacts) and 1-Wire serial bus for connecting temperature sensors.

• Input IN1 type – set the input type (NO or NC).

• Max ^◦C(T1) – when the temperature is higher than this setting, an event message will be generated. For an event message to be generated, it must be enabled in the table.

• Min ^◦C(T2) – when the temperature is lower than this setting, an event message will be generated. For an event message to be generated, it must be enabled in the table.

In the table inputs can be assigned Contact ID event and restore codes. After an input is triggered, the communicator will send an event with the set event code to the monitoring station receiver and to Protegus app. Set as described in the previous page about iO-8 expander settings window.

WiFi module W485 settings window

• DHCP mode – WiFi module’s mode for registering to network (DHCP or Static).

• Static IP – static IP address for when static registering mode is set.

• Subnet mask – subnet mask for when static registering mode is set.

• Default gateway – gateway address for when static registering mode is set.

• Wifi SSID name – name of the WiFi network that the W485 will connect to.

• Wifi SSID password - WiFi network password.

In the table, you can assign Contact ID event and restore codes to the RS485 data bus fault event. When connection between the W485 and G16 is disrupted or re-established, the G16 will send a message with the assigned CID code to the CMS and Protegus app.

6.6.1 “Ethernet” module E485 settings window¶

• DHCP mode – ethernet module’s mode for registering to network (DHCP or Static).

• Static IP – static IP address for when static registering mode is set.

• Subnet mask – subnet mask for when static registering mode is set.

• Default gateway – gateway address for when static registering mode is set.

In the table, you can assign Contact ID event and restore codes to the RS485 data bus fault event. When connection between the E485 and G16 is disrupted or re-established, the G16 will send a message with the assigned CID code to the CMS and Protegus app.

6.7 “Event summary” window¶

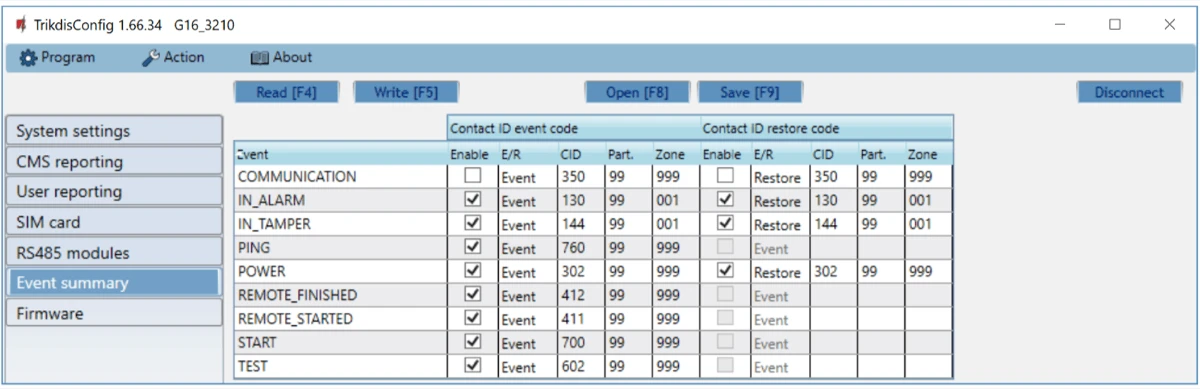

This window allows you to turn on, off, and modify internal messages sent by your device. Disabling an internal message in this window will prevent it from being sent regardless of other settings.

In this window, you can turn on, turn off or change the internal event messages sent by the device. After turning off the internal event in this window, it will not be sent irrespective of other settings.

• COMMUNICATION – message about connection error between the control panel and G16.

• IN_ALARM – message about input (IN) circuit trigger.

• IN_TAMPER – message about input (IN) circuit tamper trigger.

• PING – PING heartbeat signal.

• POWER – message about low power supply voltage.

• REMOTE_STARTED – message about remote connection to configure G16 with TrikdisConfig.

• REMOTE_FINISHED – message about disconnection from remote configuration with TrikdisConfig.

• START – message about G16 connecting to the network.

• TEST – periodic test message.

• Enable – when selected, the sending of messages is enabled.

You can change the Contact ID code for each event, and also the zone and partition number.

6.8 Restoring factory settings¶

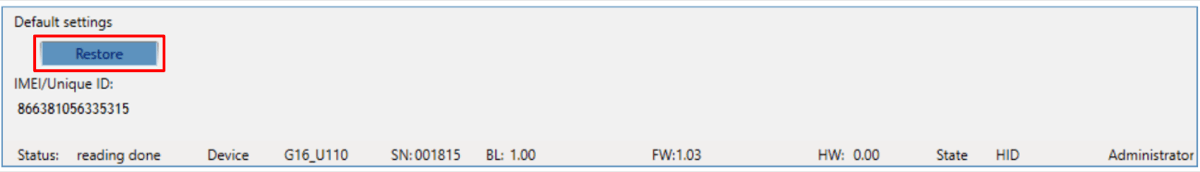

To restore the communicator's factory settings, you need to click the Restore button in the TrikdisConfig window.

7. Remote configuration¶

1. Start the configuration program TrikdisConfig.

2. In the Remote access section enter the communicator’s IMEI/Unique ID number. This number can be found on the device and the packaging sticker.

3. (Optional) in the System name field, enter the desired name for the G16 with this Unique ID.

4. Press Configure.

5. In the newly opened window click Read [F4]. If required, enter the administrator or installer code. To save the password, select “Remember password”.

6. Set the necessary settings and when finished, click Write [F5].

8. Test communicator performance¶

When the configuration and installation is complete, perform a system check:

1. Generate an event:

• by arming/disarming the system with the control panel’s keypad;

• by triggering a zone alarm when the security system is armed.

1. Make sure that the event arrives to the alarm receiving center and/or is received in the Protegus application.

2. To test communicator input, trigger it and make sure to receive the correct event.

3. To test the communicator outputs, activate them remotely and check their operation.

4. If the security control panel will be controlled remotely, arm/disarm the security system remotely by using the Protegus app.

9. Firmware update¶

The communicator’s firmware can also be updated or changed manually. After an update, all previously set settings will remain unchanged. When writing firmware manually, it can be changed to a newer or older version. To update:

1. Run TrikdisConfig.

2. Connect the communicator via USB cable to the computer or connect to the communicator remotely.

   • If a newer firmware version exists, the software will offer to download the newer firmware version file.

3. Select the menu branch Firmware.

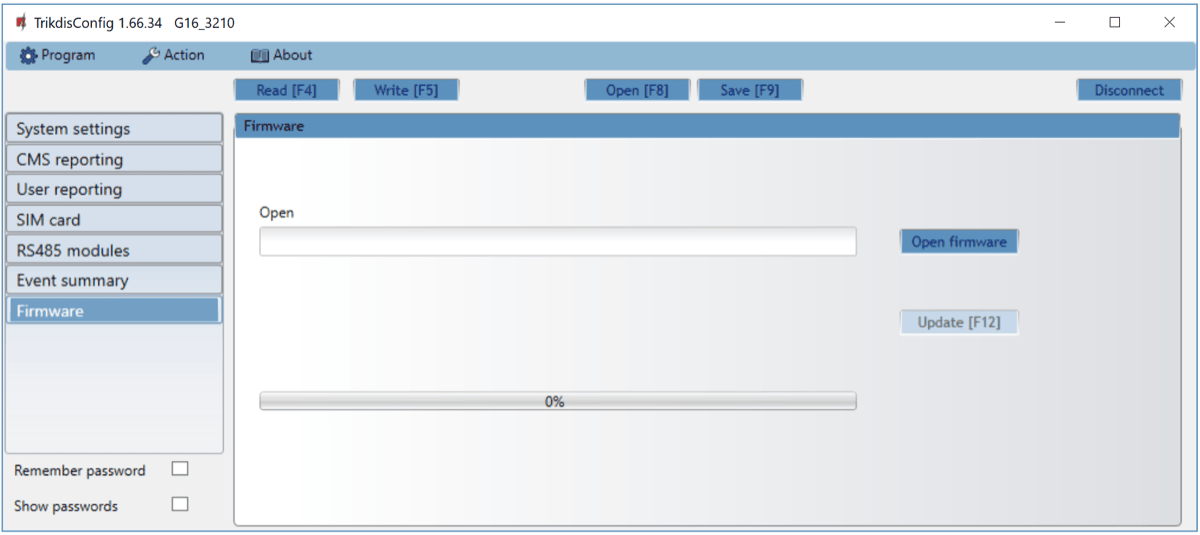

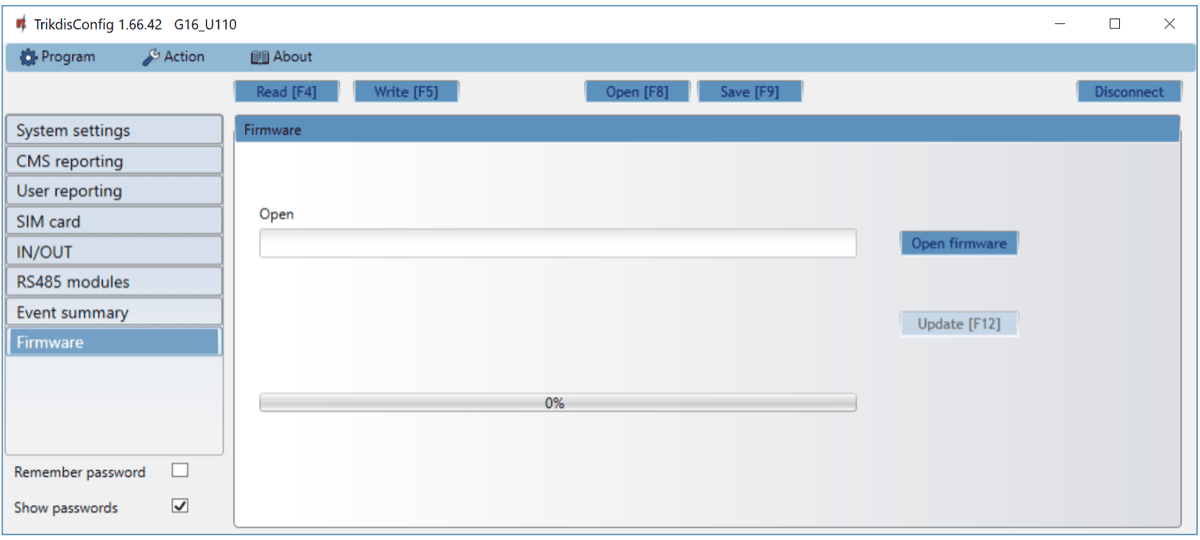

4. Press Open firmware and select the required firmware file. If you do not have the file, the newest firmware file can be downloaded by registered users from www.trikdis.com , under the download section of the G16 communicator.

5. Press Update [F12].

6. Wait for the update to complete.

10. Safety requirements¶

The communicator should be installed and maintained by qualified personnel.

Prior to installation, please read this manual carefully in order to avoid mistakes that can lead to malfunction or even damage to the equipment.

Disconnect the power supply before making any electrical connections.

Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty.

Please act according to your local rules and do not dispose of your unusable alarm system or its components with other household waste.

11. Annex¶

The communicator can work with a SUR-GARD receiver. The communicator converts Contact ID codes received from the alarm control panel into SIA codes.

Contact ID to SIA code conversion table
