Interlogix NX-4V2 / NX-6V2 with GT/GT+/GET quick setup¶
Short wiring and programming steps to connect the GT/GT+/GET communicator to Interlogix NX-4V2, Interlogix NX-6V2 panels using KeyBus, then enroll the system in Protegus2. Use this alongside the full manuals for all other settings. (Terminal labels differ slightly between GT/GT+/GET, but the connections are the same.)
Caution
Install and service only by qualified personnel. Disconnect power before wiring. Unauthorized changes void warranty.
1. Prerequisites¶
- GT/GT+/GET firmware 1.21, SIM inserted, PIN disabled, data plan active.
- Interlogix NX-4V2 / NX-6V2 panel with keypad access (installer code available).
- CMS account number if reporting to CMS.
- Protegus2 company/installer account and communicator IMEI.
2. Wiring¶

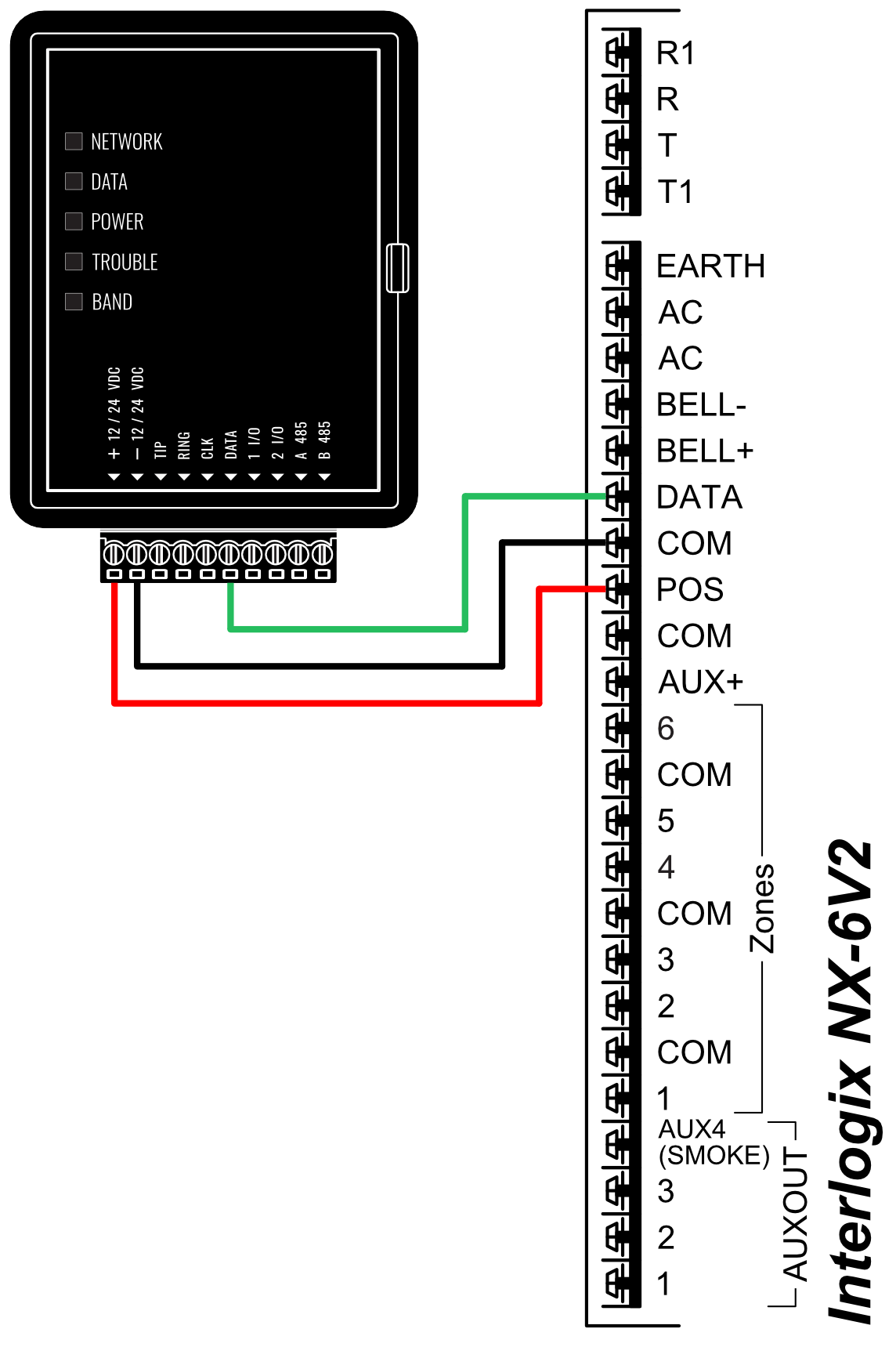

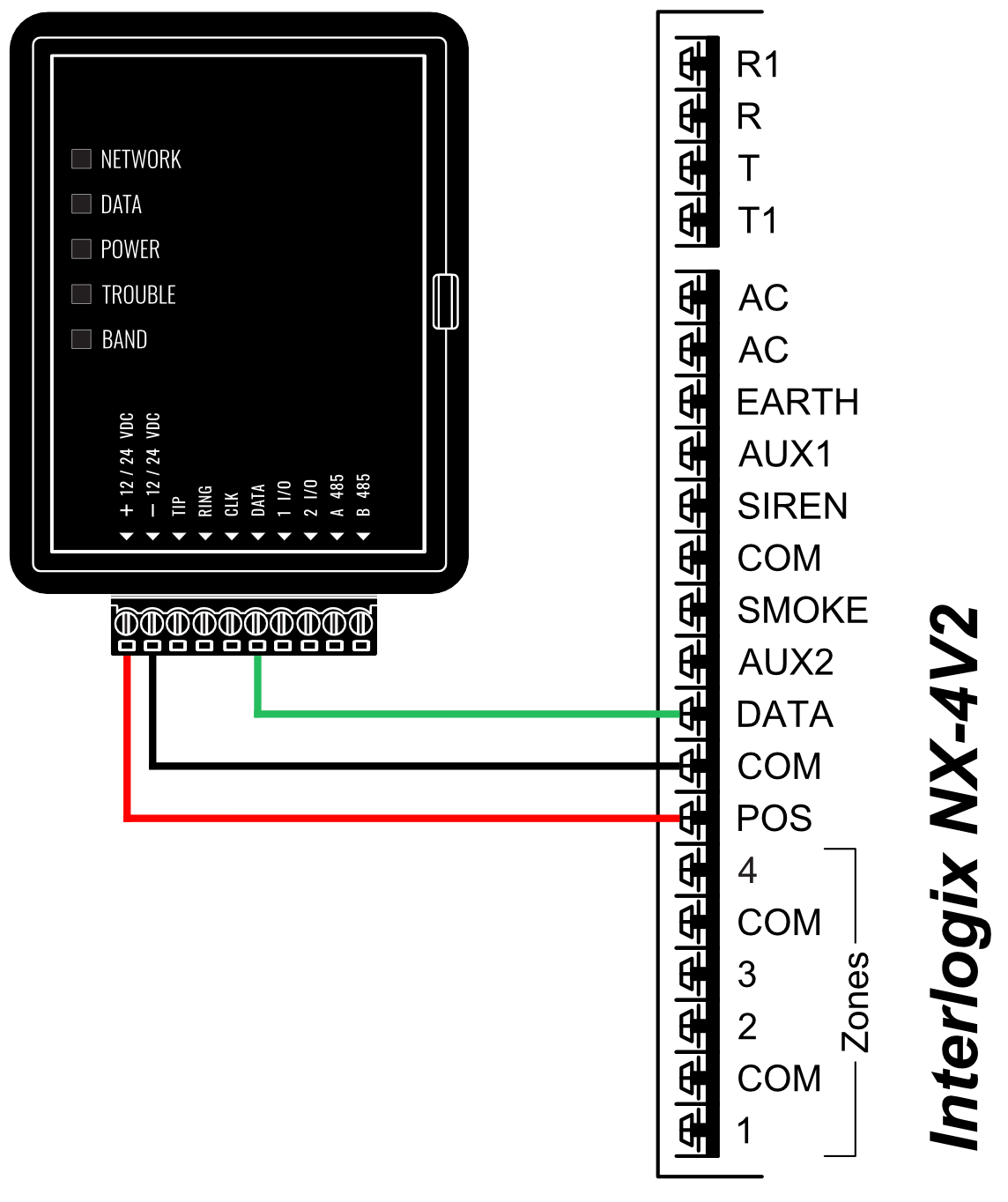

Follow the schematic below to connect the communicator to the panel:
| GT/GT+/GET terminal | Interlogix panel | Notes |
|---|---|---|
| +12V DC/-12V DC | POS/COM | Power the communicator |
| DATA | DATA | KeyBus |


3. Programming the Interlogix NX-4V2, Interlogix NX-6V2 Alarm Panel via the LCD Keypad¶
Using the control panel‘s keypad enter these sections and set them as described:
Enable Contact ID reporting
| LCD keypad | Keypad Entry | Action Description |
|---|---|---|
| System ready | *89713 | Enter programming mode |
| Enter device address | 0# | To go to main panel programming menu |
| Enter location | 4# | To go to “Phone1 events reported” toggle menu |
| Loc#4 Seg#1 | 12345678* | All toggle options should be enabled. * to save and go to next menu |
| Loc#4 Seg#2 | 12345678* | All toggle options should be enabled. * to save and go back. |
| Enter location | 23# | To go to “Partition features” menu. |
| Loc#23 Seg#1 | ** | Press * twice to go to section 3 toggle options menu. |
| Loc#23 Seg#3 | 12345678*# | Segment 3. All toggle options should be enabled, press * to save and then # to save and # to go back to the main menu. |
| Enter location | 37# | To go to “Siren and system supervision” menu. |
| Loc#37 Seg#1 | ** | Press * twice to go to segment 3 toggle options menu. |
| Loc#37 Seg#3 | 12345678* | Segment 3. All toggle options should be enabled press * to save. |
| Loc#37 Seg#4 | 12345678*# | Segment 4. All toggle options should be enabled press * to press and then # to save and # to go back to the main menu. |
| Enter location | EXIT EXIT | Press “EXIT” twice to exit programming mode. |
4. Programming the Interlogix NX-4V2, Interlogix NX-6V2 Alarm Panel via the LED Keypad¶
Using the control panel’s keypad enter these sections and set them as described:
Enable Contact ID reporting
| LCD keypad | Keypad Entry | Action Description |
|---|---|---|
| LEDs of Ready, Power steady ON | *89713 | Enter programming mode |
| Service LED blinks | 0# | To go to main panel programming menu |
| Service LED blinks, Armed LED steady ON | 4# | To go to “Phone1 events reported” toggle menu |
| All zone LEDs are ON | 12345678* | All toggle options should be enabled. * to save and go to next menu |
| All zone LEDs are ON | 12345678* | All toggle options should be enabled. * to save and go back. |
| Service LED blinks, Armed LED steady ON | 23# | To go to “Partition features and reporting selection” menu. |
| Service LED blinks, Ready LED steady ON | ** | Press * twice to go to section 3 toggle options menu. |
| Service LED blinks, Ready LED steady ON | 12345678*# | Segment 3. All toggle options should be enabled, press * to save and then # to save and # to go back to the main menu. |
| Service LED blinks, Armed LED steady ON | 37# | To go to “Siren and system supervision” menu. |
| Service LED blinks, Ready LED steady ON | ** | Press * twice to go to segment 3 toggle options menu. |
| Service LED blinks, Ready LED steady ON | 12345678* | Segment 3. All toggle options should be enabled press * to save. |
| Service LED blinks, Ready LED steady ON | 12345678*# | Segment 4. All toggle options should be enabled press * to press and then # to save and # to go back to the main menu. |
| Service LED blinks, Armed LED steady ON | EXIT EXIT | Press “EXIT” twice to exit programming mode. |

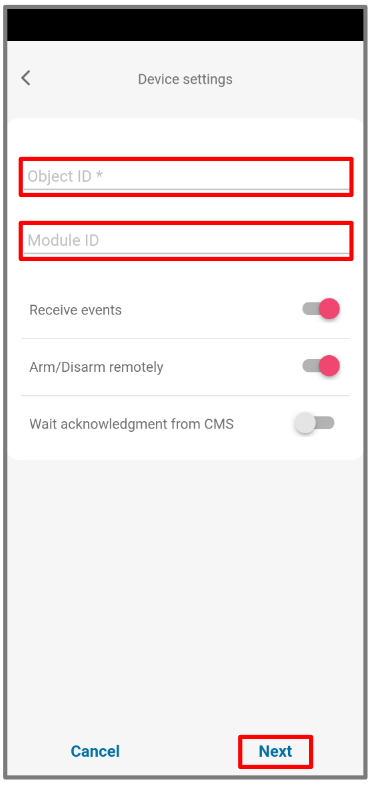

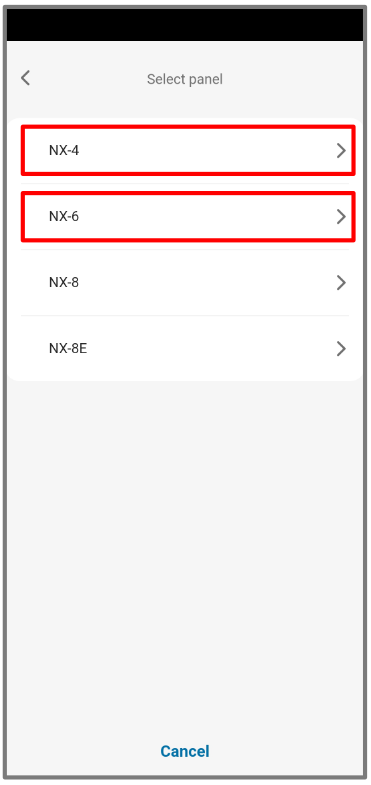

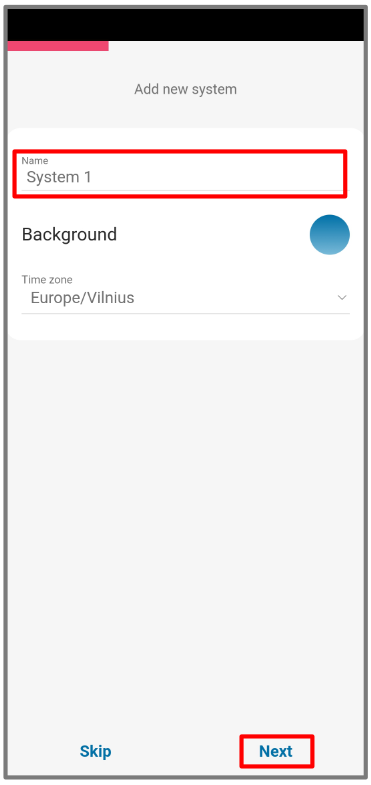

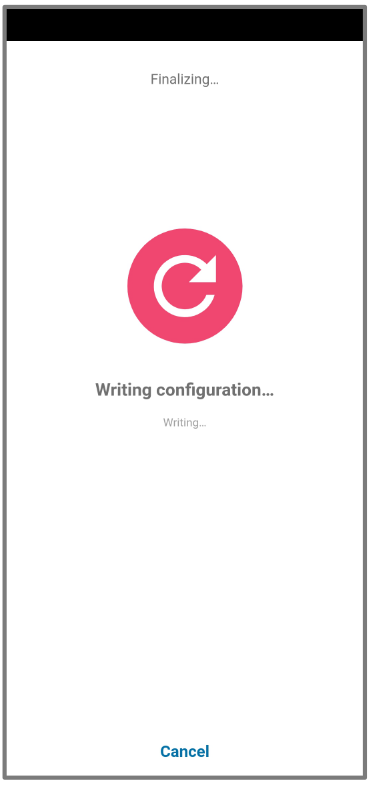

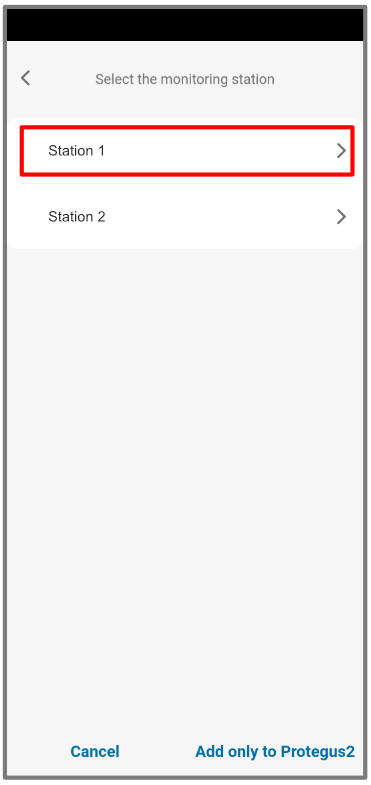

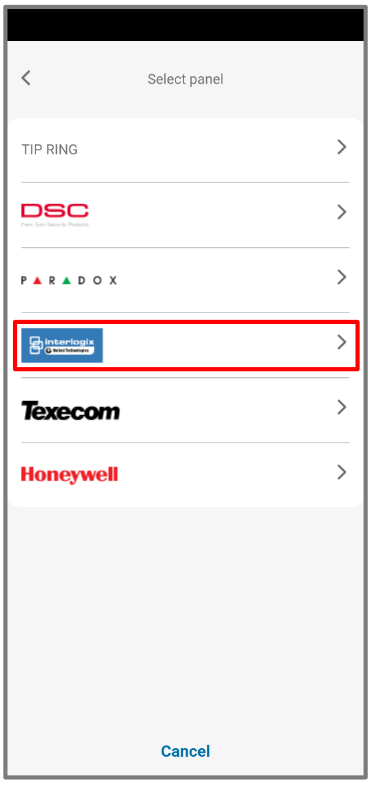

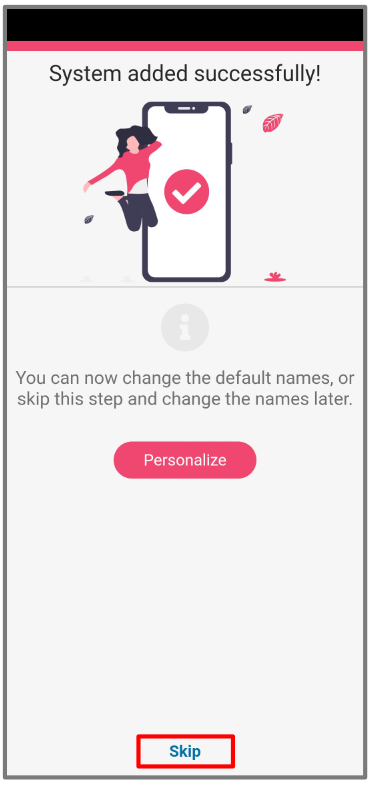

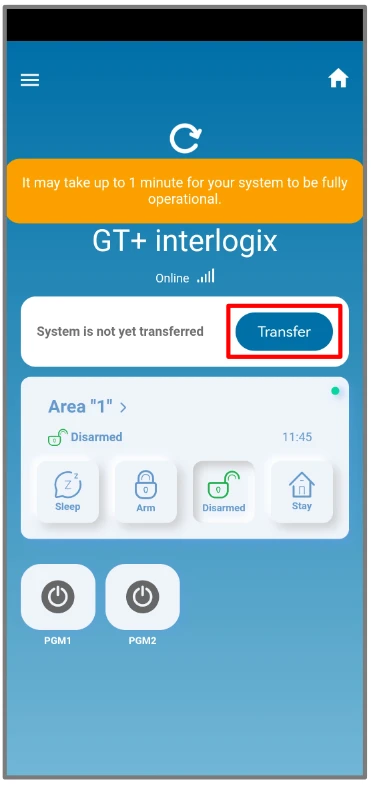

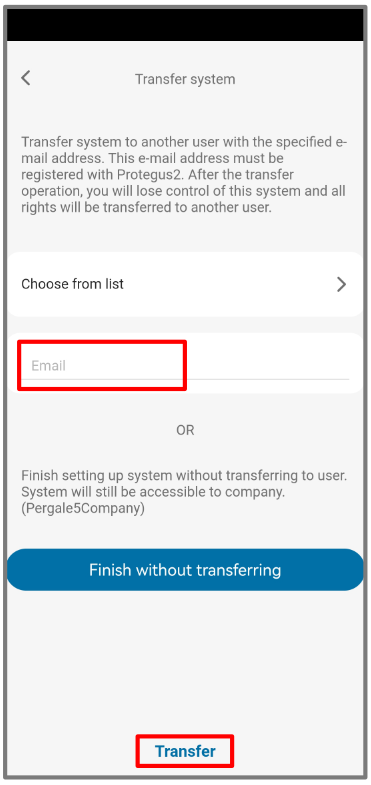

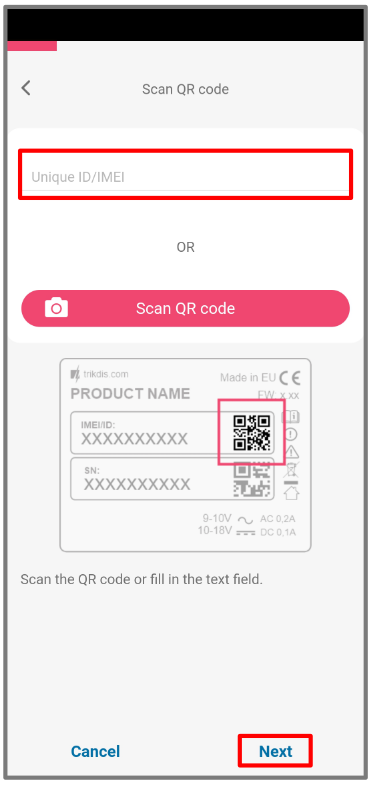

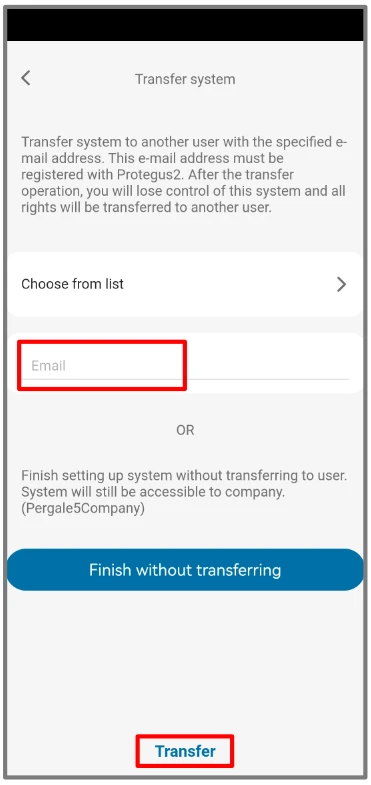

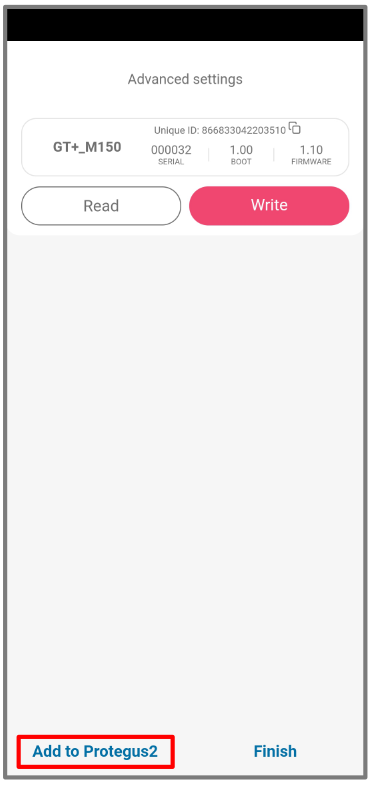

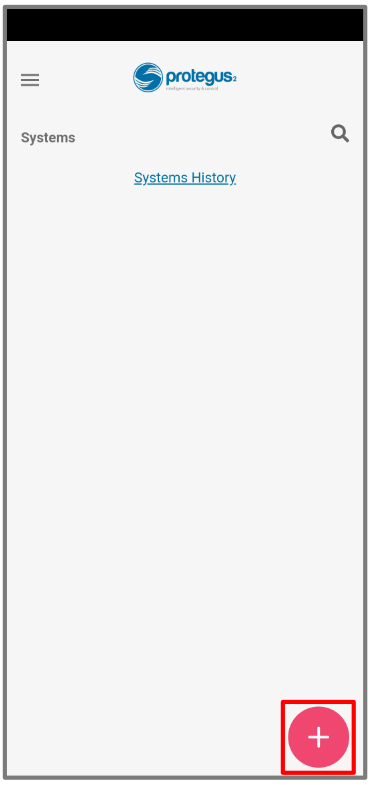

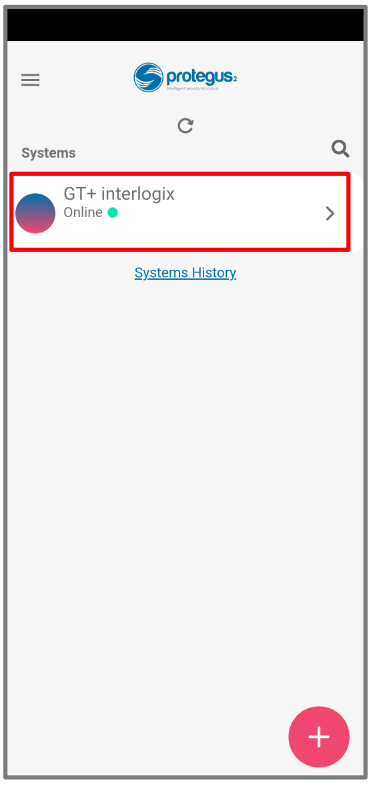

5. Add system to Protegus2¶
Tip
After completing the setup and installation perform a system check:
- Create an event:
- by arming/disarming the system with the control panel’s keypad.
- by triggering a zone alarm when the security system is armed.

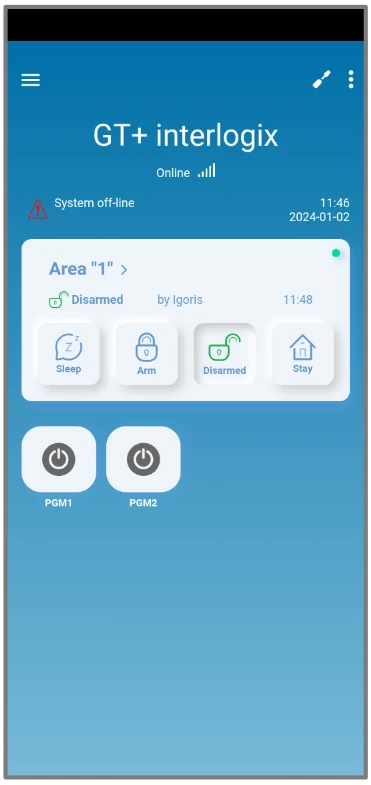

- Make sure that the event arrives to the CMS (Central Monitoring Station) and the Protegus2 app.
