Honeywell Vista with E16 quick setup¶

Short steps to connect the E16 communicator to Honeywell Vista panels (Ademco Vista-48, Vista-20, Vista-15), configure E16 for IP reporting, and add the system to Protegus2. Use this together with the full E16 manual for all other settings.

1. Prerequisites¶

• E16 communicator with LAN connected and a USB Mini-B cable available for configuration.
• Honeywell Vista panel (Ademco Vista-48, Vista-20, or Vista-15) with keypad access.
• Panel firmware version V5.3 or higher.
• CMS object ID / account number if reporting to CMS.
• Protegus2 account and communicator MAC / Unique ID.

2. Quick configuration with TrikdisConfig software¶

1. Download TrikdisConfig from www.trikdis.com and install it.
2. Open the E16 casing with a flat-head screwdriver.

3. Connect E16 to the computer with a USB Mini-B cable.
4. Run TrikdisConfig. The software will recognize the communicator and open the configuration window.
5. Click Read [F4] to load the current settings. If requested, enter the Administrator or Installer 6-digit code.

Complete the subsection that matches the installation:

• Protegus2 app if the system will be controlled remotely by users.
• Central Monitoring Station if the communicator will report to CMS.
• Complete both subsections if the communicator must support both CMS and Protegus2.

2.1 Settings for connection with Protegus2 app¶

In "System settings" window:

1. Select the Security panel model that will be connected to the communicator.
2. Select Remote Arm/Disarm if users must control the panel in Protegus2 with their keypad code.
3. For direct control of Paradox and Texecom panels, enter the Security panel PC download password. It must match the password set in the control panel.

In "User reporting" window, "PROTEGUS Cloud" tab:

4. Tick Enable connection to the Protegus Cloud.
5. Change the Protegus Cloud access Code if users should be asked to enter it when adding the system to Protegus2.

After finishing configuration, click Write [F5] and disconnect the USB cable.

2.2 Settings for connection with Central Monitoring Station¶

In "System settings" window:

1. Enter the Object ID provided by the Central Monitoring Station.
2. Select the Security panel model that will be connected to the communicator.

In "CMS reporting" window settings for "Primary channel":

3. Set Communication type to IP.
4. Select the protocol required by the receiver: TRK, DC-09_2007, DC-09_2012, or TL150.
5. Enter the receiver encryption key if the selected protocol requires it.
6. Enter the receiver Domain or IP and Port.
7. Select TCP or UDP.
8. Configure backup and parallel channels if the installation requires redundancy.

After finishing configuration, click Write [F5] and disconnect the USB cable.

3. Wiring¶

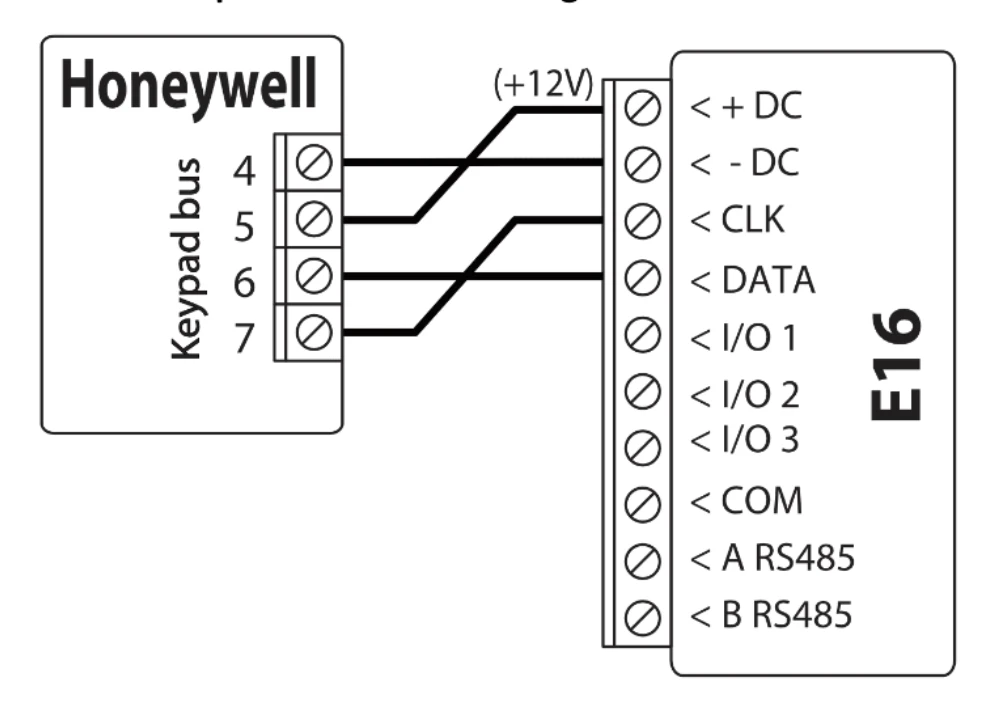

Connect the panel to E16 as shown below:

4. Panel programming¶

With the keypad connected to the panel:

1. Enter programming mode with installer code 4112, then 800.
2. Enable Contact ID events via LRR: enter [*][2][9][1][#].
3. If you want direct remote control, enable the second AUI address: enter [*][1][8][9][1][1][#].
4. Exit programming mode with [*][9][9].

5. Add system to Protegus2¶

1. Open Protegus2 and click Add new system.
2. Enter the E16 MAC / Unique ID.
3. Enter the system name and finish the wizard.
4. If you use keyswitch control instead of direct control, connect I/O 1 to the panel keyswitch zone and configure PGM1 in Protegus2.
5. Wait until the system shows as online.

6. System check¶

1. Arm and disarm the system from the keypad.
2. Trigger a test alarm while the system is armed.
3. Confirm that events reach the CMS and Protegus2.
