iO8-LoRa Wireless Expander

Download PDF

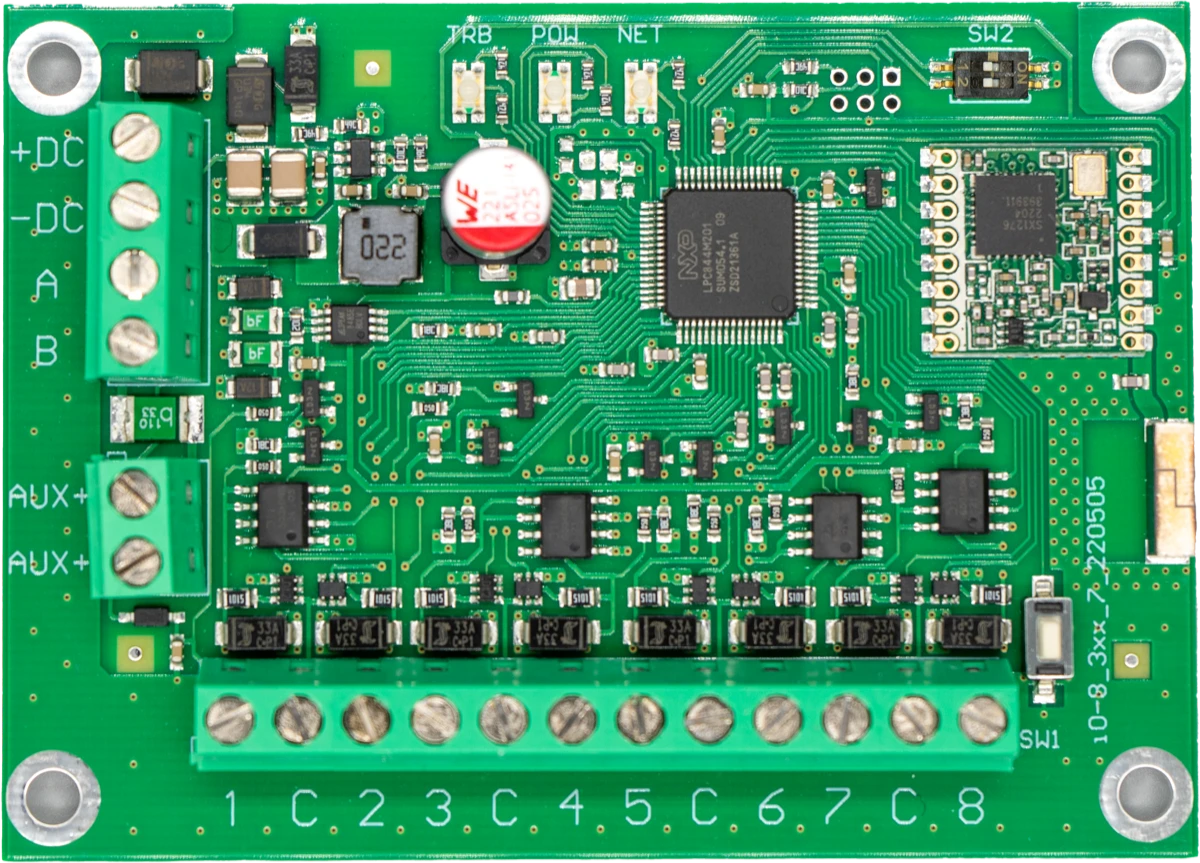

Photograph of the iO8-LoRa expander circuit board, showing its terminal blocks, indicator LEDs, SW1 button, and SW2 DIP switch.

1. Description

iO-8-LORA wireless expanders with RF-LORA transceiver increase the number of inputs and outputs of the "FLEXi" SP3 security panel using two-way RF communication.

Compatible with the SP3 security control panel and GATOR Cellular gate & door access controller. The iO-8-LORA wireless expander has 8 I/O terminals, each of which can be set as an input (IN) or as an output (OUT).

1.1 Features

Communication:

  • Line-of-sight wireless range up to 5000 m.

  • Up to 8 iO-8-LORA wireless expanders can be connected to the "FLEXi" SP3 control panel.

  • Products from HW iO8_x5xx_7_230419 version come with a standard antenna suitable for most applications. In cases where it is necessary to provide high-quality communication at the maximum possible distance, an antenna (AX-ANT-KIT – 433 MHz, AX-ANT01S SF – 868 MHz) with a higher radio signal gain should be used.

Inputs and outputs: - 8 I/O terminals, each one can be set as an input (IN) or output (OUT). Input (IN) types: ATZ, EOL, NC, NO. Different value of resistors can be used in EOL and ATZ type circuits.

Connection:

  • The iO-8-LORA wireless expander is connected to the "FLEXi" SP3 control panel via the RF-LORA transceiver.

1.2 Specifications

Parameter Description
Transmission frequency 4F modification: 433,3 - 434,7 MHz /​ 8F modification: 867 - 869 MHz
Modulation type LORA
Power supply voltage 10-26 V DC
Current consumption Up to 50 mA (stand-by) /​ Up to 120 mA (short-term, while sending)
Report encryption Yes
Range in open space Up to 5000 m
Dual purpose terminals [I/​O] 8, IN or OUT function selected during programming. When IN is selected, available types: NC, NO, EOL, EOL_T, 3EOL, ATZ, ATZ_T. When OUT is selected, the terminal becomes open collector (OC) type with up to 100 mA current
Operating environment Temperature from –20 °C to +50 °C, relative humidity – up to 80% at +20 °C
Dimensions 65 x 90 x 12 mm
Weight 80 g

1.3 Expander elements

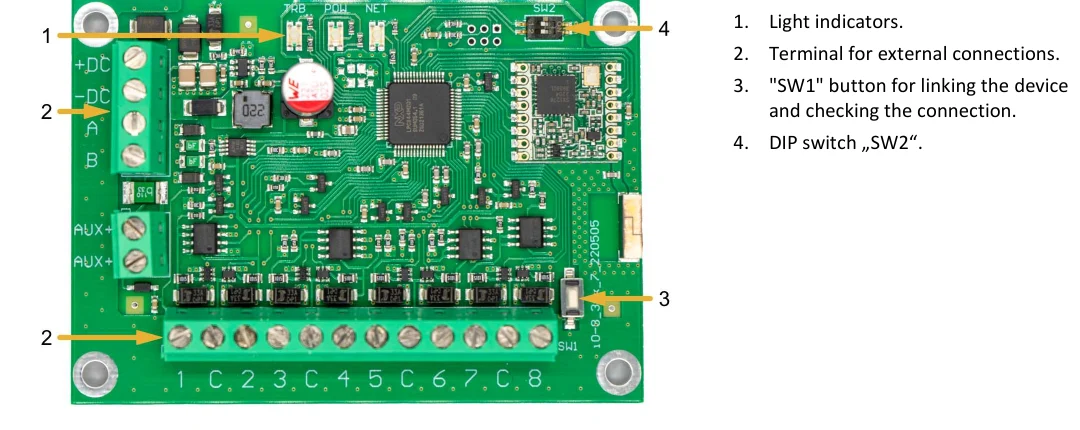

Numbered photograph of the iO8-LoRa expander board on the left. Callout 1 marks the light indicators; 2 marks the terminals for external connections; 3 marks the SW1 button for linking the device and checking the connection; 4 marks the SW2 DIP switch. The numbered names appear in a list on the right.

DIP switch 'SW2' settings

For product HW iO8_x5xx_7_230419 version:

  1. Radio frequency (OFF - RF1; ON - RF2). Intended for changing the radio channel if the current channel is heavily loaded.
  2. Modulation type (OFF - fast; ON - slow). The ON position allows you to increase the communication distance by about 2 times (depending on the environmental conditions). But if a quality connection is ensured using the OFF position, it is recommended to use it. In the ON position, system performance decreases.

NOTE: In iO8-LORA and RF-LORA devices, the positions of the SW switch must match! Otherwise, the radio communication will not work!

1.4 Purpose of terminals

Terminal Description
+DC Power terminal (10-26 V DC positive)
-DC Power terminal (10-26 V DC negative)
A Terminal A of RS485 data bus
B Terminal B of RS485 data bus
1- 8 Input/​output terminals
C Common negative terminal

1.5 LED indication of operation

Indicator Light status Description
NETWORK Off No RF signal
NETWORK Green blinking RF signal level from 0 to 10. Sufficient strength is 3
POWER Off No supply voltage
POWER Green blinking Normal supply voltage level
POWER Yellow blinking Low supply voltage level (≤11.5 V)

2. Wiring schematics

2.1 Schematic for connecting the power supply

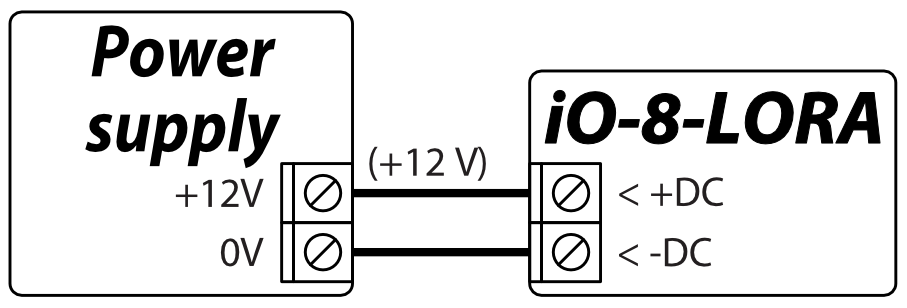

Wiring diagram: Power supply to iO-8-LORA. Power: +12V to +DC, 0V to -DC; the positive wire is labelled (+12 V).

2.2 Schematics for connecting inputs

There are 8 terminals IO1–IO8 (inputs) on the iO-8-LORA expander board for connecting sensor circuits. Any terminal can be set as an input and assigned zone attributes: circuit type (NO, NC, EOL, EOL_T, 3EOL, ATZ, ATZ_T); sensitivity to temporary circuit events; zone function (Delay, Instant, Instant Stay, Interior, Interior Stay, Fire, Keyswitch, 24_hour, Silent, Silent 24h).

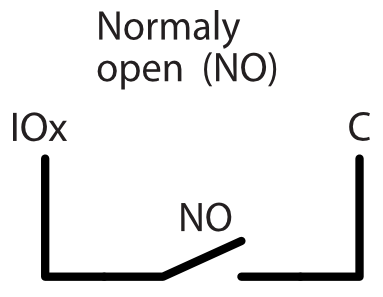

Normaly open (NO) input circuit: an NO contact connects IOx to C when closed. No resistor is shown.

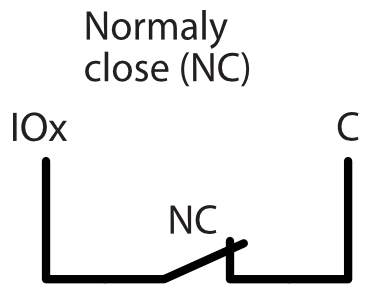

Normaly close (NC) input circuit: an NC contact connects IOx to C. No resistor is shown.

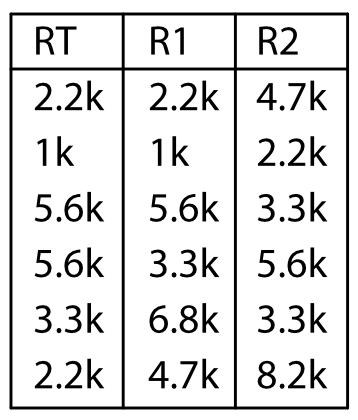

Resistor value table with columns RT, R1, R2. The six rows are 2.2k, 2.2k, 4.7k; 1k, 1k, 2.2k; 5.6k, 5.6k, 3.3k; 5.6k, 3.3k, 5.6k; 3.3k, 6.8k, 3.3k; and 2.2k, 4.7k, 8.2k.

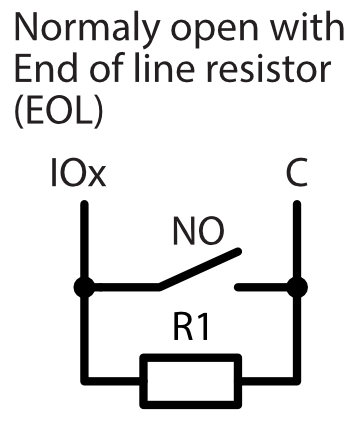

Normaly open with End of line resistor (EOL) circuit: IOx and C connect through resistor R1, with an NO contact wired in parallel across R1.

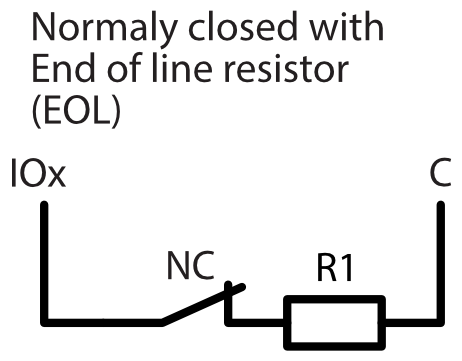

Normaly closed with End of line resistor (EOL) circuit: IOx connects through an NC contact and then resistor R1 in series to C.

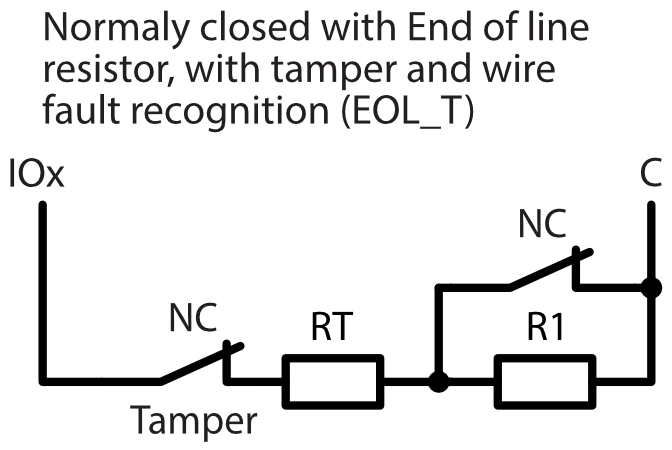

Wiring diagram: normally closed EOL_T input between IOx and C. The NC tamper contact and RT resistor are in series; the NC detector contact and R1 resistor are in parallel between RT and C.

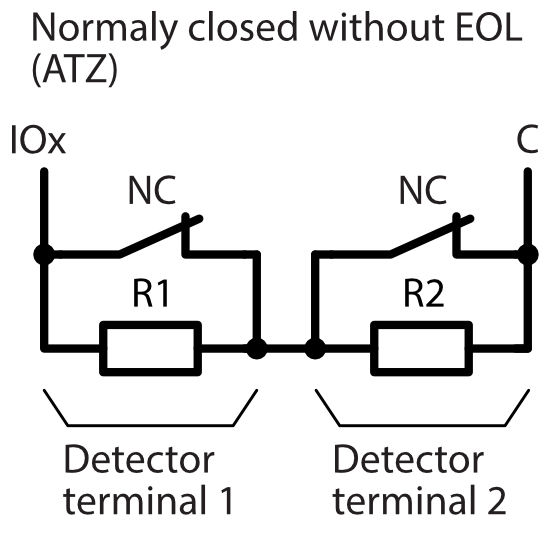

Wiring diagram: normally closed input without EOL (ATZ) between IOx and C. Detector terminal 1 has an NC contact in parallel with R1; detector terminal 2 has an NC contact in parallel with R2. The two detector circuits are in series.

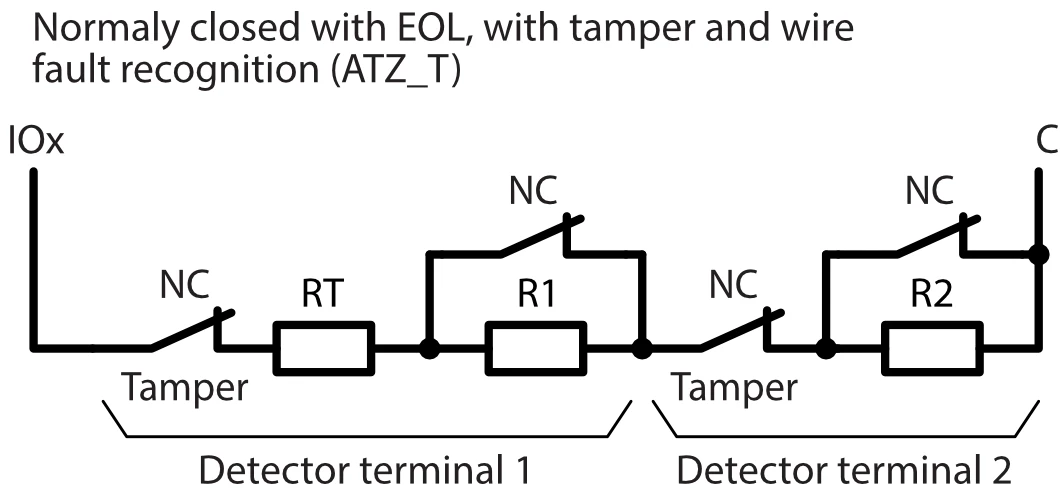

Wiring diagram: normally closed ATZ_T input between IOx and C. Detector terminal 1 has an NC tamper contact and RT in series, followed by an NC contact in parallel with R1. Detector terminal 2 has an NC tamper contact in series, followed by an NC contact in parallel with R2.

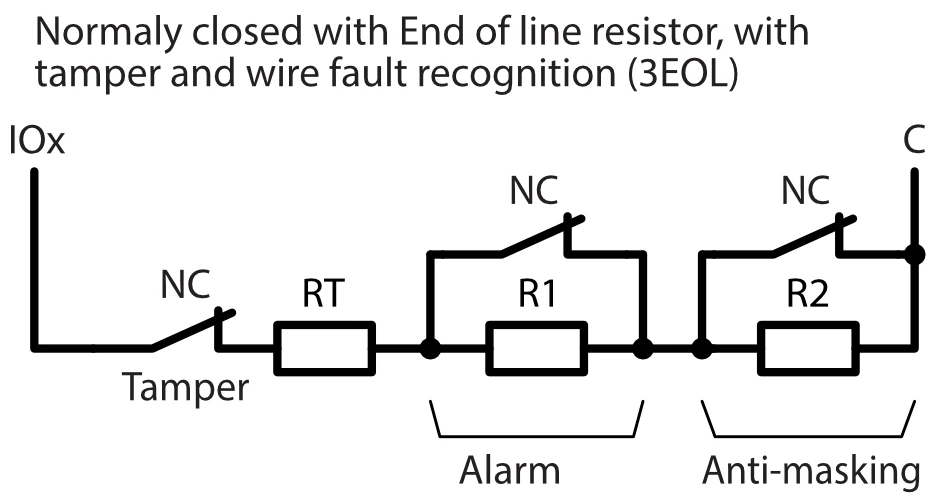

Wiring diagram: normally closed 3EOL input between IOx and C. An NC tamper contact and RT are in series with the alarm and anti-masking circuits. The alarm NC contact is in parallel with R1; the anti-masking NC contact is in parallel with R2.

2.3 Schematic for connecting a relay

Using the relay terminals, it is possible to remotely control (turn on/off) various electrical devices. The iO-8-LORA wireless expander universal I/O terminal must be configured as an output (OUT) and must have the definition "Remote control" assigned.

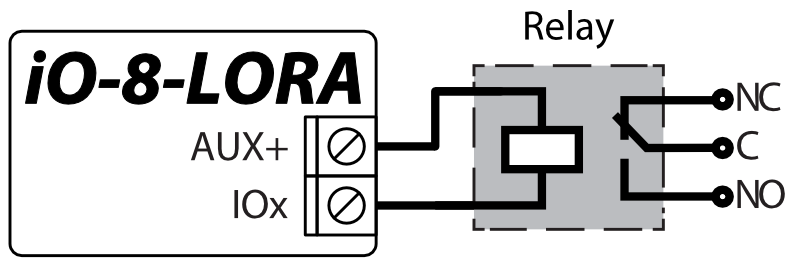

Wiring diagram: iO-8-LORA to relay. AUX+ and IOx connect to the relay coil. The relay provides contacts labelled NC, C and NO.

2.4 Schematic for connecting iO-8-LORA expanders to the control panel "FLEXi" SP3

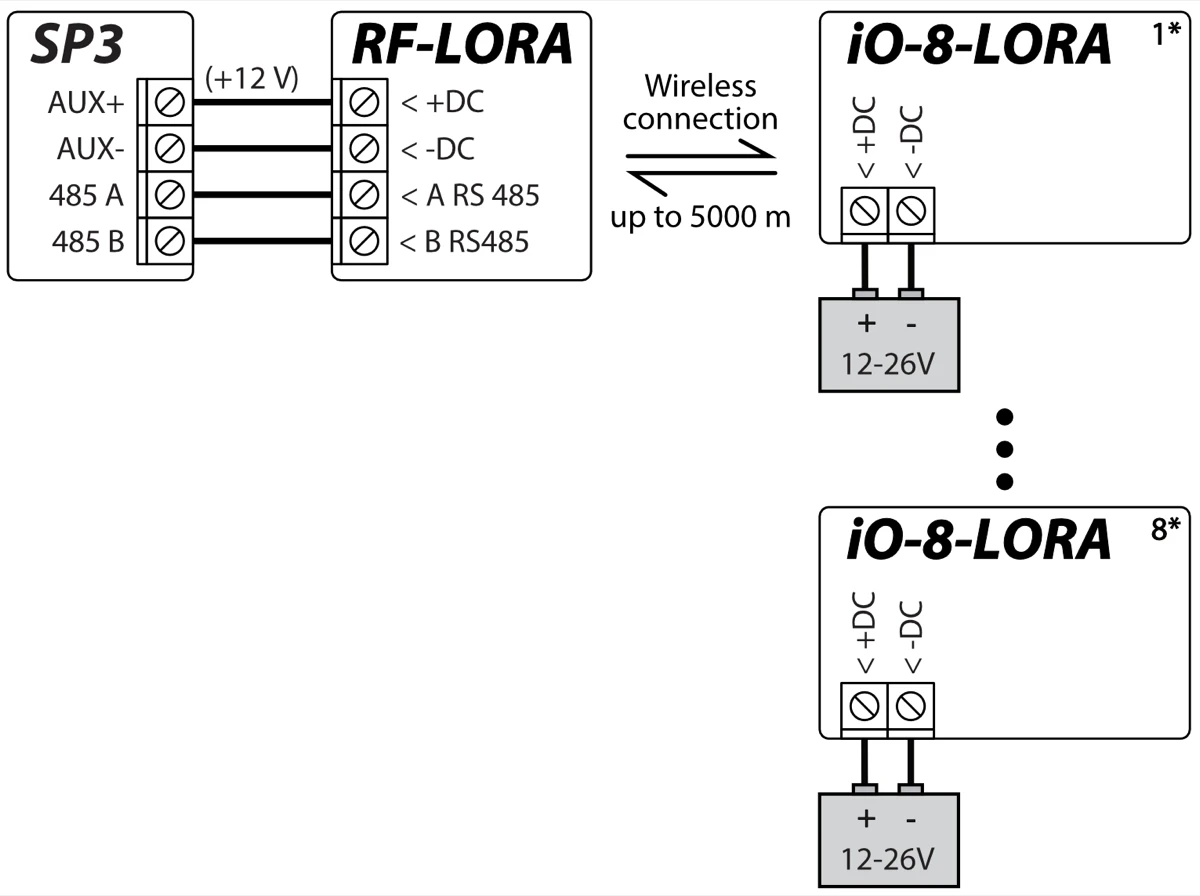

Wiring diagram: SP3 to RF-LORA and up to eight iO-8-LORA expanders. SP3 AUX+ (+12 V) to RF-LORA +DC, AUX- to -DC, 485 A to A RS 485, and 485 B to B RS485. RF-LORA connects wirelessly to the expanders over up to 5000 m. Each iO-8-LORA has a separate 12-26 V supply connected to +DC and -DC.

Note

An RF-LORA transceiver must be connected to the "FLEXi" SP3 security panel and then up to 8 pcs. can be connected iO-8-LORA wireless expanders.

3. Security control panel “FLEXi” SP3

  1. An RF-LORA transceiver must be connected to the "FLEXi" SP3 control panel.

  2. Turn on the power supply of the "FLEXi" SP3 control panel.

  3. Turn on the power supply to the iO-8-LORA wireless expander.

  4. Launch TrikdisConfig.

  5. Connect the "FLEXi" SP3 to a computer using a USB Mini-B cable or connect to the "FLEXi" SP3 remotely.

  6. Click the button Read [F4] for the program to read the parameters currently set for the "FLEXi" SP3 control panel. If a window for entering the Administrator code opens, enter the six-symbol administrator code.

  7. In the "Modules" list, select "iO-8-LORA expander".

  8. In the "Serial No." field, enter the serial number of the module iO-8-LORA.

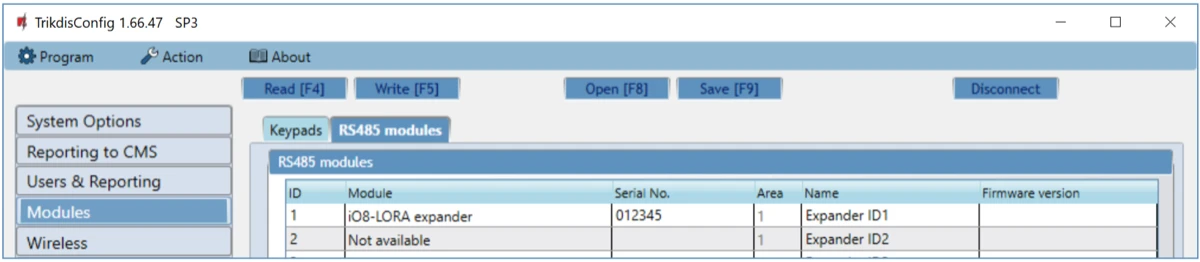

TrikdisConfig SP3 Modules window, RS485 modules tab. Row 1 lists an iO8-LORA expander with a serial number entered, Area 1 and Name Expander ID1. Row 2 shows Not available, Area 1 and Name Expander ID2.

  1. In the "Zones" tab, make settings for the expander's inputs.

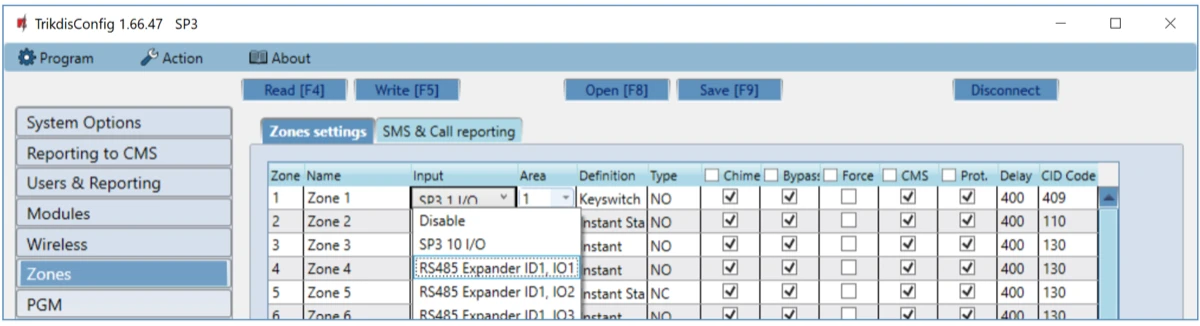

TrikdisConfig SP3 Zones window, Zones settings tab. The open Input list includes Disable, SP3 10 I/O and RS485 Expander ID1 inputs IO1, IO2 and IO3; RS485 Expander ID1, IO1 is highlighted for a zone.

  1. In the "PGM" tab, configure the expander's PGM outputs.

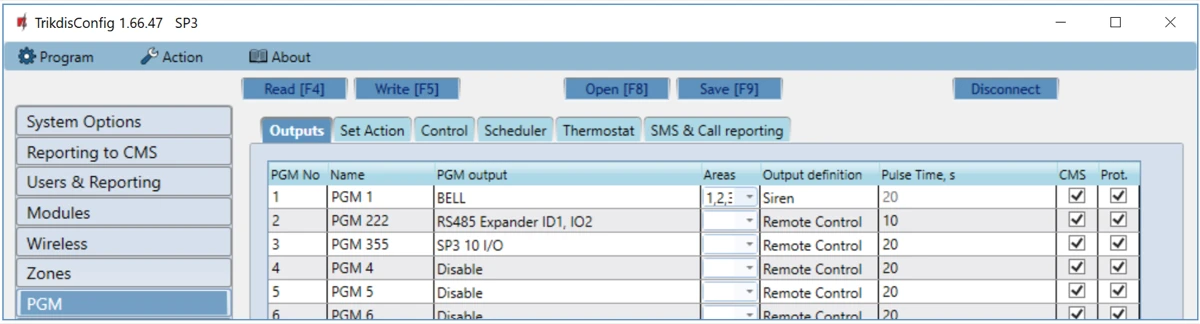

TrikdisConfig SP3 PGM window, Outputs tab. The PGM output column shows BELL for PGM 1 and RS485 Expander ID1, IO2 for PGM 222. PGM 222 has Output definition Remote Control and Pulse Time, s of 10.

  1. Once configuration is complete, click the Write [F5] button.

  2. Wait for the updates to finish.

  3. Click the "Disconnect" button and disconnect the USB cable.

4. Safety precautions

The iO-8-LORA wireless expander should only be installed and maintained by qualified personnel.

Please read this manual carefully prior to installation in order to avoid mistakes that can lead to malfunction or even damage to the equipment.

Always disconnect the power supply before making any electrical connections.

Any changes, modifications or repairs not authorized by the manufacturer shall render the warranty void.

Crossed-out wheeled trash bin symbol indicating the product must not be disposed of with household waste.Please adhere to your local waste sorting regulations and do not dispose of this equipment or its components with other household waste.
