RF-LoRa Wireless Expander

Download PDF

1. Description

The RF-LORA transceiver with iO-LORA and iO-8-LORA wireless expanders increases the number of inputs and outputs of the "FLEXi" SP3 control panel using two-way RF communication.

Compatible with the SP3 security control panel, GATOR Cellular and GATOR WiFi gate & door access controllers. Up to 8 LORA modules (iO-LORA, iO-8-LORA, PB-LORA) can be connected to the "FLEXi" SP3 control panel using the RF-LORA transceiver.

1.1 Features

Communication:

  • Line-of-sight wireless range up to 5000 m.

  • One RF-LORA transceiver can be connected to the "FLEXi" SP3 control panel.

  • The product comes with a standard antenna suitable for most applications. In cases where it is necessary to provide high-quality communication at the maximum possible distance, an antenna (AX-ANT-KIT – 433 MHz, AX-ANT01S_SF – 868 MHz) with a higher radio signal gain should be used.

Connection:

  • The RF-LORA transceiver is connected to the "FLEXi" SP3 control panel via the RS485 bus.

1.2 Specifications

Parameter Description
Transmission frequency 8F modification: 867-869 MHz /​ 4F modification: 433,3-434,7 MHz
Modulation type LORA
Power supply voltage 9-26 V DC
Current consumption Up to 50 mA (stand-by) /​ Up to 150 mA (short-term, while sending)
Report encryption Yes
Range in open space Up to 5000 m
Operating environment Temperature from –20 °C to +50 °C, relative humidity – up to 80% at +20 °C
Dimensions 62 x 82 x 25 mm
Weight 80 g

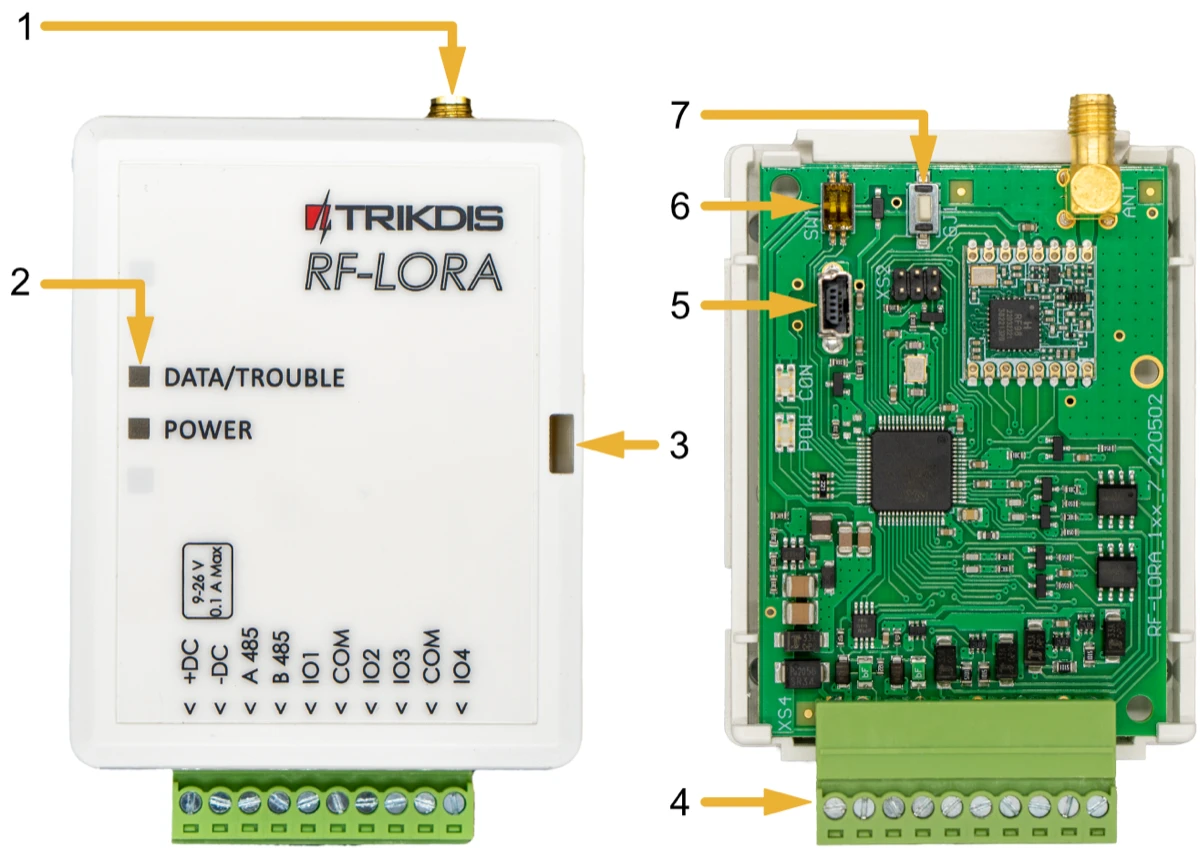

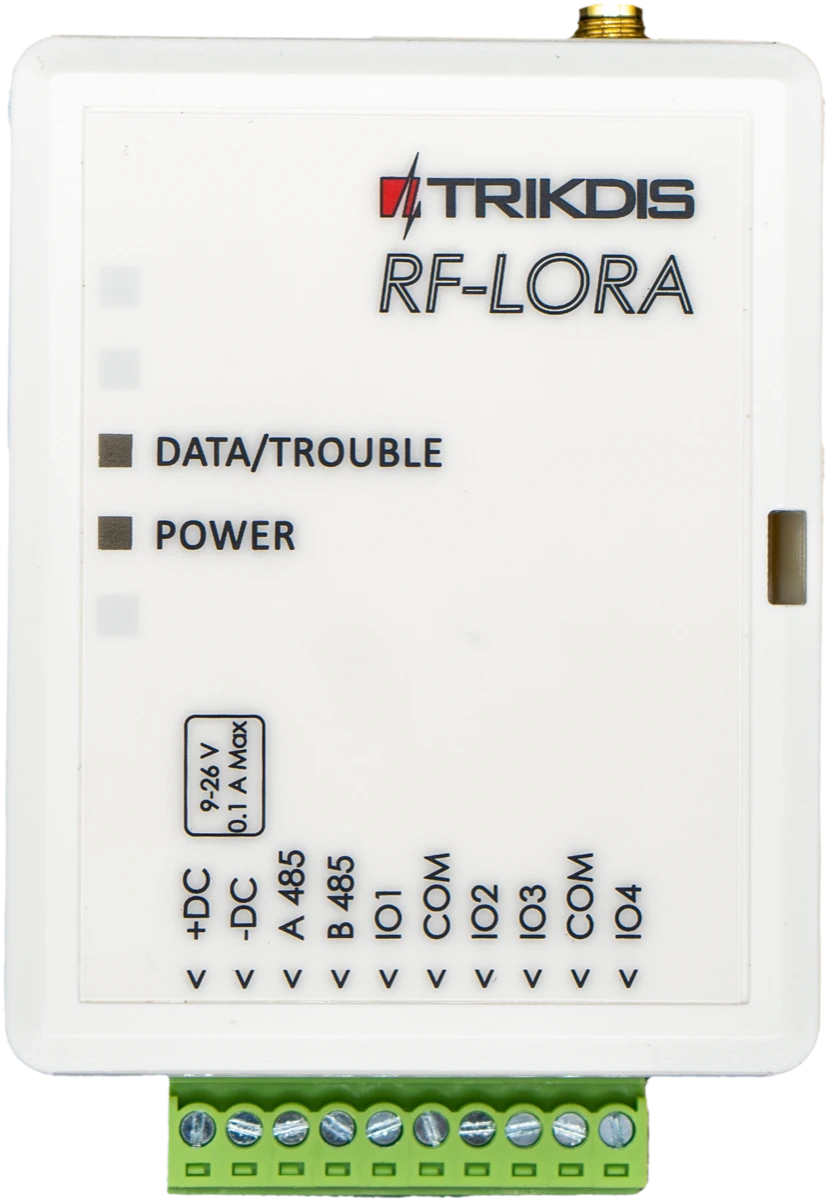

1.3 Expander elements

Note:

1.4 Purpose of terminals

Terminal Description
+DC Power terminal (9-26 V DC positive)
-DC Power terminal (9-26 V DC negative)
A 485 RS485 bus A contact
B 485 RS485 bus B contact
IO1-IO4 Not used
COM Not used

1.5 LED indication of operation

Indicator Light status Description
DATA/TROUBLE Blinking/Lighting red Communication with the module is broken
DATA/TROUBLE Blinking green/red LORA modules linking mode
DATA/TROUBLE Green lights up for 3 seconds Pre-bound LORA module (in learning mode)
POWER Off No supply voltage
POWER Green blinking Normal supply voltage level
POWER Yellow blinking Low supply voltage level (≤11.5 V)
POWER Yellow No communication with "FLEXi" SP3 control panel via RS485

2. Wiring schematics

2.1 Fastening

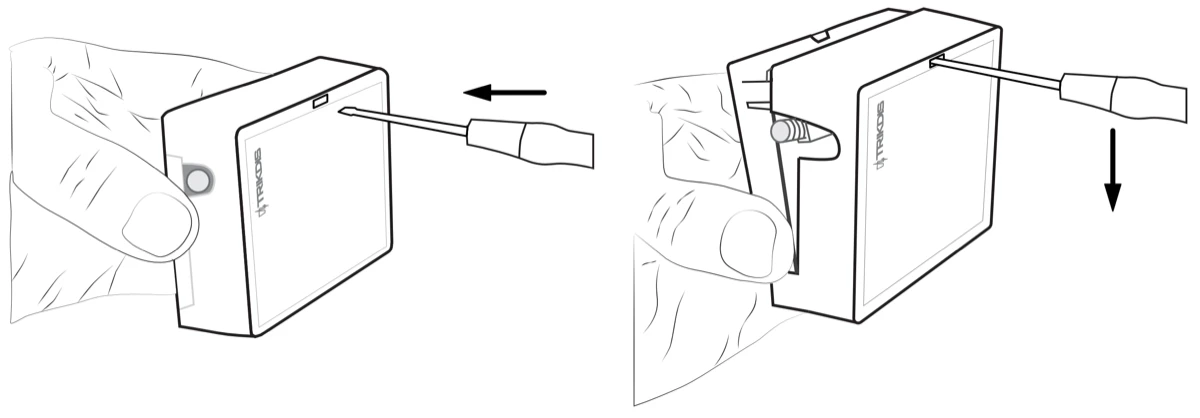

  1. Remove the top lid.

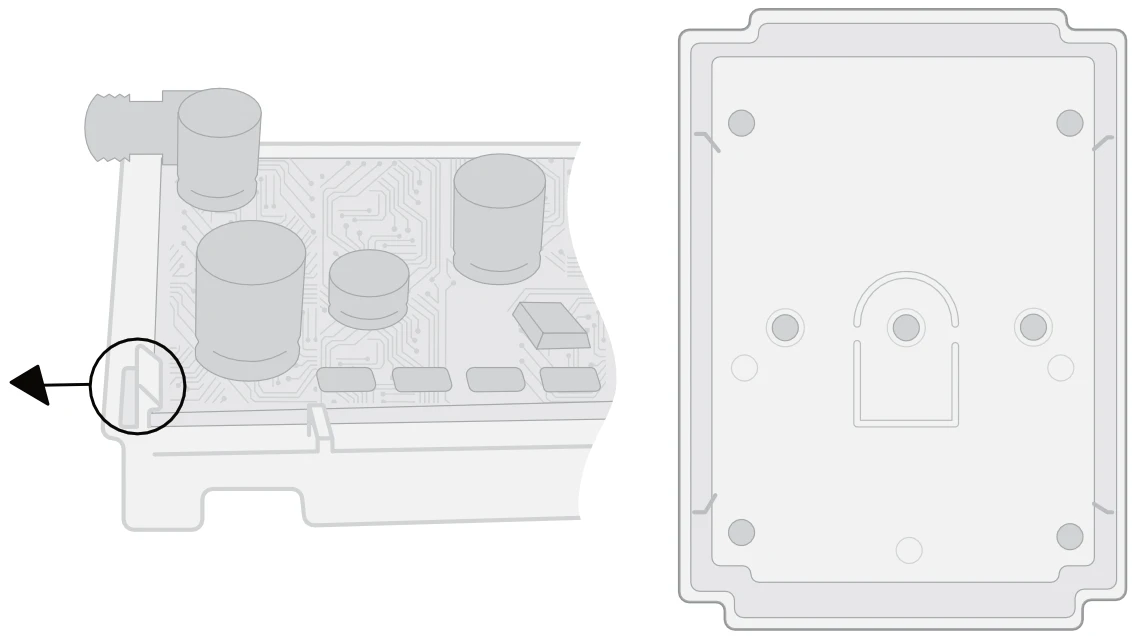

  1. Remove the PCB board.

  2. Fasten the base of the case in the desired place using screws.

  3. Reinsert the PCB board.

  4. Close the top lid.

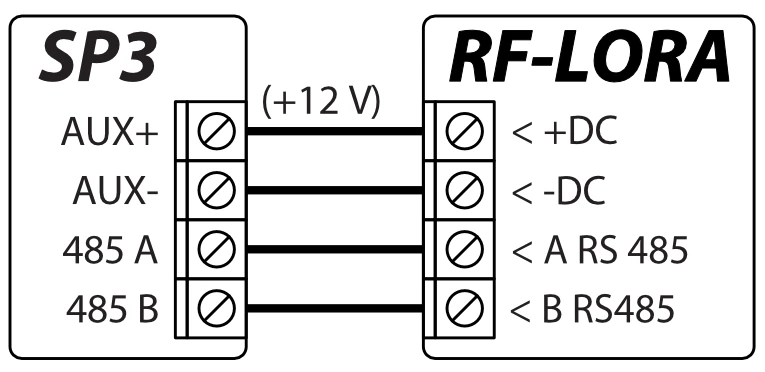

2.2 Schematic of RF-LORA transceiver connection to "FLEXi" SP3 control panel

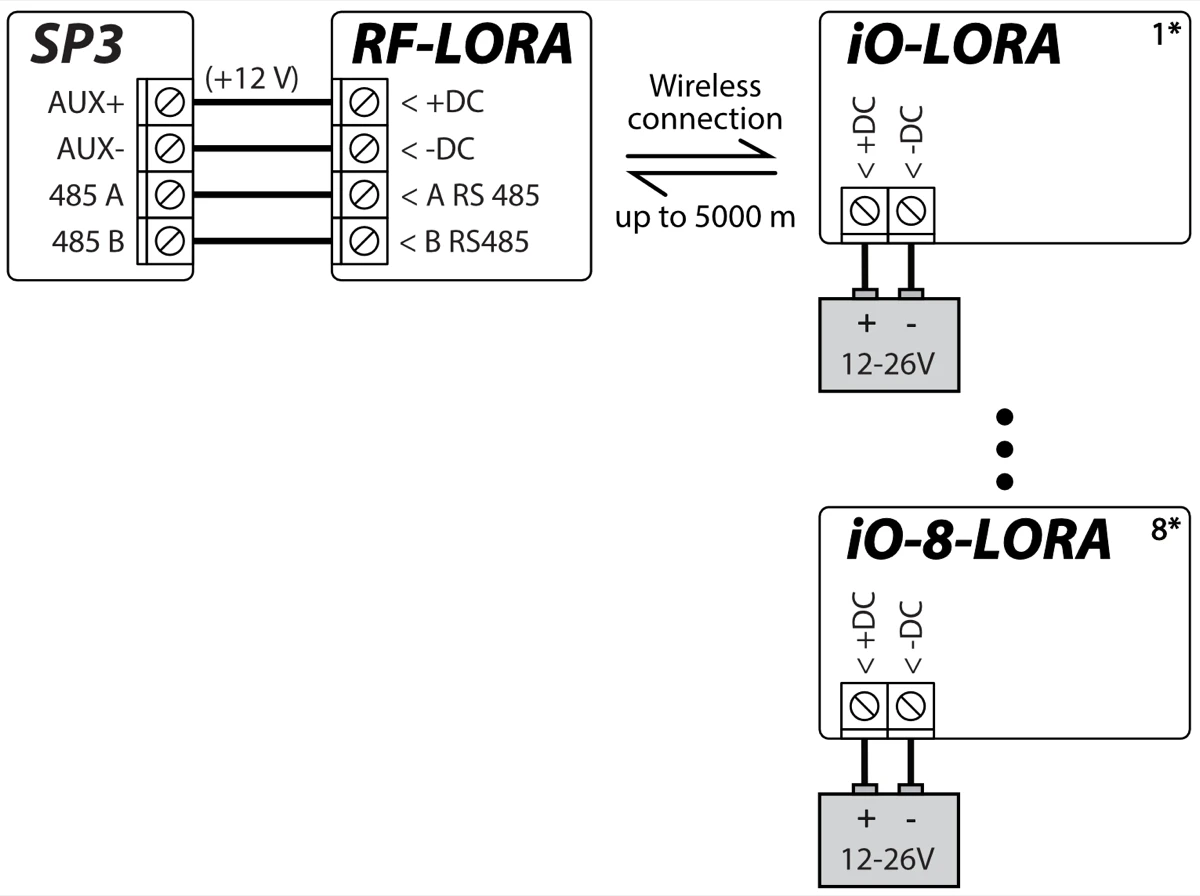

2.3 Schematics for connecting LORA modules

3. Configuration with TrikdisConfig

  1. An RF-LORA transceiver must be connected to the "FLEXi" SP3 control panel.

  2. Turn on the power supply of the "FLEXi" SP3 control panel.

  3. Turn on the power supply to the iO-LORA and/or iO-8-LORA wireless expanders.

  4. Launch TrikdisConfig.

  5. Connect the "FLEXi" SP3 to a computer using a USB Mini-B cable or connect to the "FLEXi" SP3 remotely.

  6. Click the button Read [F4] for the program to read the parameters currently set for the "FLEXi" SP3 control panel. If a window for entering the Administrator code opens, enter the six-symbol administrator code.

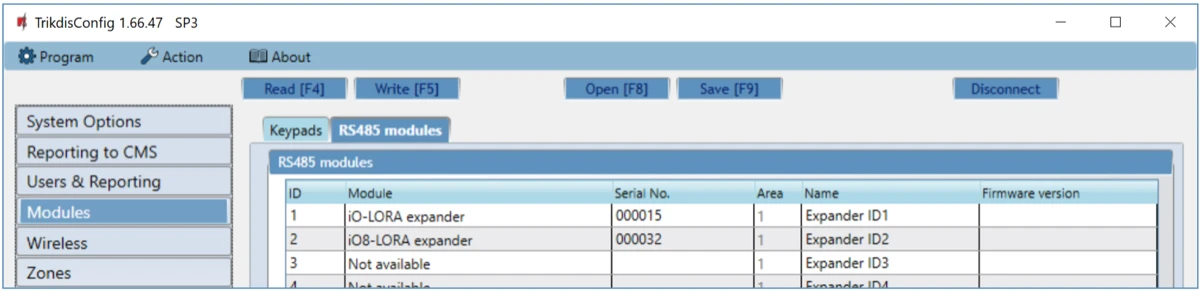

  7. In the "Modules" list, select "iO-LORA expander" ("iO-8-LORA expander").

  8. In the "Serial No." field, enter the serial number of the module iO-LORA (iO-8-LORA).

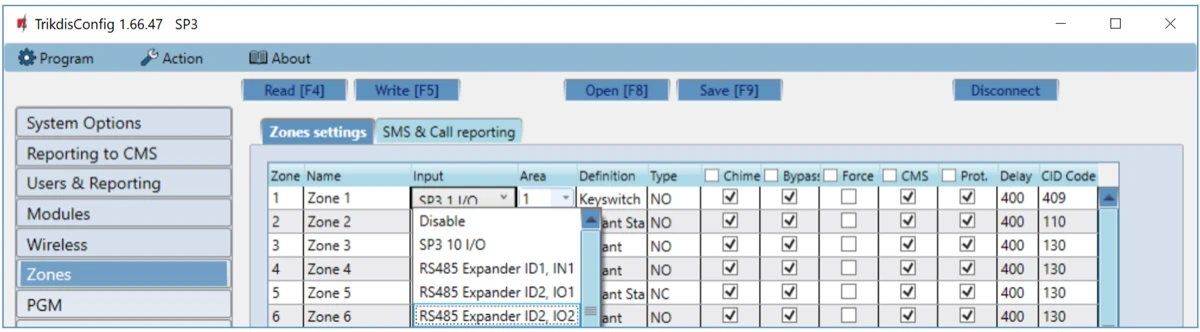

  1. In the "Zones" tab, make settings for the expander's input.

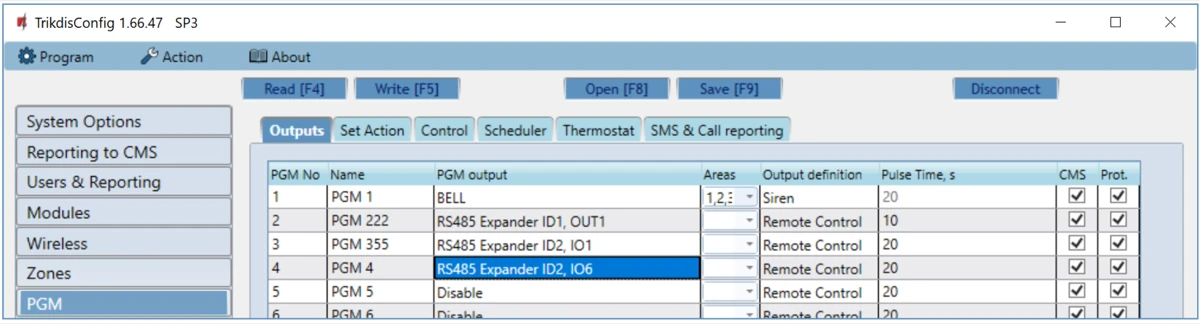

  1. In the "PGM" tab, configure the expander's PGM output.

  1. Once configuration is complete, click the Write [F5] button.

  2. Wait for the updates to finish.

  3. Click the "Disconnect" button and disconnect the USB cable.

  4. Trigger the inputs and switch outputs to test the device.

4. Safety precautions

Only qualified personnel may install and maintained the intrusion alarm module.

Please read this manual carefully prior to installation in order to avoid mistakes that can lead to malfunction or even damage to the equipment.

Always disconnect the power supply before making any electrical connections.

Any changes, modifications or repairs not authorized by the manufacturer shall render the warranty void.

Please adhere to your local waste sorting regulations and do not dispose of this equipment or its components with other household waste.
