FLEXi / Keypad SK-LCD TouchPad – Brief User Guide

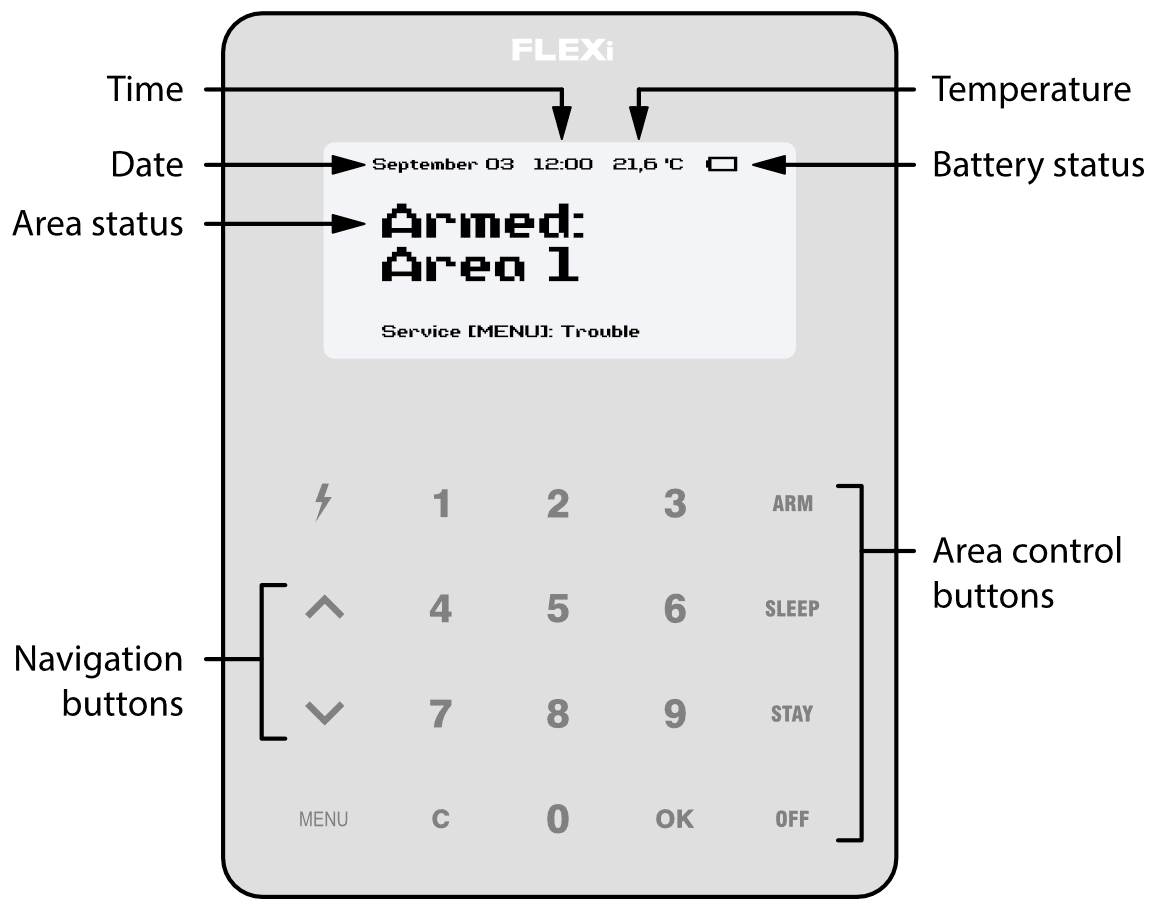

1. Keypad overview

Note

The keypad SK-LCD TouchPad for alarm system control displays the states of 64 zones and 8 partitions. Also, the SK-LCD TouchPad keypad can be assigned to control one or more desired areas (keypad firmware version from FW:1.41, control panel firmware version from FW:SP3_xxx4_0119. The keypad firmware version can be seen by pressing MENU 5 0). The keypad will display the statuses of the assigned area and area zones.

2. Alarm system arming / disarming

2.1 Alarm system ARM

Make sure all areas are not damaged.

  1. Press ARM button.

  2. Enter [User Code].

  3. If the system has only one partition, skip steps 4 and 5.

  4. Press the buttons for the areas you want to control.

  5. Confirm your selection by pressing the OK button.

  6. Exit the premises within the Exit Delay time.

During the Exit Delay countdown, the time for the exit will be displayed on the keypad, and the text will appear on the keypad when the arming mode is activated: Armed: Area.

2.2 Alarm system DISARM

  1. Press OFF button.

  2. Enter [User Code].

  3. If the system has only one partition, skip steps 4 and 5.

  4. Press the buttons for the areas you want to control.

  5. Confirm your selection by pressing the OK button.

When the alarm is disarmed, the text Disarmed: Area will appear on the keypad display.

Note

For area status changing into the opposite one it is sufficient to enter User code and select the preferred area. To delete symbols or command entered, press button C.

2.3 SLEEP mode activation

(Premises perimeter is secured. Movement inside is allowed. If you open the entrance door, the alarm will actuate immediately):

  1. Enter [User Code].

  2. Confirm your selection by pressing the OK button.

2.4 STAY mode activation

(Premises perimeter is secured. Movement inside is allowed. Any opening of entrance door enables time delay during which you have to disarm the alarm):

  1. Enter [User Code].

  2. Confirm your selection by pressing the OK button.

3. Emergency buttons

To send emergency message to your security service:

  • Panic – hold 1 button pressed for 3 sec.

  • Medical Aid – hold 4 button pressed for 3 sec.

  • Fire Service – hold 7 button pressed for 3 sec.

4. Illumination brightness and indication sound adjustment

To adjust keypad illumination brightness and indication sound:

  1. Press 5 button.

5. Entering or changing User or Master codes

To enter a new or change the existing User code:

  1. Enter [Administrator Code] (default code: 123456).

6. Two-wire fire (smoke) detector reset

To reset two-wire fire (smoke) detectors:

  • Hold button pressed for 3 seconds.

Note

Two-wire fire detectors do not reset automatically after fire emergency detection. They can be reset only manually.

7. Temporary zone monitoring deactivation (BYPASS function)

BYPASS function activation:

  1. Press 3 button.

BYPASS function deactivation:

Repeat the same actions as in deactivation of particular zone monitoring.

8. Deleting User codes

To delete User code:

  1. Enter [Administrator Code] (default code: 123456).
