FLEXi / Keypad SK-LCD button – Brief User Guide¶

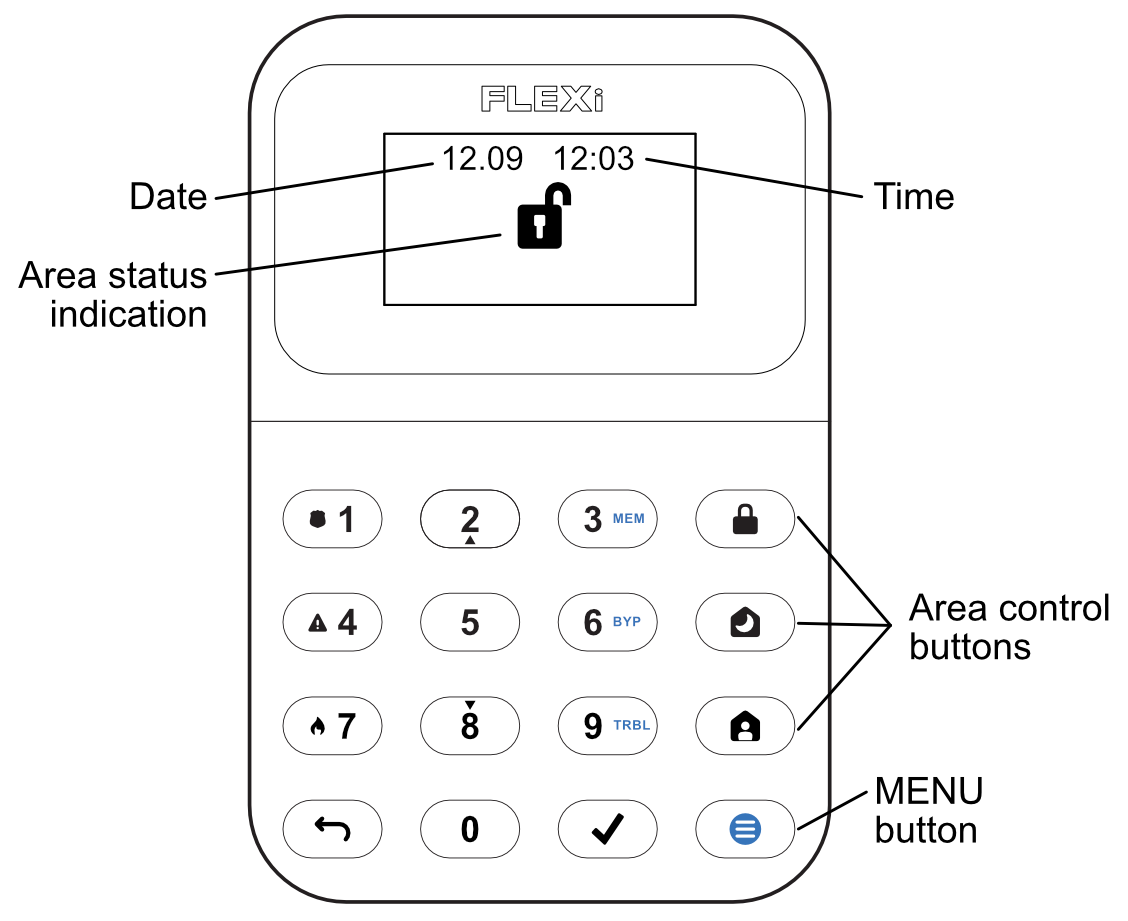

1. Keypad overview¶

2. Alarm system arming / disarming¶

2.1 Alarm system ARM¶

1. Make sure all zones are not violated.

2. Press the button.

3. Enter User code.

4. Select the button of area to be activated.

5. Press button.

6. Exit the premises within time delayed.

When the system is armed, the icon will light up.

2.2 Alarm system DISARM¶

1. Enter User code.

2. Press the button of particular area you wish to disarm.

3. Press button.

When the alarm is disarmed the icon must be illuminated.

2.3 SLEEP mode activation¶

(Premises perimeter is secured. Movement inside is allowed. If you open the entrance door, the alarm will actuate immediately):

1. Press button.

2. Enter User code.

3. Press the button of area to be activated.

4. Press button.

5. SLEEP mode will turn on immediately, without exit delay.

The icon will illuminate when SLEEP mode is on.

2.4 STAY mode activation¶

(Premises perimeter is secured. Movement inside is allowed. Any opening of entrance door enables time delay during which you have to disarm the alarm):

1. Press button.

2. Enter User code.

3. Press the button of area to be activated.

4. Press button.

5. STAY mode will turn on immediately, without exit delay.

The icon will illuminate when STAY mode is on.

3. Emergency buttons¶

3.1 To send emergency message to your security service¶

• Police – hold 1 button pressed for 3 sec.

• Medical Aid – hold 4 button pressed for 3 sec.

• Fire Service – hold 7 button pressed for 3 sec.

4. Illumination brightness and indication sound adjustment¶

4.1 Brightness of the keypad buttons¶

1. Press button, then 5 3.

2. Select the preferred brightness of the keypad button backlight using the 2 and 8 buttons.

3. Press to save the new value.

4.2 The brightness of the LCD display¶

4. Press button, then 5 2.

5. Select the preferred illumination brightness of zone indication using 2 and 8 buttons.

6. Press to save the new value.

4.3 Keypad keystroke volume¶

7. Press button, then 5 1.

8. Select the preferred sound indication level using 2 and 8 buttons.

9. Press to save the new value.

   Note

   Turn off keypad lighting in standby mode. Pressing and then press 5 4. Switch the keypad indicator backlight status in standby mode by pressing 1 (backlight on) or 2 (backlight off). Press to save the new value.

5. Entering or changing / User or Master codes¶

5.1 To enter a new or change the existing User code¶

1. Press button, then 0.

2. Enter Master code, default code – 1234.

3. Enter User's double-digit sequence number, e.g., 02.

   Note

   Sequence number of Master code - 01.

4. Enter a new User code twice.

5. Press the sequence numbers of areas which should be controlled by User.

6. Press button. Press the button to exit.

6. Fire (smoke) detector reset¶

6.1 To reset fire (smoke) detectors¶

• Hold button pressed for 3 seconds.

  Note

  Fire (smoke) detectors do not reset automatically after fire emergency detection. They can be reset only manually.

7. Temporary zone monitoring deactivation (BYPASS function)¶

7.1 BYPASS function activation¶

1. Press button, then 6.

2. Enter the alarm control code.

3. Enter a double-digit sequence number of a particular zone to disable its monitoring. To disable the monitoring of several zones, enter double-digit numbers of such several zones.

4. Press button. The icon will appear on the LCD screen.

7.2 BYPASS function deactivation¶

Repeat the same actions as in deactivation of particular zone monitoring.

8. Deleting User codes¶

8.1 To delete User code¶

1. Press button, then 0.

2. Enter Master code.

3. Enter User's double-digit sequence number, e.g., 02.

4. Press keypad button. A sound signal will be heard.

5. Press button to exit.

9. Graphic symbols¶

Symbol	Description	Symbol	Description
	Control panel not connected		Fire loop trouble
	Partition 1 Armed		Network trouble list
	Partition 4 Disarmed		CMS 1 (2) trouble
	Partition 2 Stay		Cloud trouble
	Partition 3 Sleep		SIM card trouble
	MENU button		SIM card password trouble
	ENTER function button		SIM card network trouble
	Partition		WiFi trouble
	Alarm		RS485 interface trouble
	Fire		SIM card 2 trouble
	User code		LAN trouble
	User		Wireless low battery
	Entry/Exit		Power trouble
	Zone open		Bell trouble
	Bypass		Tamper trouble
	Memory		Antimasking trouble
	Trouble		Wireless trouble
	System trouble list		Expander module trouble
	AC power trouble		Settings
	Battery trouble		Volume
	AUX overcurrent		LCD brightness
	Time not set		Keypad brightness
	Bell overcurrent		Standby light O-On / I-Off
	Bell missing		Info
