Incoming events

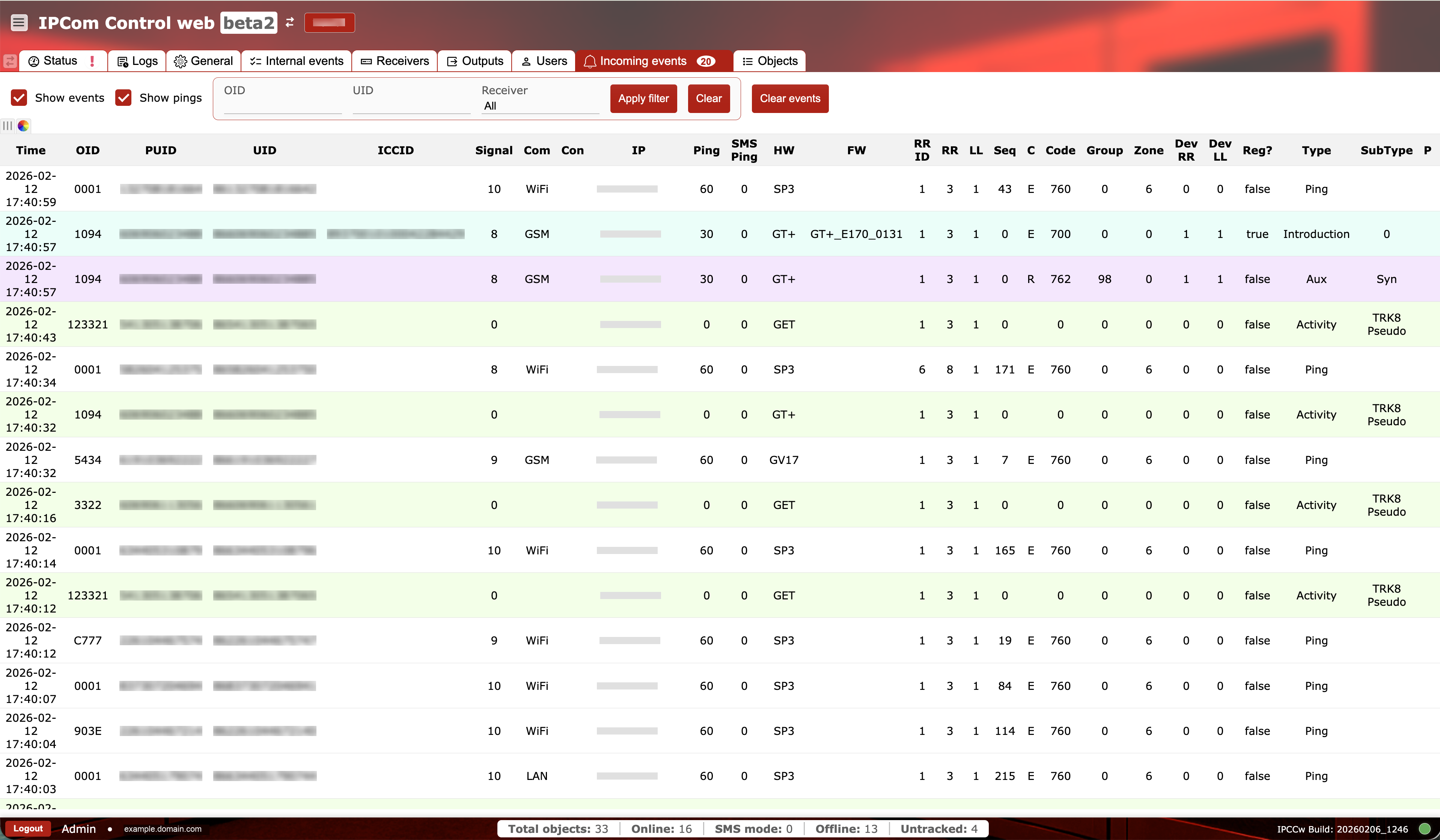

Incoming events tab full-screen view

Purpose: Monitor live incoming device events and pings, and filter them by device or receiver.

1. When to use

  • When validating that devices are sending events.
  • When troubleshooting routing, connectivity, or event decoding.

2. Sections and why they matter

2.1 Filters and actions

  • Show events and Show pings toggle which message types appear.
  • Filters for OID, UID, and Receiver narrow the stream to a specific device or instance.
  • Apply filter updates the view, Clear resets filter fields, and Clear events clears the current list.

Filters are essential for high-volume receivers where scrolling the raw stream is impractical.

Incoming events tab filters and actions section

2.2 Incoming event table

The table is wide and grouped by purpose:

  • Identification: Time, OID, PUID, UID, ICCID identify the device.
  • Connectivity: Signal, Com (communication type), Con (protocol), IP, Ping, SMS Ping show transport health.
  • Device version: HW and FW help correlate behavior with hardware or firmware revisions.
  • Routing: RR ID (route identifier), RR (receiver route value), and LL (line value) show routing context; Dev RR and Dev LL are device-reported routing values. Reg? indicates registration status.
  • Event details: Seq, C, Code, Group, Zone, Type, SubType, P define the event payload.

Use these columns to confirm that events are correctly decoded and routed to the intended output. For full field definitions, see Glossary in the IPcom navigation.

2.3 Operational checks and actions

Use two quick passes during incident triage: first make sure the stream view is trustworthy, then validate routing and payload fields.

Monitor these in runtime:

  • Filter state left active unintentionally. Alert cue: operators miss events because the view is narrowed.
  • Time drift and delayed rows. Alert cue: latency spike from device to receiver.
  • Routing mismatch between RR/LL and expected receiver path. Alert cue: events appear under wrong route context.
  • Repeated bad combinations in Code/Group/Zone. Alert cue: decode/parsing mismatch after config changes.

Confirm before production use:

  • Clear returns the table to the expected full stream before broad incident triage.
  • Identification fields (OID, UID, PUID) map to known objects.
  • Transport fields (Con, IP, Ping, SMS Ping) are consistent with the device communication mode.
