Outputs¶

Purpose: Configure output destinations for event delivery and automation integrations.

1. When to use¶

• When creating or updating CMS or automation routes.
• When troubleshooting delivery to a specific destination.

2. Sections and why they matter¶

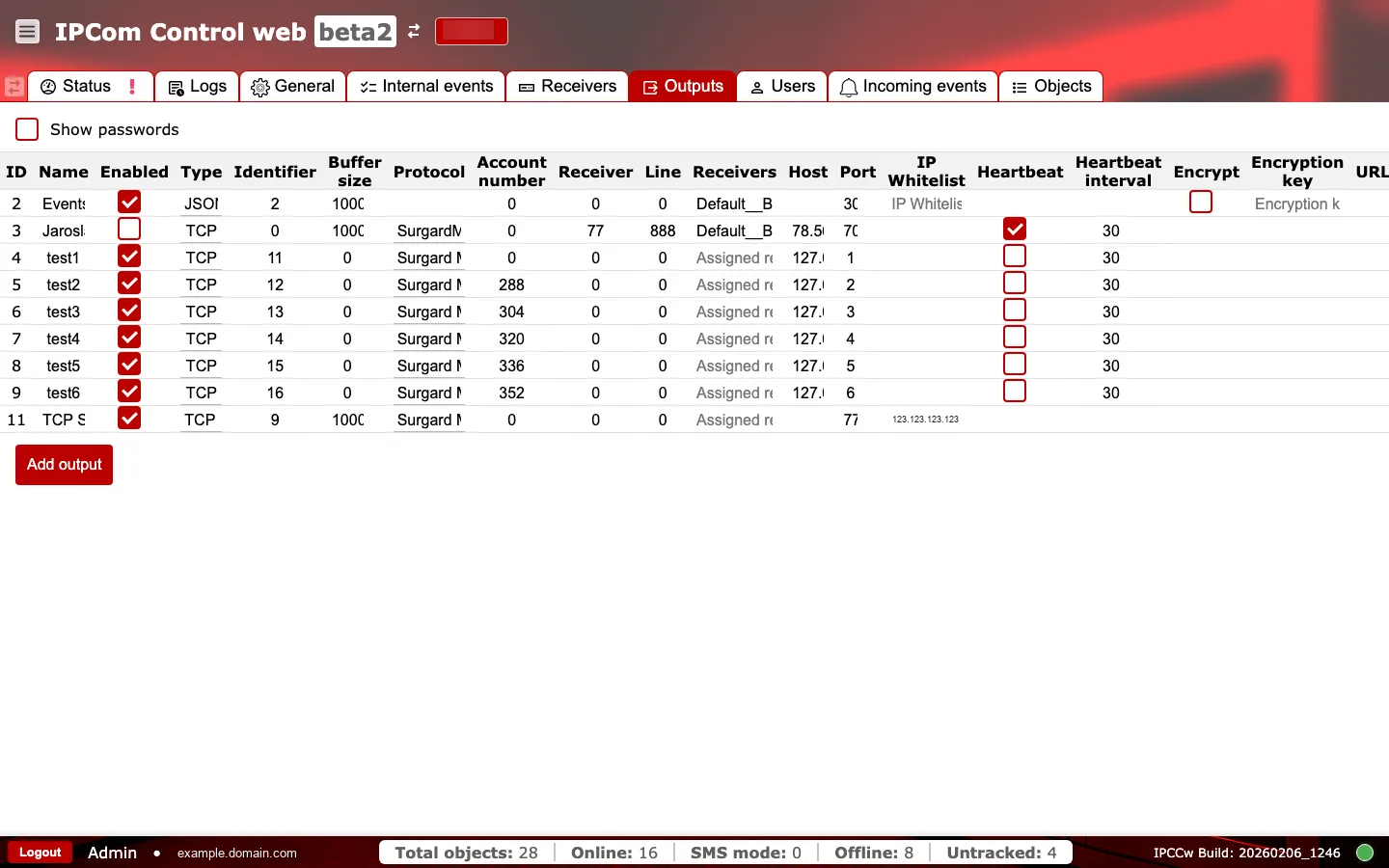

2.1 Outputs table¶

Each row represents a destination and its routing configuration. Key fields:

• ID and Name: identify the output.
• Enabled: controls whether events are sent to this destination.
• Type and Protocol: describe the output transport.
• Identifier and Account number: routing identifiers expected by the destination system.
• Receiver and Line: receiver-side routing identifiers.
• Receivers: assigned receiver group for this output.
• Host and Port: remote destination address.
• Buffer size: queue limit per output used to detect delivery bottlenecks.
• Heartbeat and Heartbeat interval: connection health checks.
• Encrypt and Encryption key: secure the transport when required (API-backed integrations use a fixed-length key).
• IP Whitelist: restricts allowed destination IPs.
• Filters: event routing filters that control which events are sent.

Available Type options:

• TCP
• COM Port
• JSON Server
• TCP Server
• Webhook

Available Protocol options:

• Surgard MLR2
• Monas 3
• Surgard MLR2 8
• Surgard MLR2 No End
• Ademco 685
• Ademco 685 CID
• SurgardMRL2000 CID
• SIA DC-09
• Surgard MLR2 Line with Account

Misconfigured fields here are a common cause of undelivered events, so validate changes against the destination system requirements.

Buffer size is a queue limit per output. High or growing queue usage indicates destination-side delays or protocol mismatch and can lead to delayed alarm delivery.

Protocol-specific field usage varies by integration and must match the CMS parser profile used in your deployment.

2.2 Add output¶

Use Add output to create a new destination and populate routing identifiers and network values.

2.3 Operational checks and actions¶

Use two quick passes after any change: first monitor runtime behavior, then confirm configuration details before enabling production delivery.

Monitor these in runtime:

• Buffer size growth on active outputs. Alert cue: queue does not drain while devices continue generating events.
• Endpoint/protocol edits without coordinated CMS changes. Alert cue: delivery failures or decode errors.
• Newly enabled output before destination readiness. Alert cue: immediate buffer growth and failed connection attempts.

Confirm before production use:

• Output id is unique and greater than 0; name is not empty.
• Type, Protocol, and Identifier match the CMS integration profile.
• OID, Receiver number, and Line match expected routing in CMS.
• If encryption is enabled, encryption_key length is exactly 16 characters.
• Output IP Whitelist and Host policy align with Networking and firewall guidance.
• Encryption key character set/encoding is agreed with your integration team.
• Retry/backoff and queue persistence behavior is documented for your deployment.
• Run controlled test events per protocol before production enablement.

3. Operations runbook¶

• Events not arriving at destination: verify Enabled, destination Host/Port, protocol choice, and receiver/line mapping.
• Frequent reconnects: tune Heartbeat interval, verify network stability, and confirm destination accepts the configured protocol.
• Queue growth on one output: temporarily disable the problematic output, fix endpoint settings, then re-enable and watch buffer recovery.
• Changes break delivery: compare with a known working output and roll back to the last stable values before retrying.
