Receivers

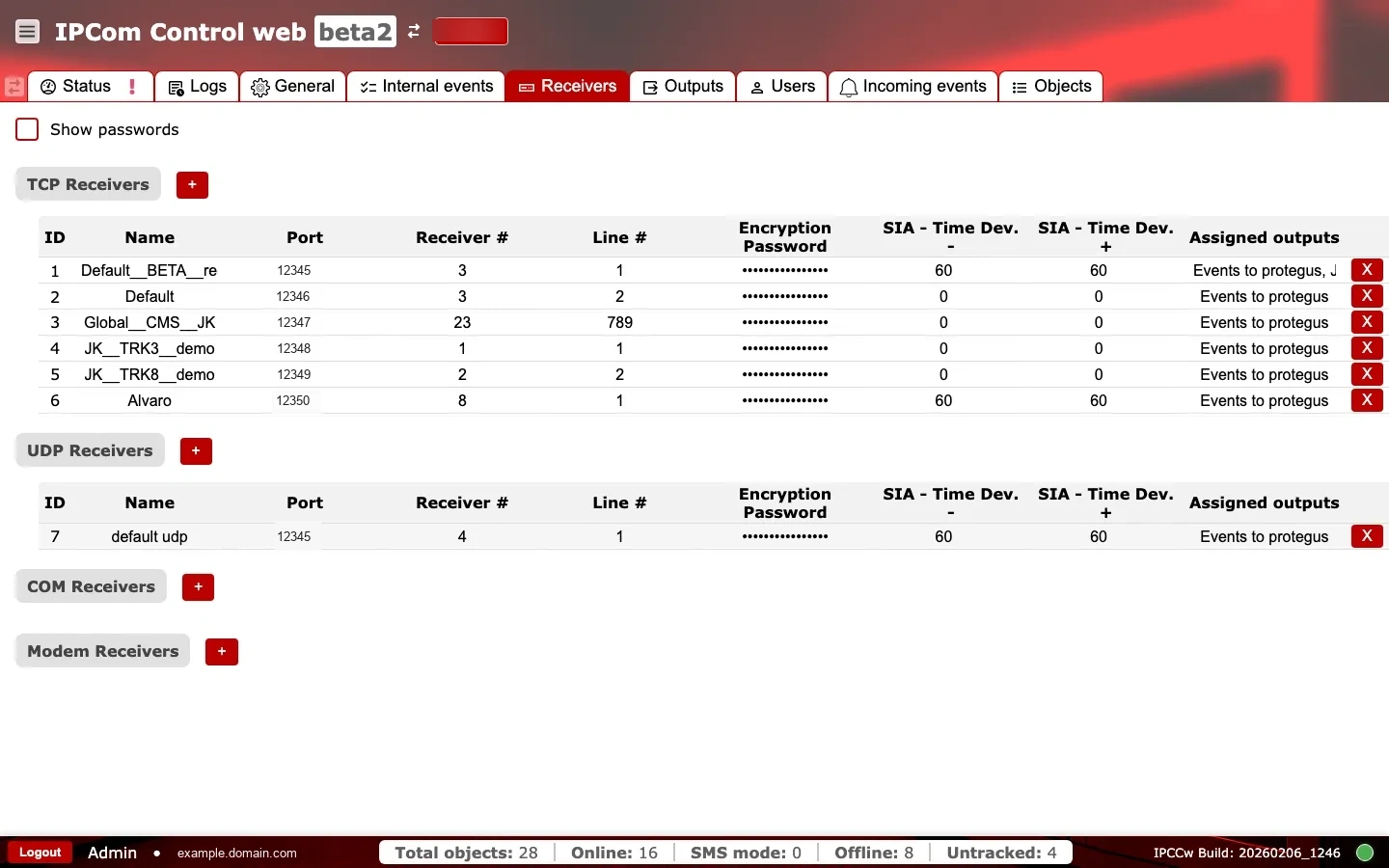

Receivers tab full-screen view

Purpose: Configure receiver endpoints (TCP, UDP, COM, and Modem) that accept incoming device traffic and define routing parameters.

1. When to use

  • When onboarding a new receiver endpoint or changing listening ports.
  • When routing identifiers or encryption settings change.

2. Sections and why they matter

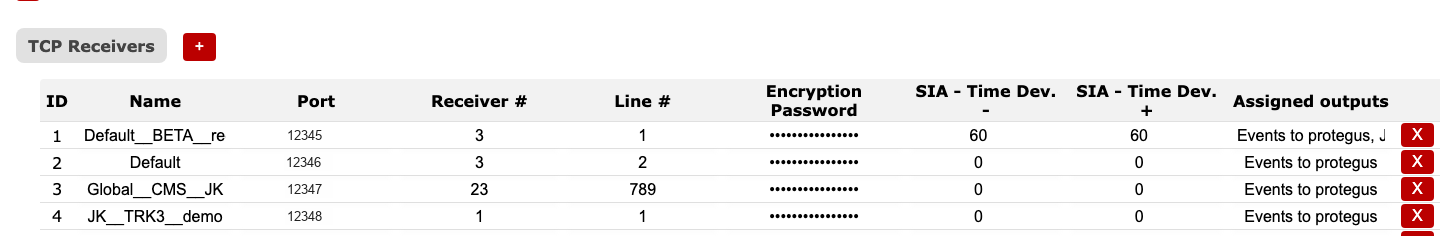

2.1 TCP Receivers

Defines TCP listening endpoints. Port controls where devices connect. Receiver # and Line # are routing identifiers used by downstream systems. Encryption Password protects encrypted traffic. SIA - Time Dev. fields define allowed time deviation thresholds for the SIA protocol (negative and positive).

Use consistent receiver/line mapping with outputs and CMS expectations.

Receivers tab TCP Receivers section

Operational checks and actions:

  • Monitor: active ingest drops after port change. Alert cue: sessions fall to zero in Status.
  • Monitor: line/receiver remaps without CMS change control. Alert cue: events routed to wrong tenant/partition.
  • Confirm: TCP ports must be 1..65535.
  • Confirm: TCP ports must be unique in TCP receiver set.
  • Confirm: receiver id is unique and greater than 0; receiver name is not empty.
  • Confirm: encryption password length is exactly 6 or 16 characters.

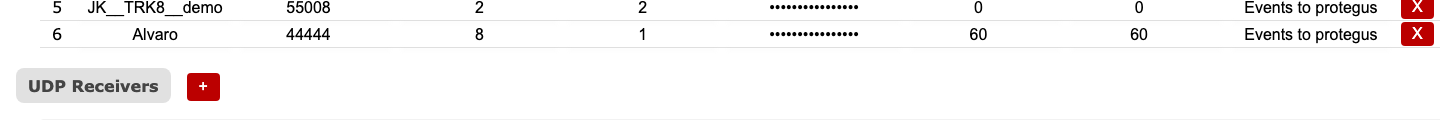

2.2 UDP Receivers

Defines UDP listening endpoints. Use this when devices report over UDP. Field meanings mirror TCP receivers, with the same routing identifiers.

Receivers tab UDP Receivers section

Operational checks and actions:

  • Monitor: UDP packet ingest mismatch with expected fleet protocol. Alert cue: active devices show no events.
  • Confirm: UDP ports must be 1..65535.
  • Confirm: UDP ports must be unique in UDP receiver set.

2.3 COM Receivers

Defines serial (RS232/COM) receivers for local integrations. These are typically used when hardware or legacy panels report over serial links.

Receivers tab COM Receivers section

Operational checks and actions:

  • Monitor: COM receiver enabled with missing physical serial connectivity. Alert cue: no incoming events from serial panels.
  • Confirm: COM receiver port_id references an existing COM terminal.

2.4 Modem Receivers

Defines modem-based receivers for SMS or dial-up style traffic. Use this when SMS or modem channels are part of the deployment.

Receivers tab Modem Receivers section

Operational checks and actions:

  • Monitor: modem receiver route churn during outage windows. Alert cue: SMS events missing or delayed.
  • Confirm: modem receiver port_id references an existing COM terminal.
  • Confirm: modem encryption password length is 6 or 16 characters.

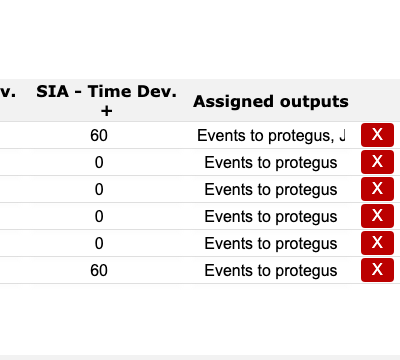

2.5 Assigned outputs and removal

The Assigned outputs column shows which outputs are linked to each receiver. The red X action removes a receiver entry, so use it only with explicit approval.

Receivers tab Assigned outputs section

Operational checks and actions:

  • Monitor: receivers have no assigned outputs. Alert cue: ingest works but no downstream delivery.
  • Monitor: accidental delete action (X) during active operations. Alert cue: sudden receiver disappearance.
  • Confirm: every active receiver has at least one intended output mapping.

3. Networking notes

  • Receiver tabs define inbound endpoints (device -> IPCom).
  • Output tabs define outbound destinations (IPCom -> CMS/automation).
  • When changing receiver ports, update firewall and NAT rules before switching production traffic.
