Innerrange Inception with GT/GT+/GET quick setup

Descargar PDF
GT product image
GT
GT+ product image
GT+
GET product image
GET

Short wiring and programming steps to connect the GT/GT+/GET communicator to an Innerrange Inception panel using serial connection, then enroll the system in Protegus2. Use this alongside the full manuals for all other settings. (Terminal labels differ slightly between GT/GT+/GET, but the connections are the same.)

Caution

Install and service only by qualified personnel. Disconnect power before wiring. Unauthorized changes void warranty.

1. Prerequisites

  1. GT/GT+/GET firmware 1.21, SIM inserted, PIN disabled, data plan active.
  2. Innerrange Inception panel with internet access and firmware version 2.3.0.3507-r0 or higher.
  3. Inner Range USB cable, part number 993030USB.
  4. CMS account number if reporting to CMS.
  5. Protegus2 company/installer account and communicator IMEI.

2. Wiring

Follow the schematic below to connect the communicator to the panel:

GT/GT+/GET terminal Innerrange Inception panel / cable Notes
+12V DC VOUT + Panel power
-12V DC 0V and black wire from cable 993030USB Panel ground
CLK green wire from cable 993030USB Serial connection
DATA white wire from cable 993030USB Serial connection

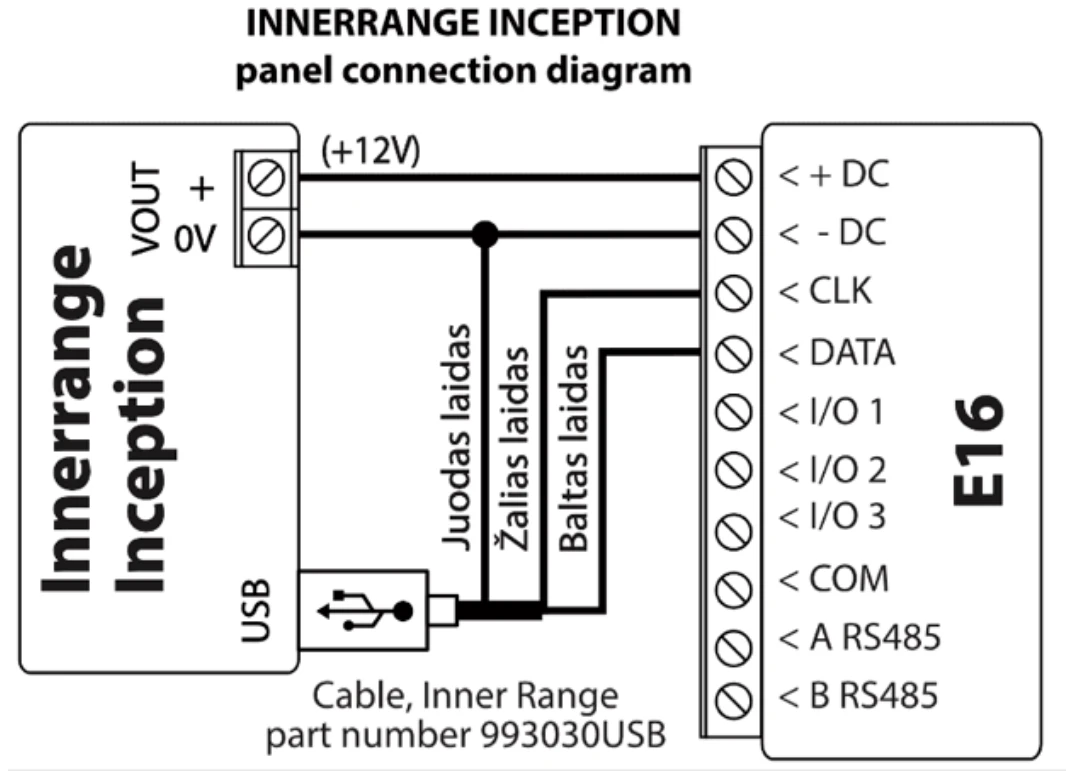

GT+ Innerrange Inception wiring diagram

3. Programming the Innerrange Inception Alarm Panel

  1. Make sure the Innerrange Inception panel has firmware version 2.3.0.3507-r0 or higher and is connected to the internet.
  2. In a browser, connect to https://skytunnel.com.au/inception/SERIALNUMBER, where SERIALNUMBER is the serial number printed on the panel enclosure.
  3. Open Configuration > General > Alarm Reporting.
  4. In the 3rd Party Device Configuration section, set the panel as shown below.

Innerrange Inception alarm reporting settings

  1. Tick Enable 3rd Party Device Reporting.
  2. Set 3rd Party Device Type to Trikdis.
  3. Set Serial port to Serial Port 1 (Plugged In, In Use By 3rd Party Device).
  4. Save settings and exit the application.

4. Add system to Protegus2

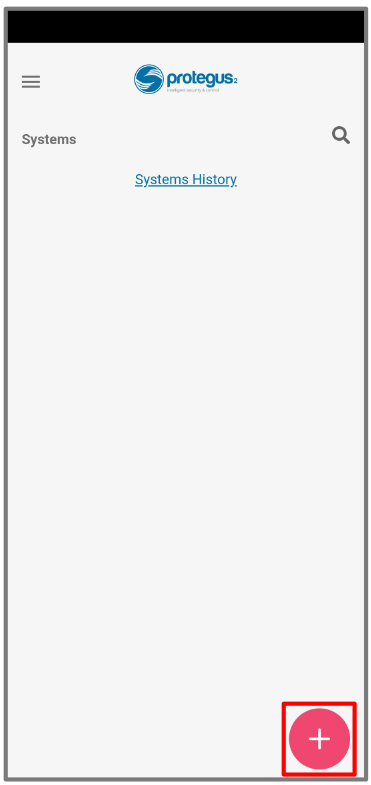

Step 1. Tap Add new system. Add new system

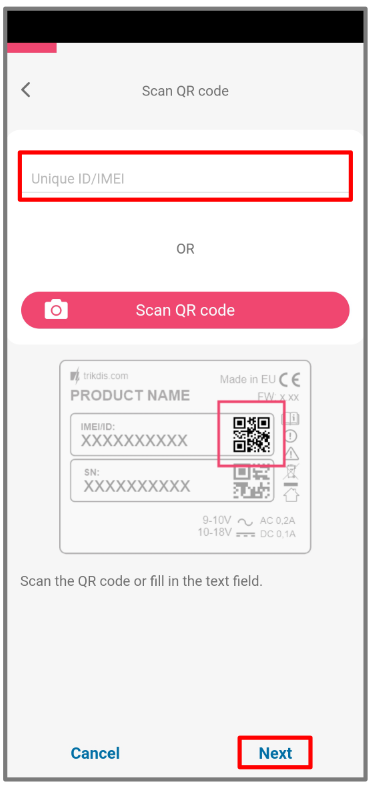

Step 2. Enter the communicator IMEI, tap Next. Enter communicator IMEI
Step 3. Select security company. Select security company
Step 4. Choose Innerrange.
Step 5. Choose Inception.
Step 6. Enter Object ID and Module ID, tap Next.

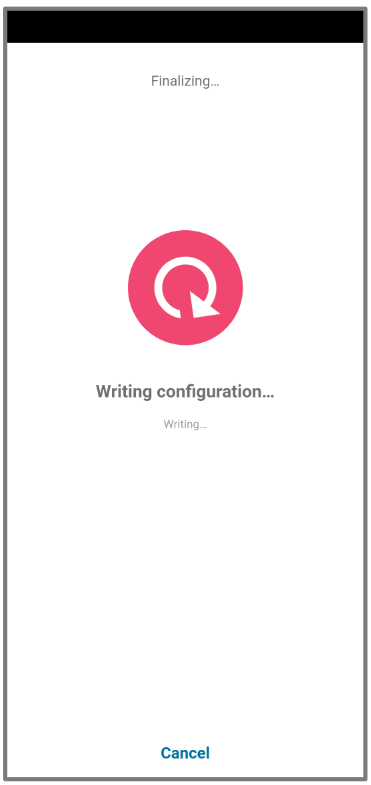

Step 7. Wait while data is written. Wait while data is written

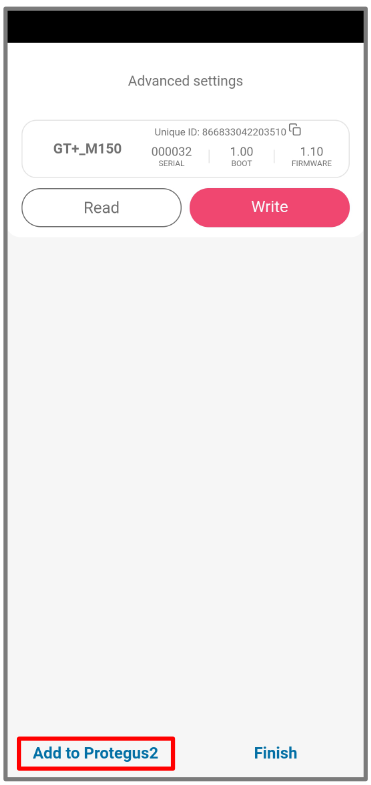

Step 8. Tap Add to Protegus2. Add to Protegus2

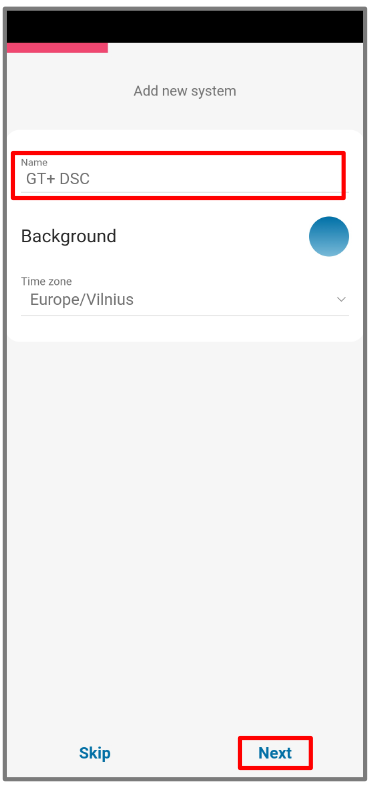

Step 9. Enter system Name, tap Next. Enter system name

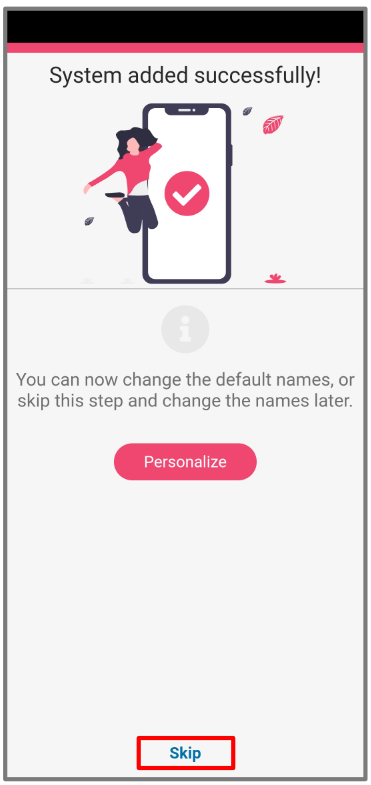

Step 10. Tap Skip. Skip user setup

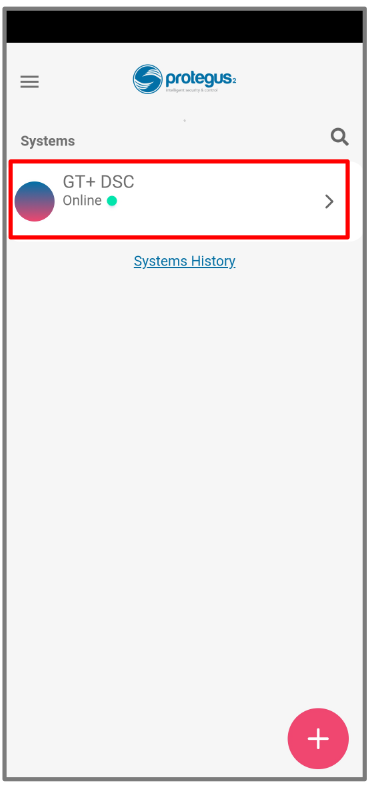

Step 11. Tap on system. Open the added system

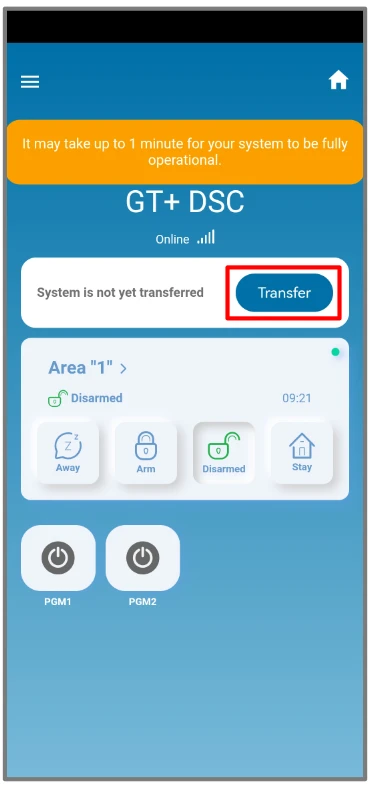

Step 12. Wait 1 minute for completion and tap Transfer. Transfer system

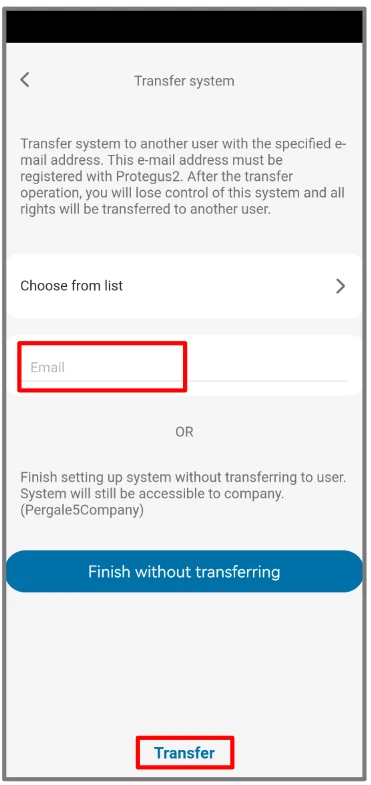

Step 13. Enter the e-mail of the user to whom the installer will transfer the system. Tap Transfer. Enter user e-mail

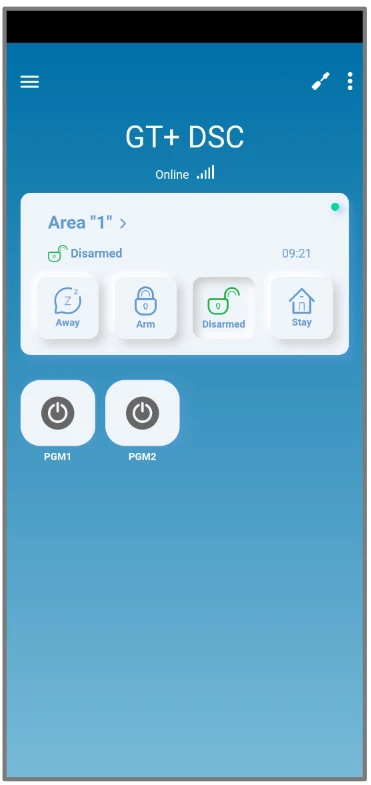

Step 14. The system will appear in Protegus on the user's phone. System added in Protegus2

5. System check

Tip

After completing the setup and installation perform a system check:

  1. Create an event:
  • by arming/disarming the system with the control panel's keypad.
  • by triggering a zone alarm when the security system is armed.
  1. Make sure that the event arrives to the CMS (Central Monitoring Station) and the Protegus2 app.
